Lowbed semi trailer

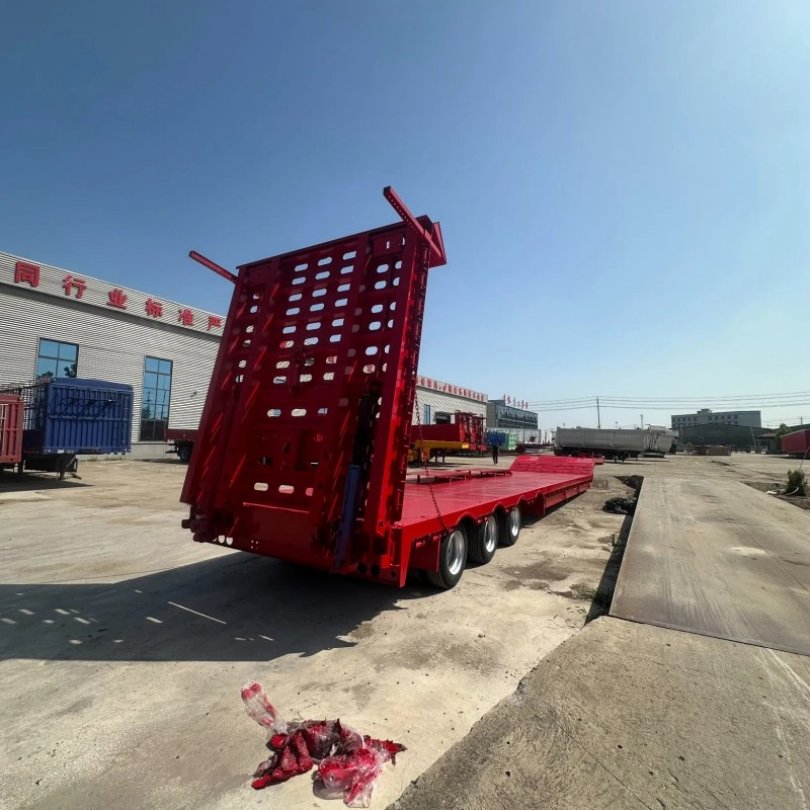

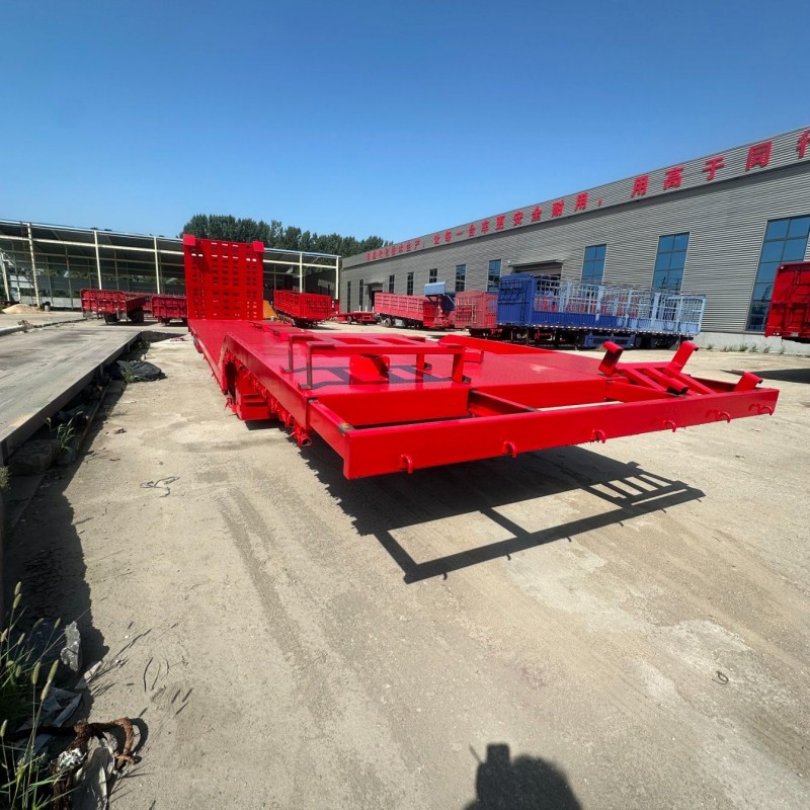

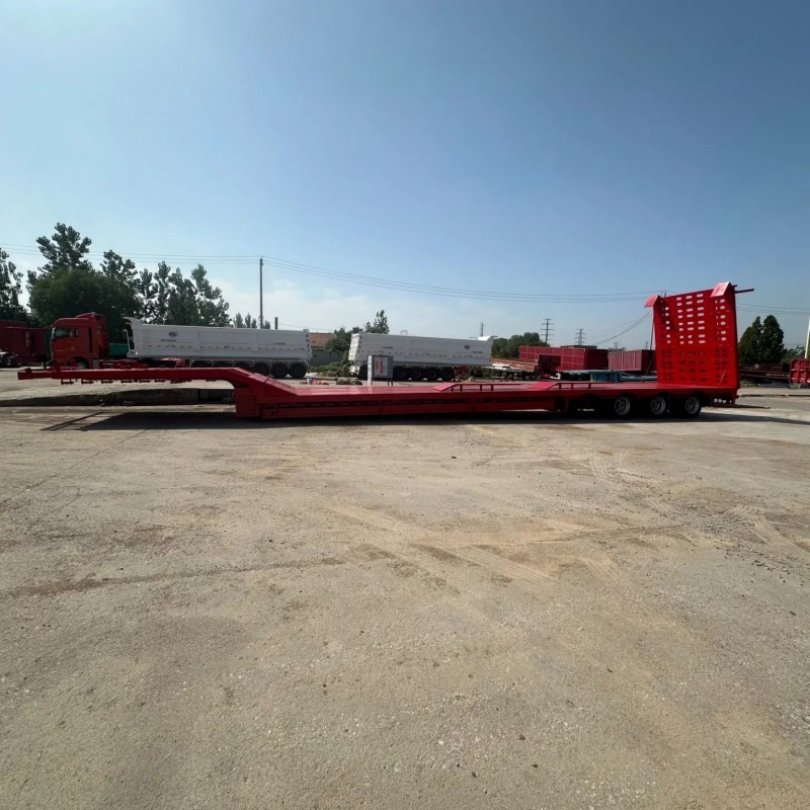

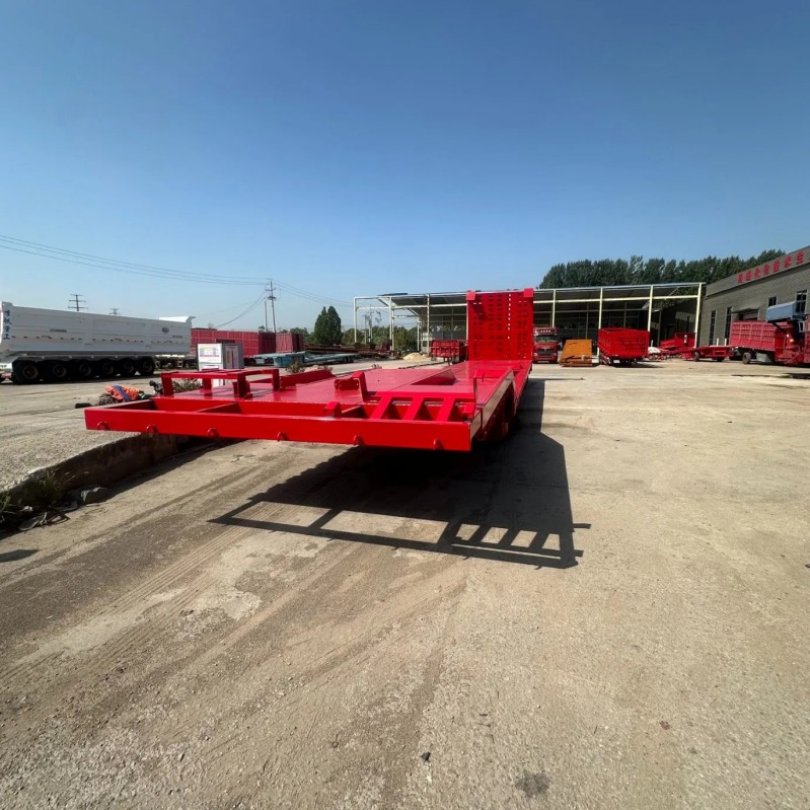

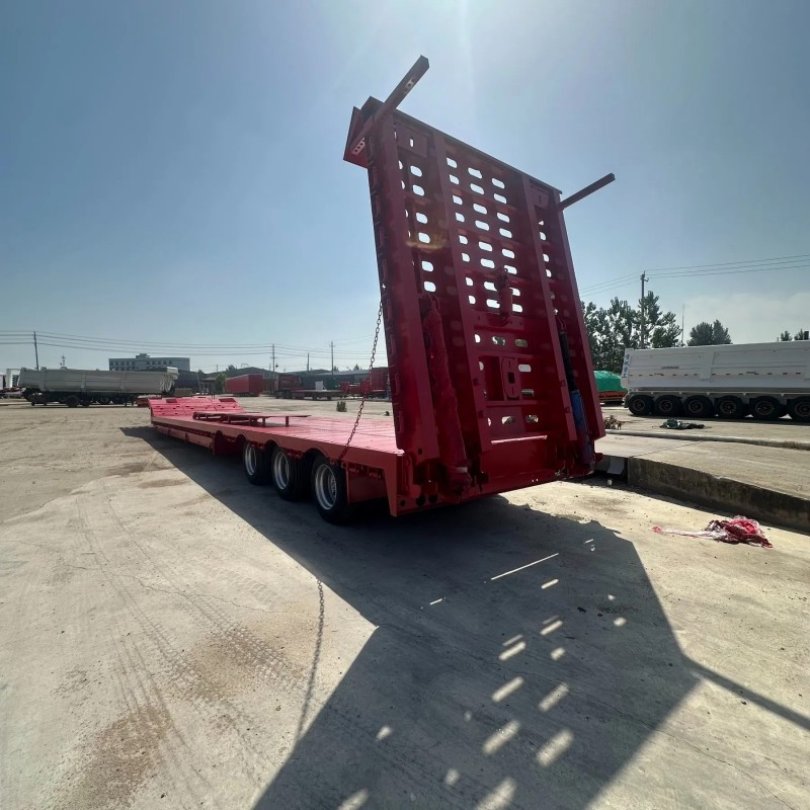

Our high - quality lowbed semi trailer is engineered for reliability, efficiency, and adaptability in transporting heavy and oversized cargo, such as construction machinery, industrial equipment, and large vehicles. Designed with robust structures and advanced suspension systems, this trailer ensures stable loading, secure transportation, and excellent maneuverability. Suitable for various logistics and transportation scenarios, it delivers outstanding performance on different roads and under various weather conditions.
Person in charge: Jim yao
Applications
1.Construction: Transporting excavators, bulldozers, cranes and other construction machinery.
3.Industrial: Carrying large industrial equipment like generators, transformers, and presses.
4.Logistics: Delivering oversized vehicles such as buses, trucks, and specialized vehicles.
5.Energy: Transporting wind turbine components, oil and gas equipment.
6.Mining: Hauling mining machinery and large mining materials.
Key Configurations
Chassis: High - strength steel frame with excellent load - bearing capacity.
Suspension System: Heavy - duty mechanical or air suspension for stable and smooth transportation.
Deck: Low - profile, flat deck with reinforced steel plates to withstand heavy loads.
Hydraulic Ramps: Hydraulically operated ramps for easy loading and unloading of equipment.
Lighting System: Full set of high - visibility LED lights for enhanced safety during day and night transportation.
Dear friends, today I'd like to introduce our low flatbed semi-trailer to you all. It is a capable assistant in transporting heavy and super-large goods, such as excavators and bulldozers used in construction, large generators and transformers in industry, as well as buses and special vehicles in logistics, all of which can be transported smoothly and reliably.
It adopts a high-strength steel frame with an extremely strong load-bearing capacity. It is available with either heavy mechanical suspension or air suspension, providing a smooth and stable ride. The cargo platform is a low-profile flat plate and reinforced with steel plates, capable of withstanding even the heaviest goods. Once the hydraulic ramp is operated, loading and unloading equipment is particularly easy. The braking system uses an advanced air braking system with ABS, which is safe and reliable. Full set of LED lights, ensuring safe transportation both day and night. Whether it's in the fields of construction, industry, logistics, energy or mining, it can perform transportation tasks excellently in all kinds of road conditions and weather. Choosing it is definitely a safe bet!
Technical Specifications
(Custom configurations available upon request.)
Lowbed semi trailer | |
Spec | 15500*25500*3330mm Customizable, subject to the final drawing |
Main beam | Height: 350mm, Top flange: 18mm under flange: 20mm, middle flange: 12+12mm, material: Q550D Customizable, subject to the final drawing |
Side beam | Height: 250mm, Top flange: 8mm, under flange: 8mm, middle flange : 8mm Customizable, subject to the final drawing |
Cross beam | Bending steel, 5mm match with 4mm Customizable, subject to the final drawing |
Draw plate | Thickness:14mm, dovetailed type Customizable, subject to the final drawing |
Electric system | Voltage: 24V, socket: in line with the Chinese national standard seven-core socket, LED lights, wiring harness: 7-core waterproof wiring harness. |
Remark | We can design model according to client's requirement |
