Advantages of Low Bed Semi-Trailers:
- Ideal for Oversized Loads: Can transport tall, wide, or heavy equipment that cannot be carried on standard trailers.
- Versatility: Suitable for a wide range of industries, including construction, mining, and energy.

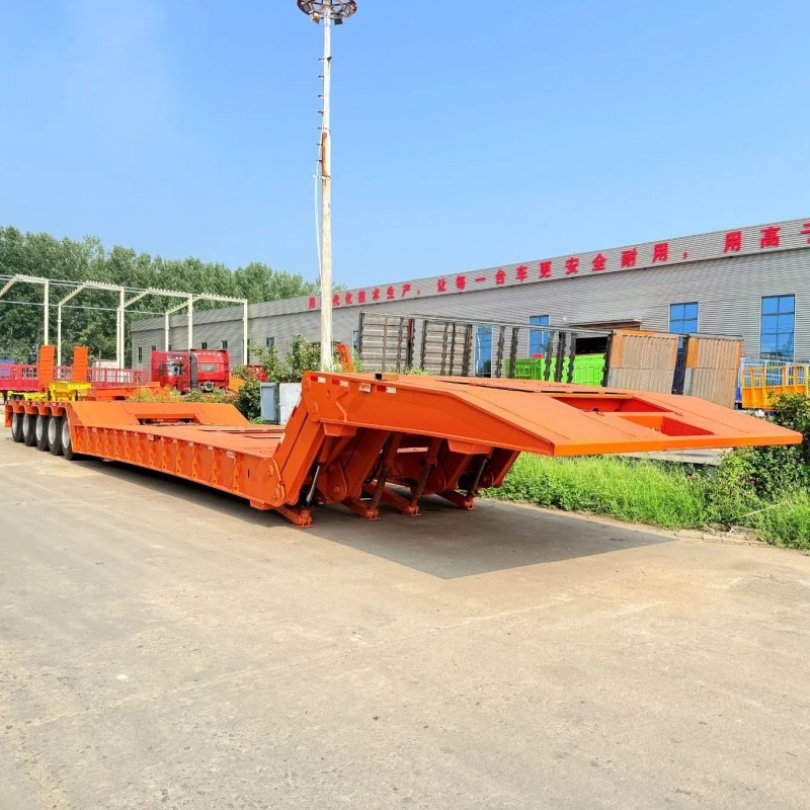

- Efficient Loading/Unloading: Hydraulic ramps and detachable gooseneck sections make it easier to load heavy machinery.
- Compliance with Height Restrictions: Keeps the overall height of the load within legal limits for road transport.
Person in charge: President Gu
Technical Specifications
(Custom configurations available upon request.)
Description | Diesel Engine Power Easy Loading Adjustable Goose Neck Low Loader Deck Semi Trailer |
Dimension(mm) | 9000-19750*2550-3500*1300 |
Vehicle Weight | 8.8T-15T(Hydraulic oil and accessories included) |
Loading Capacity | 70-120T |
King Pin | 2"(50mm)/3.5"(90mm) |
Axle | 4/5/6*13T FUWA Axles |
Tire | Vacuum tire 12.00R20 |
Main Beam Spec | T700 Steel, Height:500mm, Plate Thickness:10-18mm |
Side wall thickness | 5-6mm |
Bottom plate thicknes | 6-8mm |
Landing Gear | Sing side operation,heavy duty |
Suspension System | AIR suspension optional |
Steel leaf spring | 16mm*120*10PCS |
Braking System | Dual line pneumatic brake,with hose and connector |
ABS | Optional |

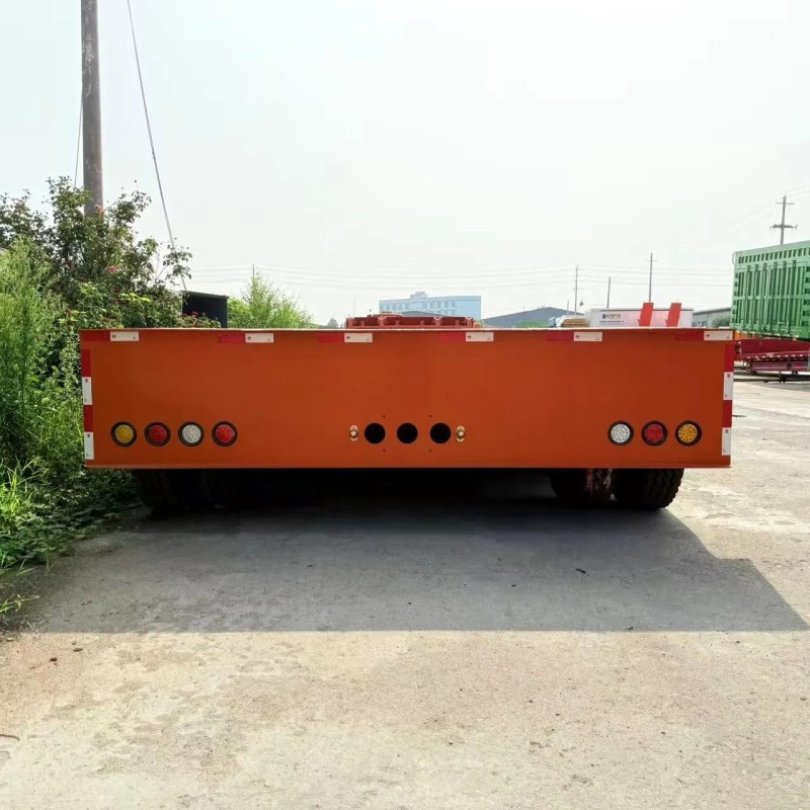

Electronic System | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Painting | Complete chassis sand blasting to clean rust, 1coat of Environmentally anticorrosive prime, then 2 Topcoats, at last temperature baking varnish. |
MOQ | 1 Unit |
