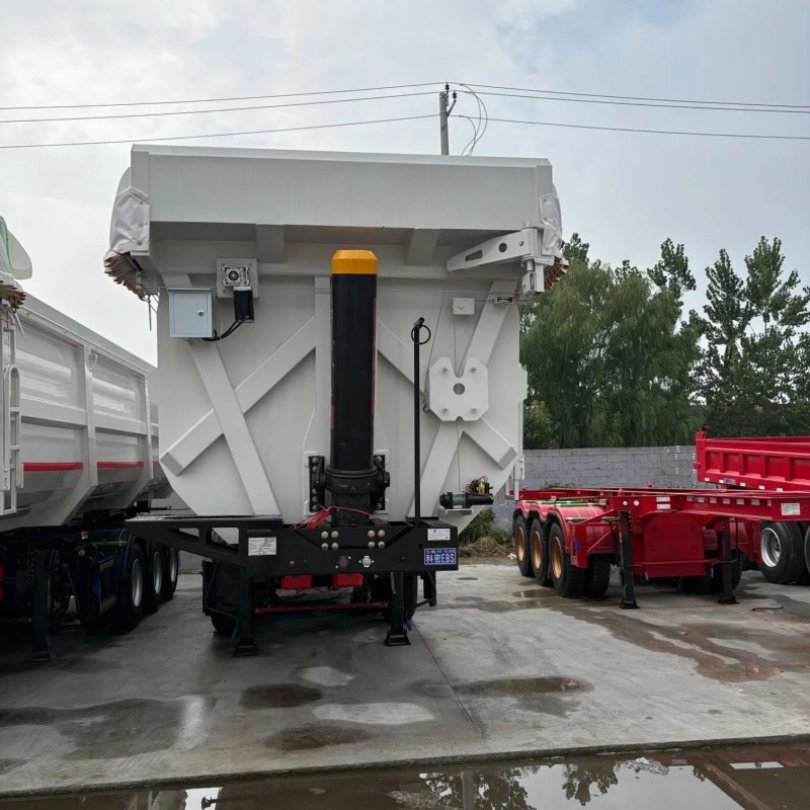

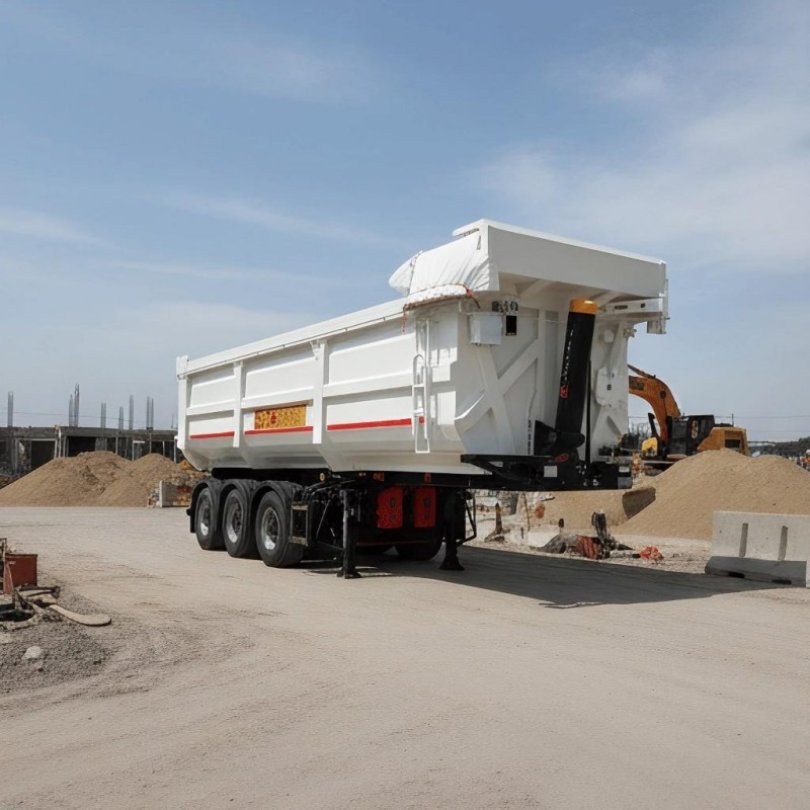

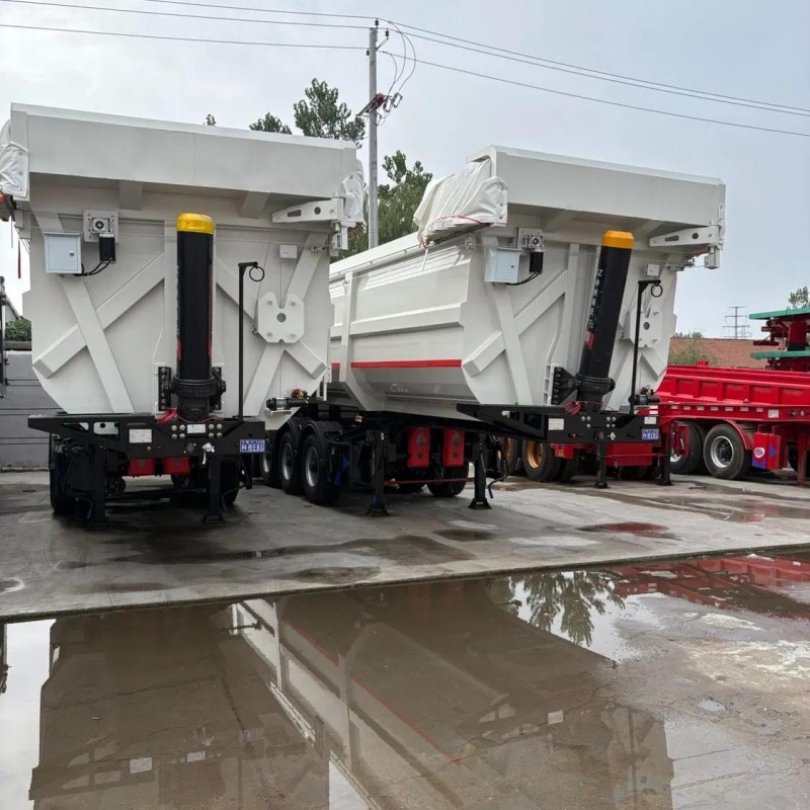

Side self-dump semi trailer
Dump semi trailer adopt advanced design concept. For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.
Person in charge: President Gu
Technical Specifications
(Custom configurations available upon request.)
Product name | LFC9401ZC Self-Dump Semi Trailer |
Overall dimensions | 13000,12500,12000,11500,11000×2550,2500×3800,3700,3600,3500,3400,3300,3200,3100,3000,2900,2800,2700,2600,2500 |
Carriage dimensions | 12850,12350,11850,11350,10850×2490,2470,2450,2430,2400,2380,2350,2330,2300×600,550,500,450,400,350 |
Cross weight | 40000 |
Rated load capacity | 33020,33400,33650 |
Curb weight | 6980,6600,6350 |
The saddle bears the load | 16,000 |
Front/Rear Suspension | /2400,-/2300,-/2200,-/2100,-/2000,-/1900,-/1800,-/1700,-/1600,-/1400,-/1300 |
Approach/departure Angle | /11,-/12,-/13,-/15,-/16,-/18,-/20,-/23,-/26,-/30,-/35 |
Axle load | 24000(3 axles) |
anti-lock braking system | Optional |
Number of axles | 3 |
Wheel base | 6880+1310+1310,6780+1310+1310 |
Number of tires | 12 |

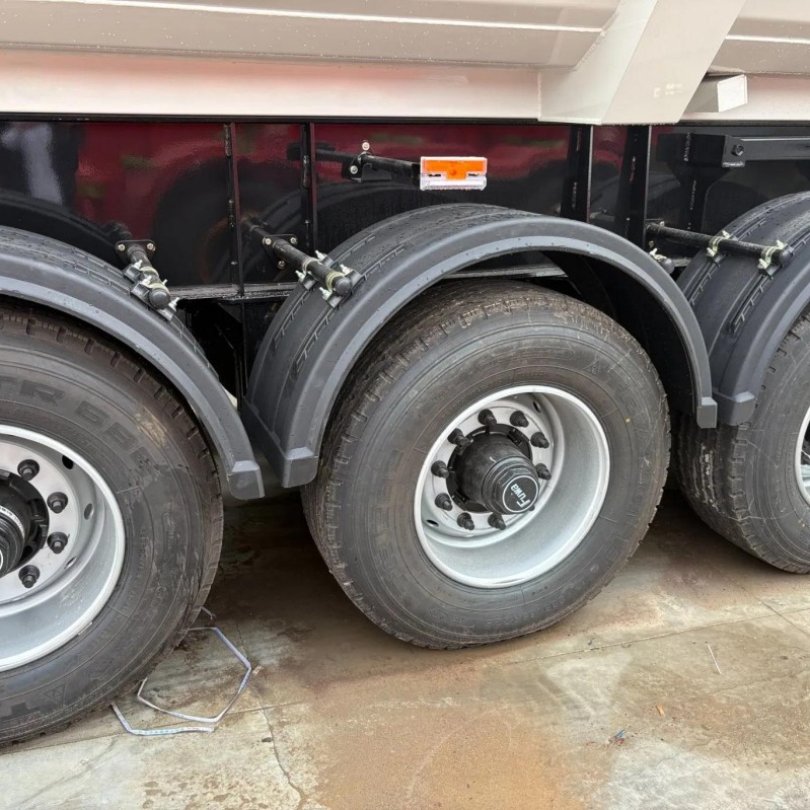

Specific of tires | 11.00R20 12PR,12R22.5 |
Unloading method | Self-Dump |
The number of doors on each side of the side panel of the carriage | Optional |
