Every certification is a testament to quality; every honor is a recognition of trust. From ISO international certification and CCC national mandatory certification to over 30 patented technologies and national authorized automobile manufacturing qualification, Lifan Heavy Industry sets the industry benchmark with solid strength.
Shaanxi Automobile Xuande X3000 6*4 reinforced 6 by 4 dump truck
It is equipped with a high - quality engine, such as the WeichaiWP10.300E22 engine, which has high torque, low emissions, strong power, and good economy. The overall gear ratio meets the needs of national highway transportation, and the fuel - saving effect is remarkable.
Person in charge: President Gu

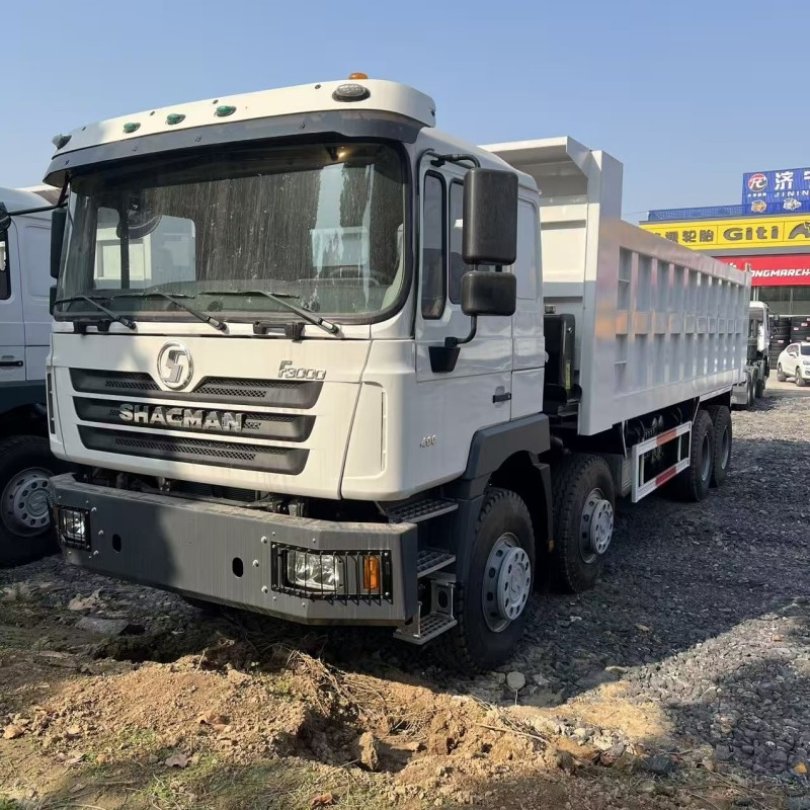

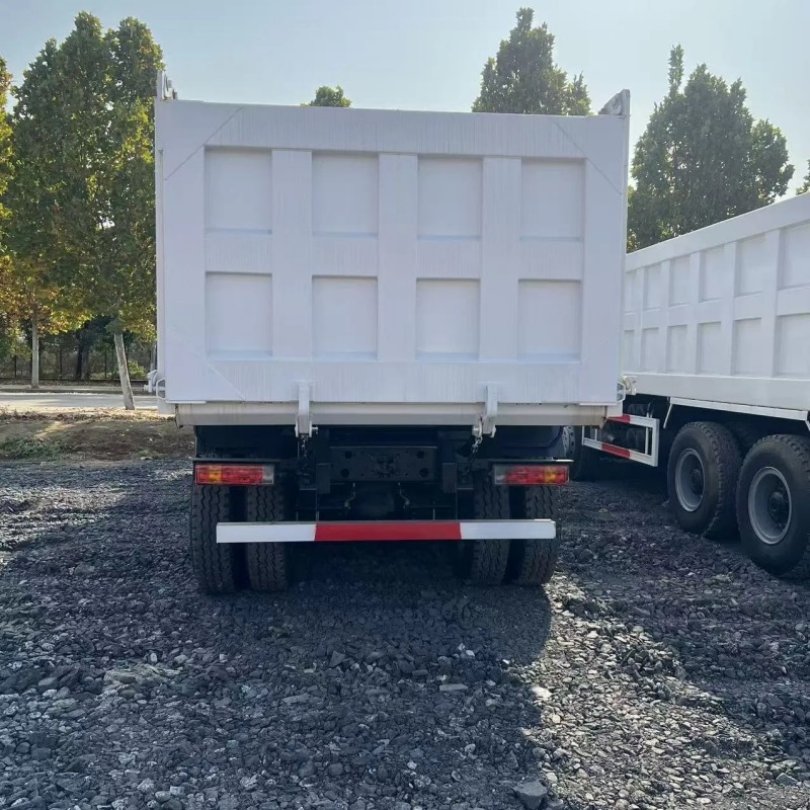

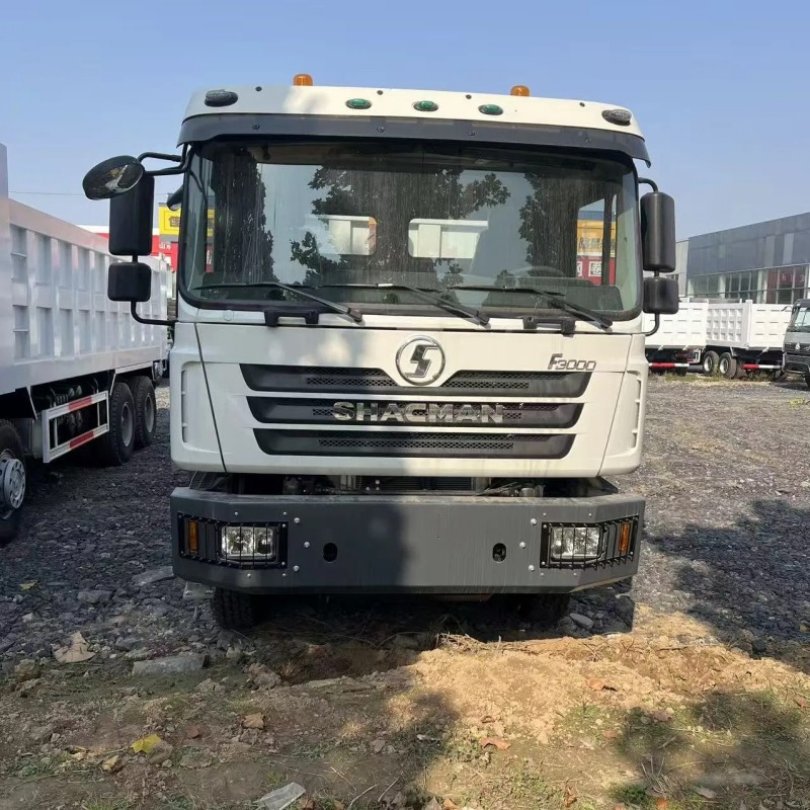

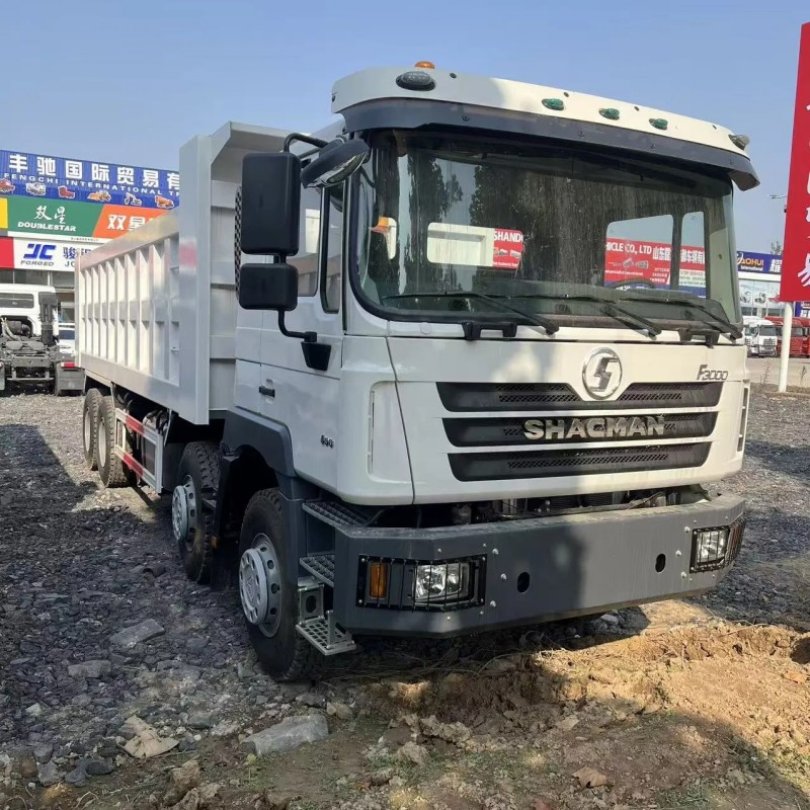

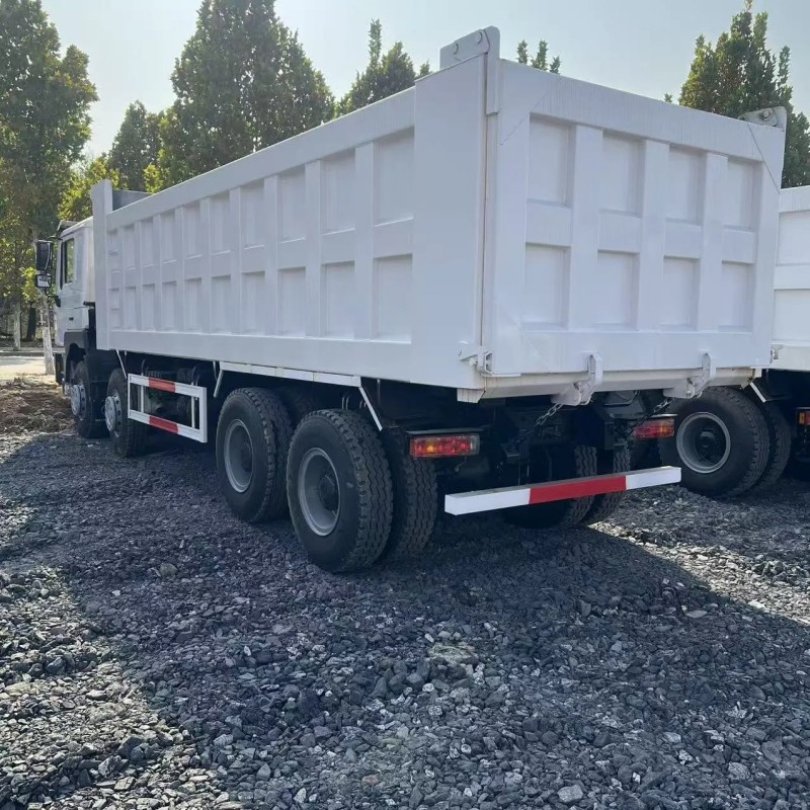

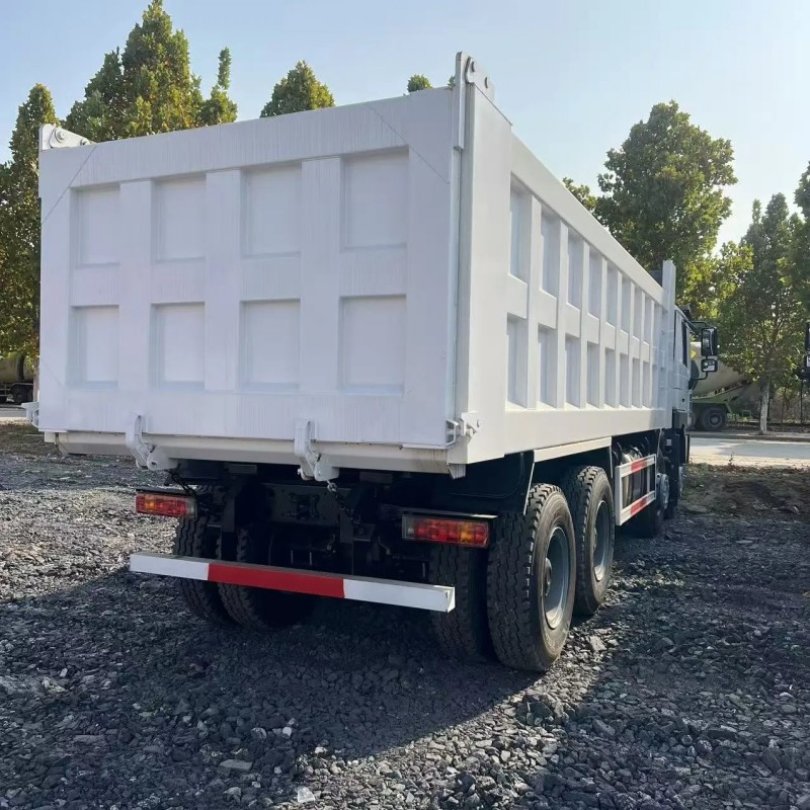

Shaanxi Automobile X50008*4 Reinforced 8 by 4 dump truck | |
Model | SX3255DN324R |
Driving Type | 8×4 |
Wheelbase | 1800 + 2600 + 1350mm |
Truck Length*Width*Height | 8330mm×2550mm×3450mm |
Box Length*Width*Height | 5600mm×2300mm×1500mm |
Maximum Gross Mass | 31000kg |
Vehicle Weight | 13000kg |
Rated Load | 17870kg |
Approach Angle | 16° |
Departure Angle | 23° |
Front Track | 2015mm |
Rear Track | 1850mm |
Engine Model | WP8.350E61 |
Engine Cylinders | 6 |
Displacement | 7.8L |
Maximum Output Power | 257kW |
Maximum Horsepower | 350hp |
Maximum Torque | 1400Nm |
Maximum Torque Speed | 1200 - 1600r/min |
Rated Speed | 2100r/min |
Emission Standard | National VI |
Transmission Model | HW15710L |
Number of Forward Gears | 10 |
Number of Reverse Gears | 2 |
Rear Axle Ratio | 5.73 |
Rear Axle Allowable Load | 17500kg |
Front Axle Allowable Load | 6500/7000kg |
Tire Specification | 11R20 |
Number of Tires | 12 |
Fuel Tank Capacity | 270L |
Cargo Box Form | Self - dumping |
Yangzhuangji Town Industrial Park, Yuncheng County, Shandong Province
