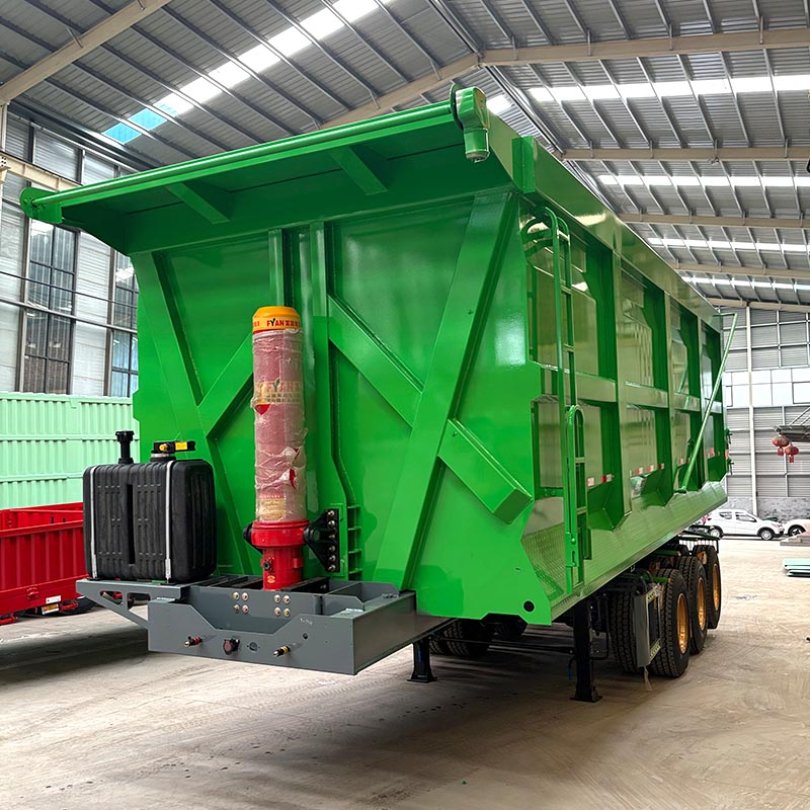

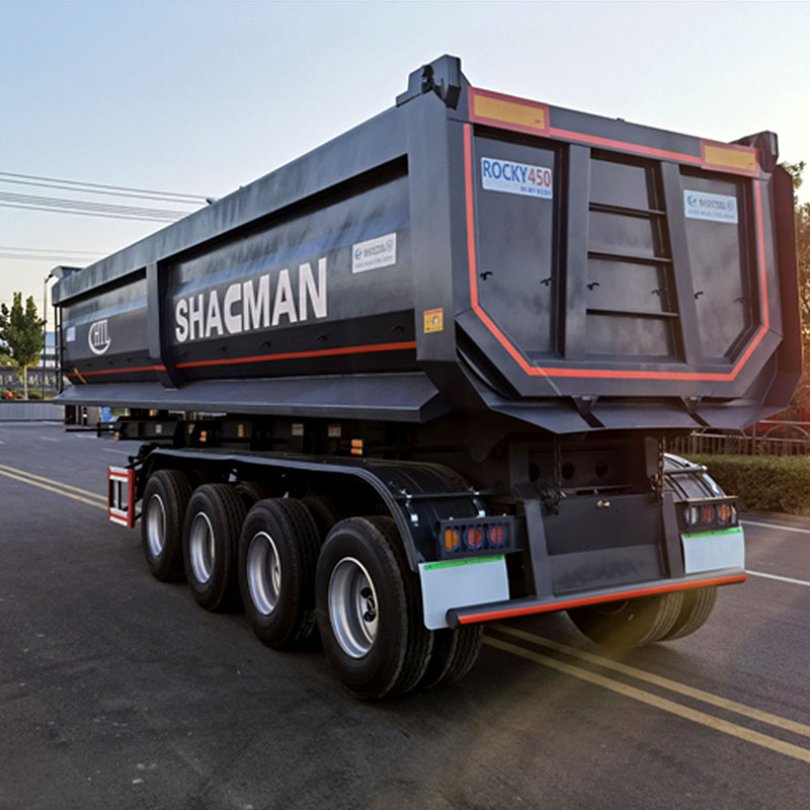

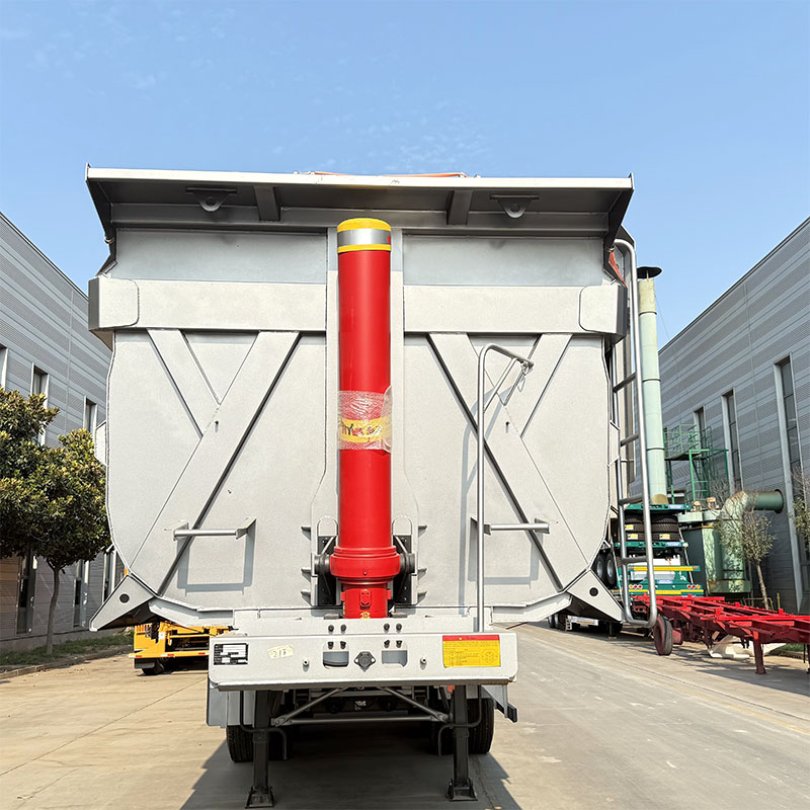

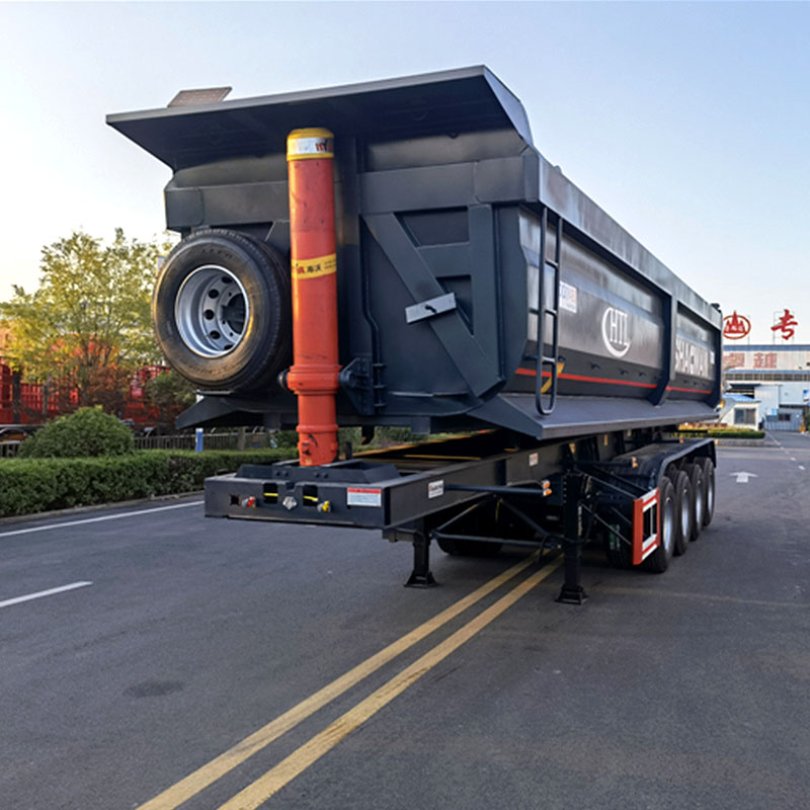

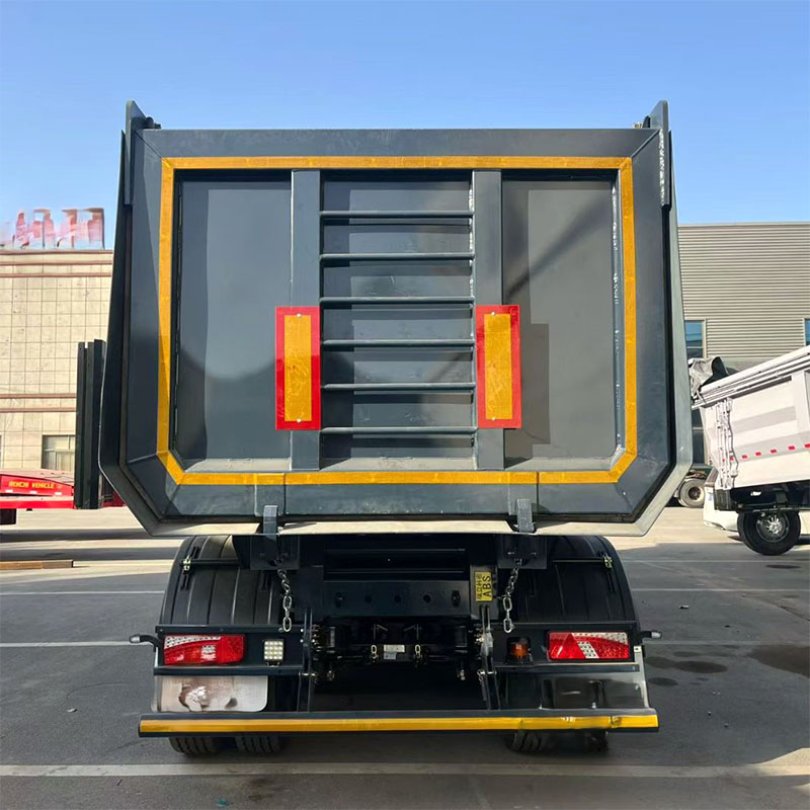

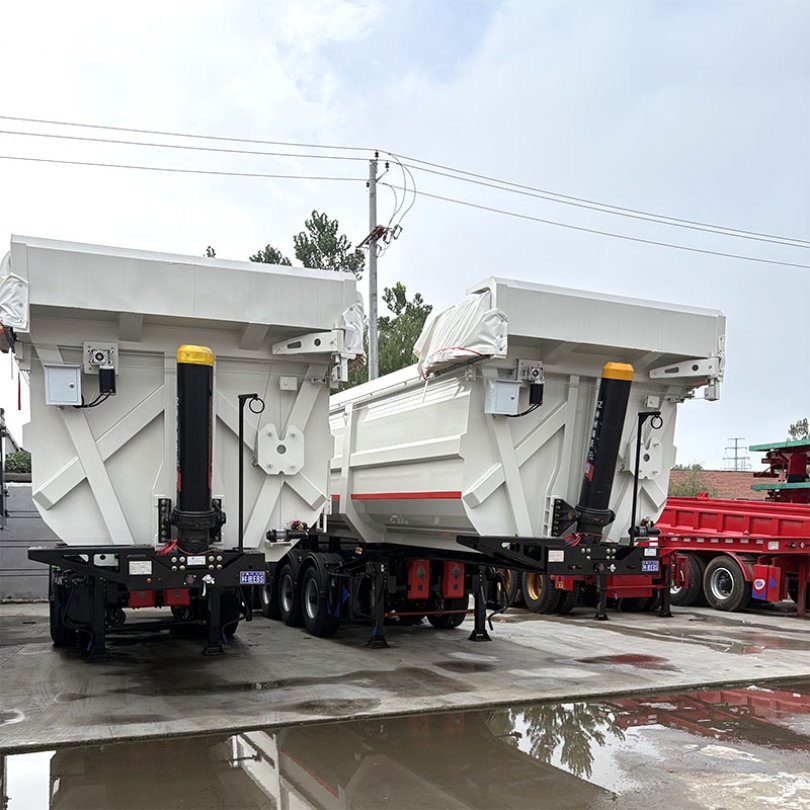

The rear dump semi-trailer is a heavy-duty hydraulic tipping trailer designed for efficient bulk cargo transportation. It is mainly used to transport sand, gravel, stone, coal, construction waste, mineral materials and other bulk goods.
Equipped with a high-strength hydraulic lifting system, the trailer can automatically tilt and unload cargo from the rear quickly and safely. It features a sturdy welded structure, large carrying capacity, good stability and easy operation. Widely used in construction sites, mines, quarries and logistics transportation, it greatly improves unloading efficiency and reduces labor costs.
Person in charge: Jim yao
| Dump semi trailer(customerize and oem service available) | ||||
| Product name | 2 axles dump semi trailer | 3 axles dump semi trailer | 4 axles dump semi trailer | 5-6axles dump semi trailer |
| Size(mm) | 8500*2500*3500 | 10000x2500x3800 | 10500*2500*3900 | 11500*2500*3950 |
| Bucket capacity | 25 cubic meters | 30-40 cubic meters | 40 cubic meters | 45 cubic meters |
| Axles | 2 * 13ton capacity | 3 * 13ton capacity | 4 * 13ton capacity | 5-6 * 13ton capacity |
| (brand optional) | (brand optional) | (brand optional) | (brand optional) | |
| Tipping box | T700 / hardox | |||
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; | |||
| material is q345b steel. | ||||
| Suspension | Mechanical suspension (air suspension optional) | |||
| Leaf spring | 90(w)mm*13(thickness)mm*10 layer or 100mm*12mm*12 | |||
| (special for export market ) | ||||
| Tire | 12R22.5 / 11.00R20 (other size optional) | |||
| Rim | 9.00-22.5 / 11.00r20 (other size optional) | |||
| Kin pin | Jost brand 2.0'' / 3.5'' bolt type king pin(optional) | |||
| Landing gear | 28t double speed jost / taihua brand | |||
| Braking system | Double air chamber ,brake valve,45l air tanks; abs optional | |||
| Electrical | Led light, 7 ways, 24v | |||
| Accessory | One tooling box with a set of standard trailer tool | |||
| Painting | 1.sand blasting processing clean rust. | |||
| 2.coat of anticorrosive primer. | ||||
| 3.coats of finish urethane paint. | ||||
| 4.color as customer choice. | ||||
