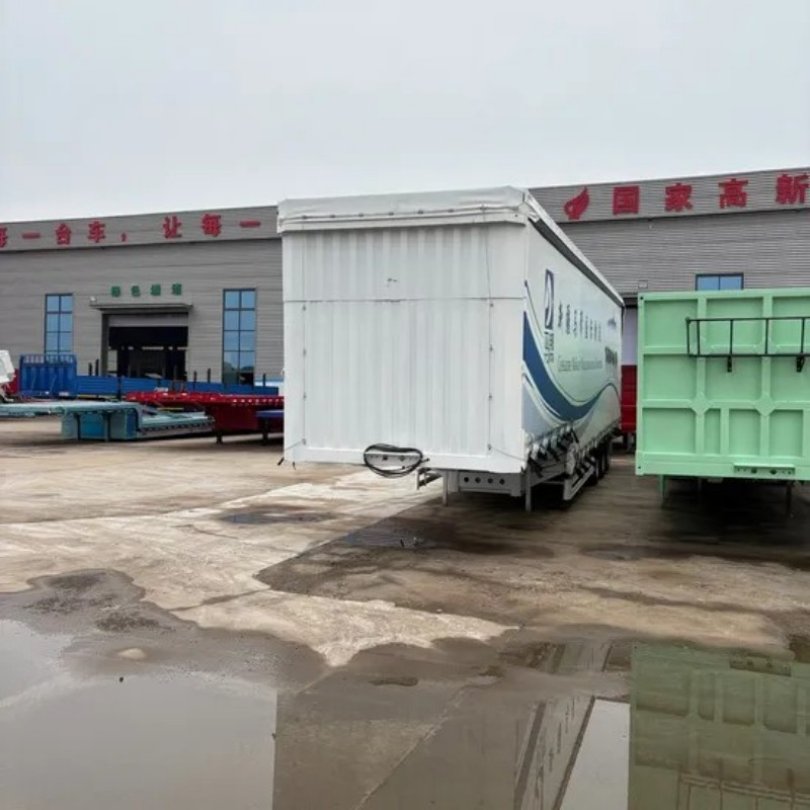

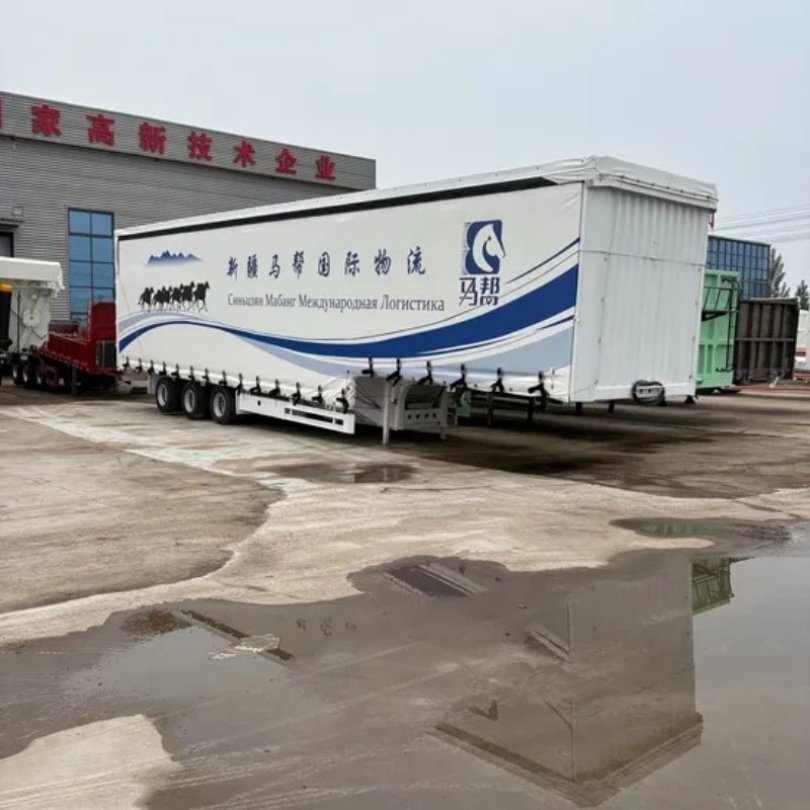

The side curtain semi-trailer
The side curtain semi-trailer is available in 2-axle, 3-axle, or 4-axle configurations. It is equipped with an air suspension system, offers selectable axle brands, and supports customized lengths to meet specific requirements
The Side Curtain Semi Trailer design allows for quick and easy loading and unloading of cargo from the sides of the trailer. This is especially beneficial for large or bulky items that may be difficult to load through the rear of a traditional box trailer.
Person in charge: President Gu
Description | Curtain Side & Backward tipping sidewall semi trailer |
Dimension(mm) | 9000-17500*2550*3000-4000 |
Vehicle Weight | 8.8T-15T(Hydraulic oil and accessories included) |
Loading Capacity | 40-70T |
King Pin | 2"(50mm)/3.5"(90mm) |
Axle | 4*13T FUWA Axles |
Tire | Vacuum tire 12.00R20 |
Main Beam Spec | T700 Steel, Height:500mm, Plate Thickness:10-18mm |
Side wall thickness | 5-6mm |
Bottom plate thicknes | 6-8mm |
Landing Gear | Sing side operation,heavy duty |
Suspension System | AIR suspension optional |
Steel leaf spring | 16mm*120*10PCS |
Braking System | Dual line pneumatic brake,with hose and connector |
ABS | Optional |
Electronic System | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Painting | Complete chassis sand blasting to clean rust, 1coat of Environmentally anticorrosive prime, then 2 Topcoats, at last temperature baking varnish. |
MOQ | 1 Unit |
