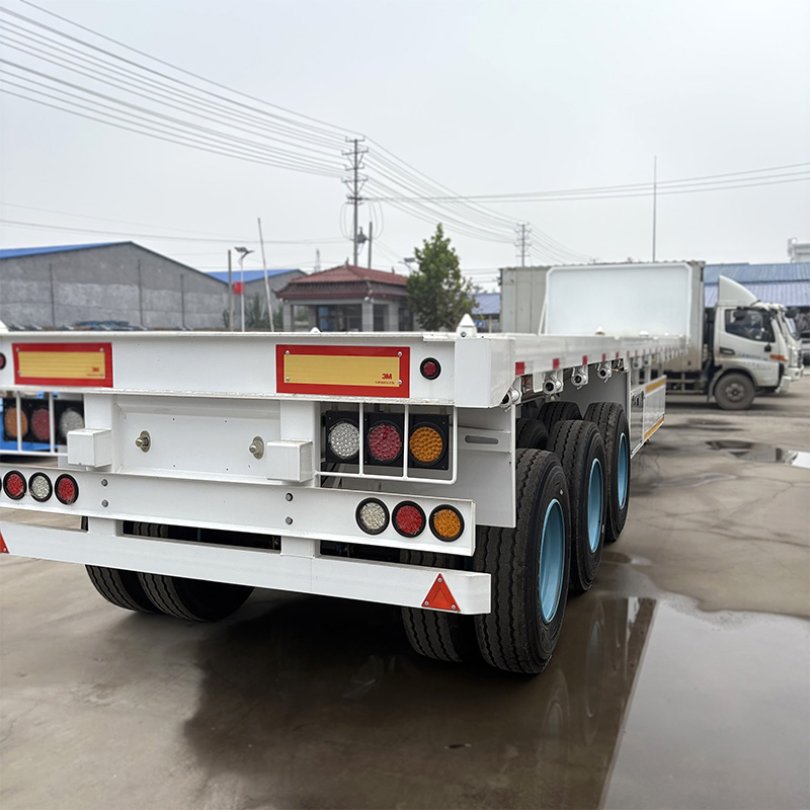

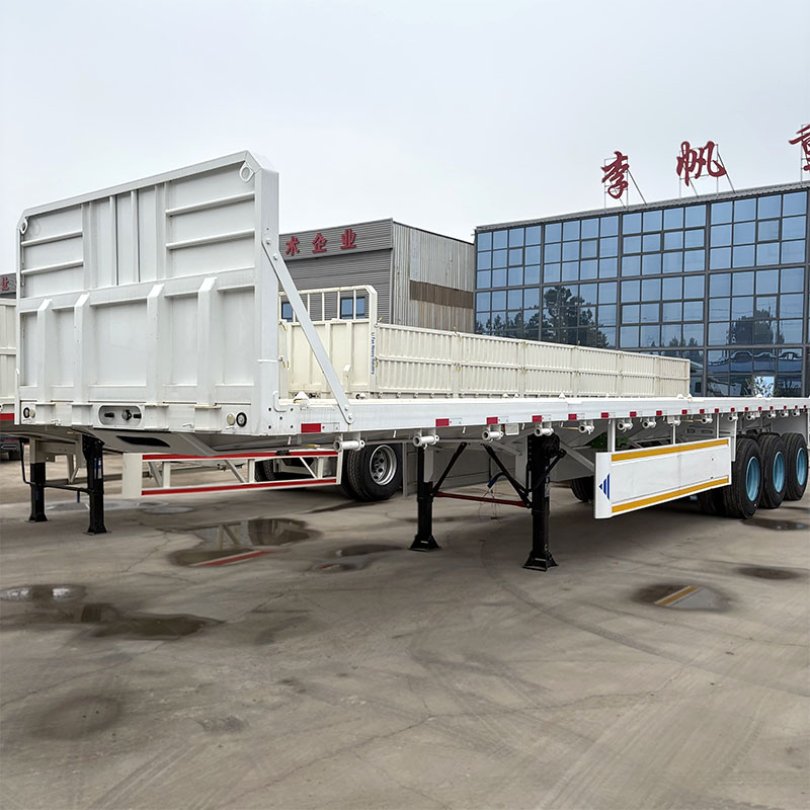

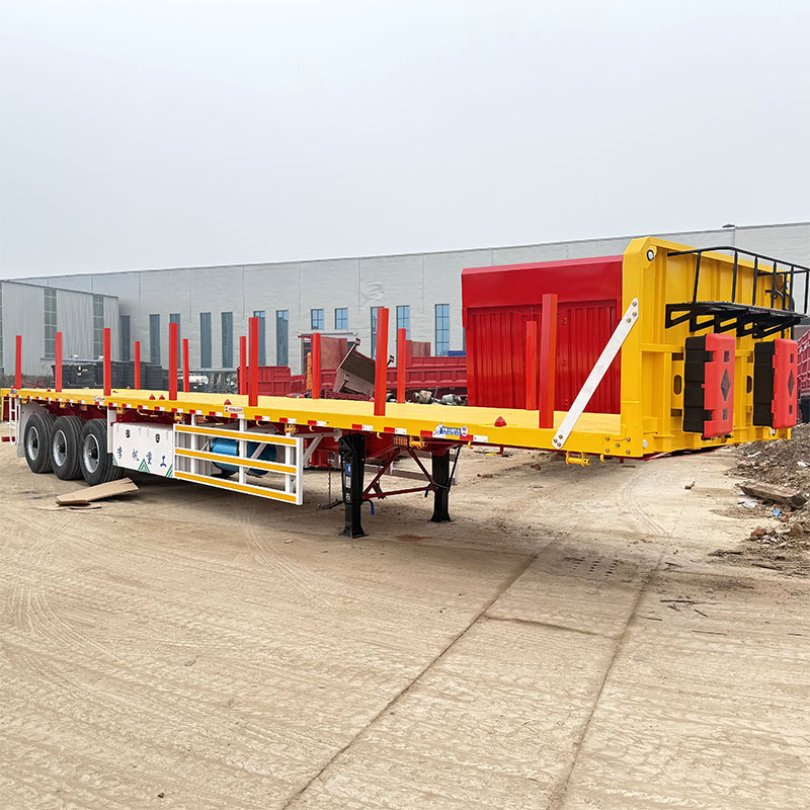

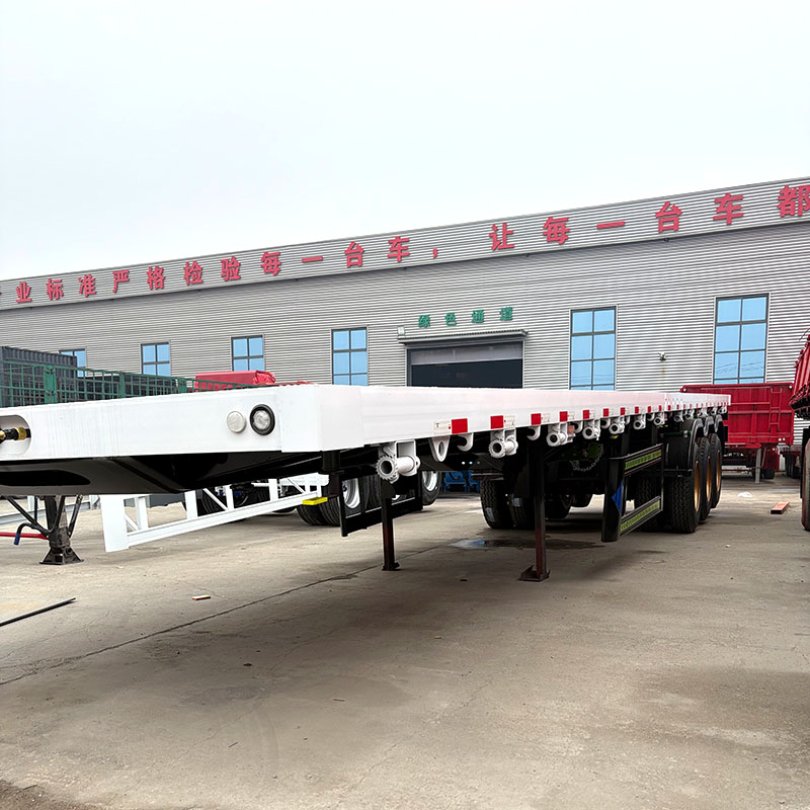

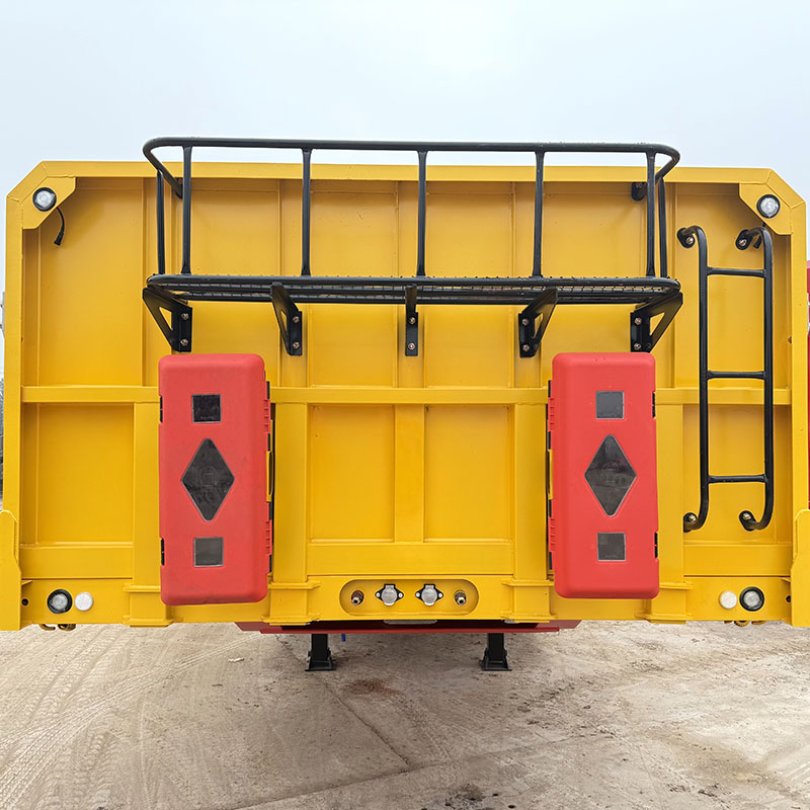

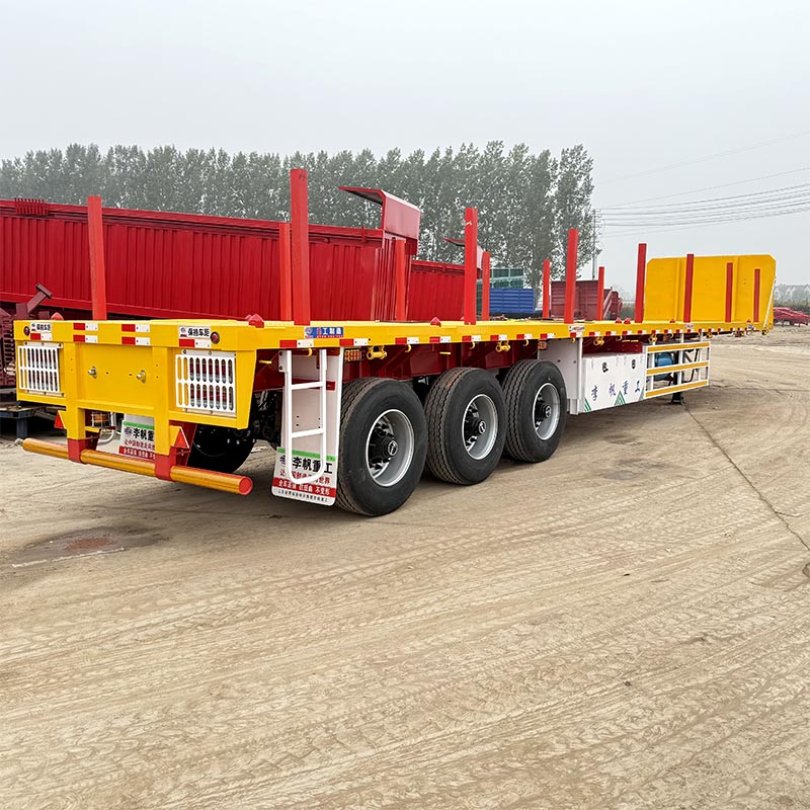

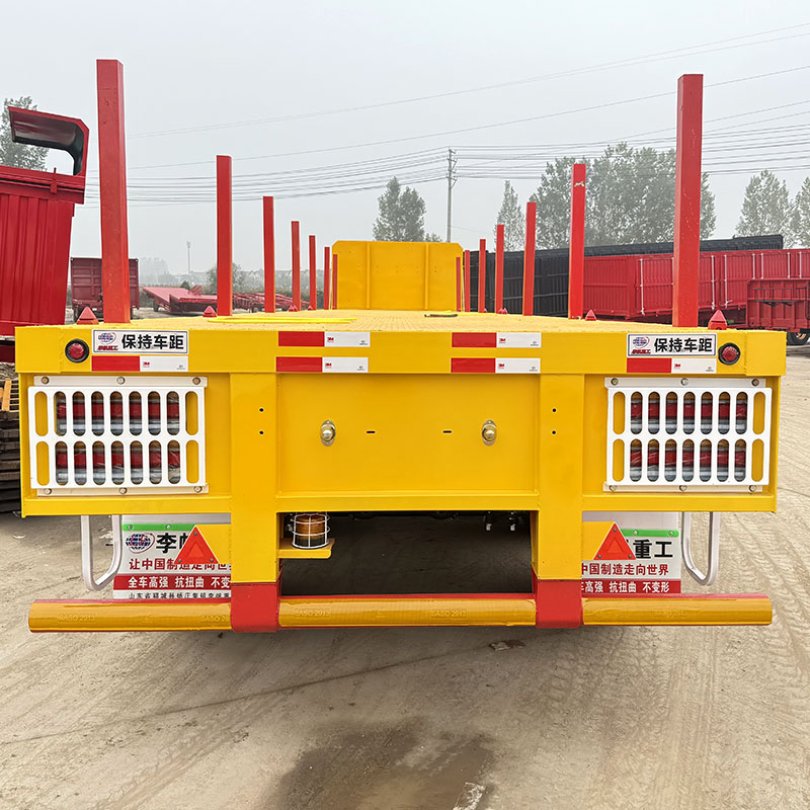

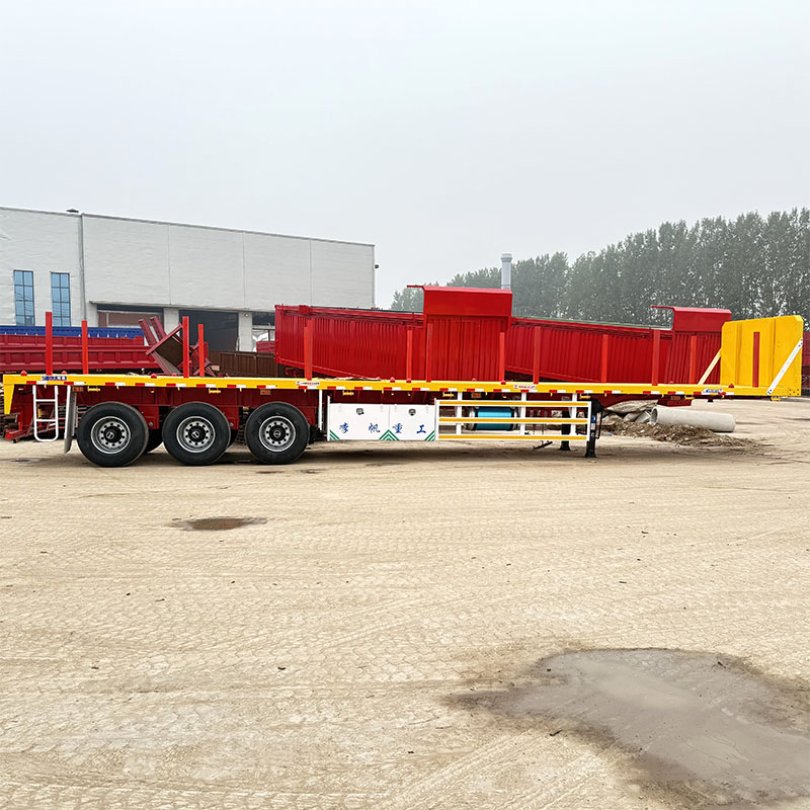

The flatbed semi-trailer is a heavy-duty transport vehicle with an open, flat loading platform and no side walls or roof. It is widely used for transporting containers, steel, machinery, construction materials, large equipment and other over-sized cargo. Featuring a robust structure, stable performance and high loading capacity, it offers convenient loading and unloading from all sides. Suitable for long-distance logistics and heavy cargo transportation, it is one of the most common models in modern road freight.
Person in charge: Jim yao
Technical Specification | |
3axles lower flatbed semi-trailer | |
Overall size | 12980mm*2500mm*1528mm,excluding front baffle,details according to confirmed CAD design card. |
Payload | 50 Tons |
Axle | Factory-customized axles: 13 tons × 3 |
Tyre | Benniu Tire 315/80R22.5*12pcs, 2 spare tires. |
Rim | 9.0-22.5*14pcs with 16mm thickened. |
Leaf spring | 13mm*120mm*10pcs |
Landing gear | JOST brand,Heavy duty landing gear 28T. |
Kingpin | JOST brand,3.5" bolt-on kingpin |
Upper and lower wing plates | 12mm/14mm |
Main beam | Main beam 500mm height,webplate thickness 8mm. |
Side beam | 16# thick-walled channel steel |
Floor | 2.75mm checkered plate |
Electrical system | 24 volt system 7 pin LED light. |
Painting | Complete chassis sand blasting to clean rust.one coat of anticorrosive prime,2 coats of final paint. |
Accessories | One standard tool box,2 spare tire carrier,one shaft head wrench. |
