Item | Standard Details & Customizable Options |

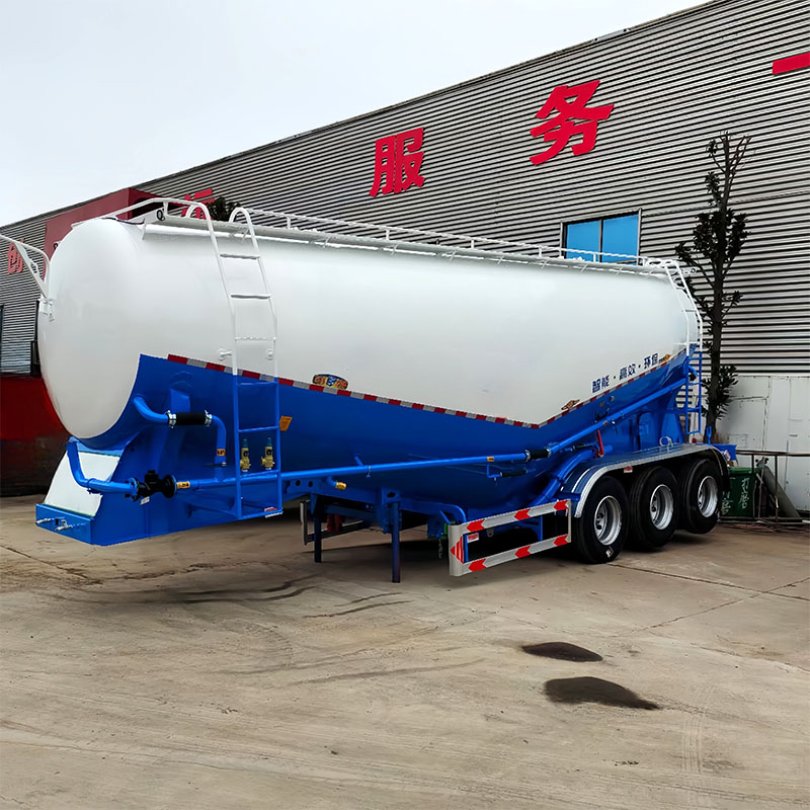

Model | Standard Bulk Powder Semi-Trailer (Custom Model Available) |
Axle Configuration | 3 Axles / 4 Axles (Optional, Customizable per Local Regulations) |
Overall Dimension (L*W*H) | 10500-13000×2500×3900-4000mm (Custom Size Available) |
Gross Vehicle Weight (GVW) | 40,000-50,000kg |
Tare Weight | 9,500-12,500kg (Lightweight Version Optional) |
Rated Payload | 28,000-40,000kg (Matched with Tank Volume & Axle Load) |
Traction Pin | 50# / 90# (JOST Brand Optional, International Universal) |
Landing Gear | Double-Speed Manual / Electric Landing Gear (Heavy-Duty Type) |
Item | Standard Details & Customizable Options |
Effective Volume | 35/40/45/50/55/60/65 CBM (100% Customizable) |
Tank Shape | Horizontal Round / W-Type Horizontal (Standard, Low Residue) |
Tank Material | Q235/Q345 Carbon Steel (Standard) / Aluminum Alloy (Lightweight Optional) |
Tank Thickness | 4-6mm (Standard), 6-8mm Thickened Version (Customizable) |
Head Thickness | 5-8mm (Thickened, Integrated Forming, Anti-Deformation) |
Compartment Quantity | 1/2/3 Compartments (Customizable, with Fluidizing Device) |
Application Medium | Bulk Cement, Fly Ash, Lime Powder, Mineral Powder, Stone Powder, etc. |
Item | Standard Details & Customizable Options |
Axle Brand | FUWA / BPW 13T Heavy-Duty Axle (International Famous Brand) |
Suspension | Mechanical Leaf Spring (Standard) / Airbag Suspension (Optional) |
Tire Specification | 12.00R20 / 11R22.5 All-Steel Radial Tire (Spare Tire Optional) |
Brake System | Dual-Line Air Brake + ABS + Parking Brake (WABCO Valve Optional) |
Frame | High-Strength Manganese Steel Frame, Anti-Twist, Heavy-Duty Design |
Item | Standard Details & Customizable Options |

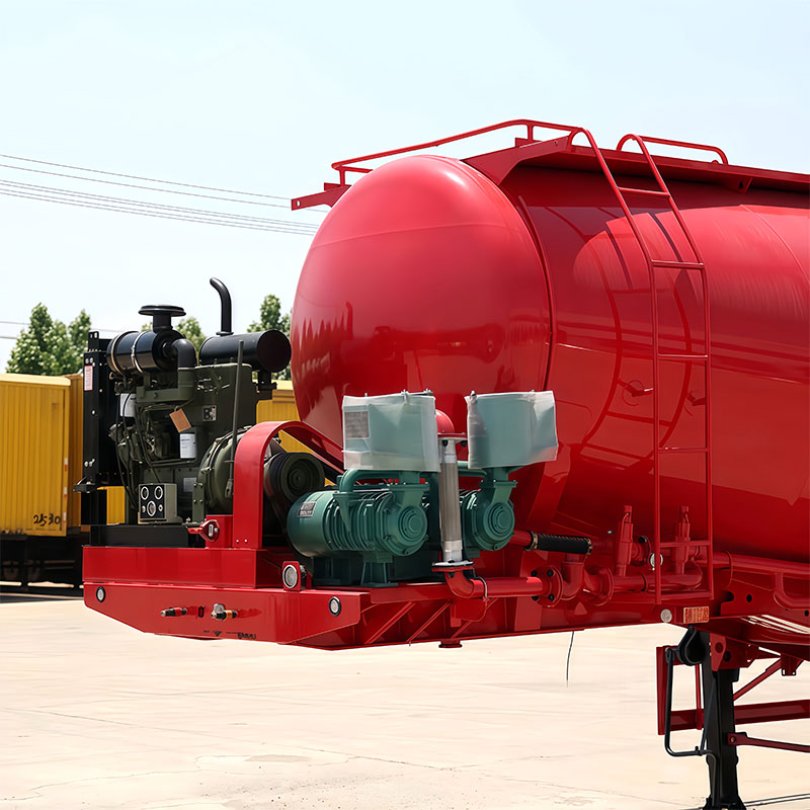

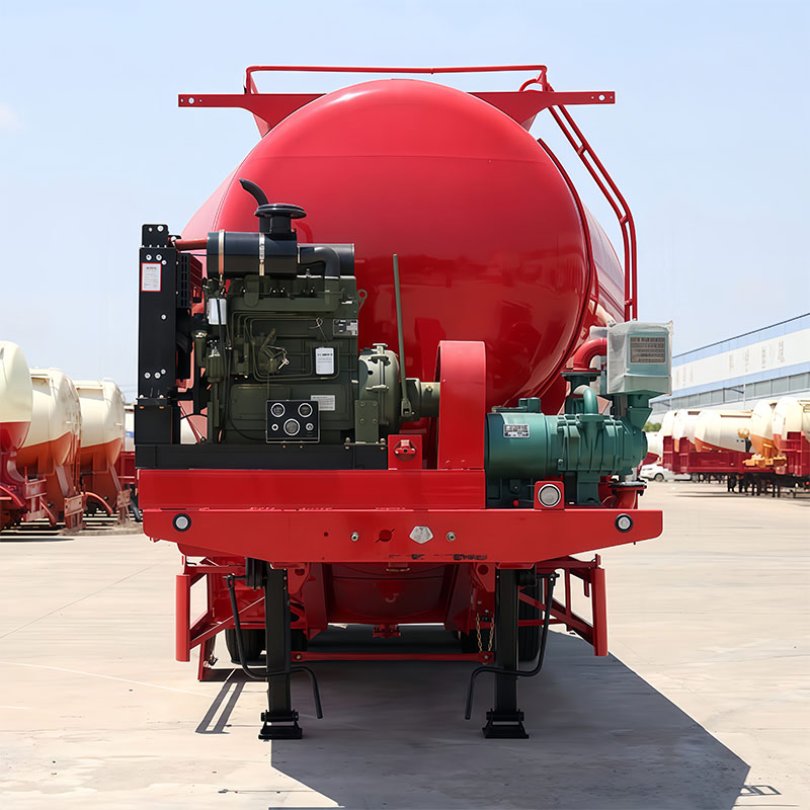

Air Compressor | High-Quality Oil-Free Air Compressor (Optional Famous Brand) |
Discharging Pressure | 0.2-0.4MPa (Standard, Suitable for All Kinds of Silos) |
Discharging Speed | ≥1.2-1.5 Tons/Min, Residue Rate ≤0.3% (Industry Leading) |

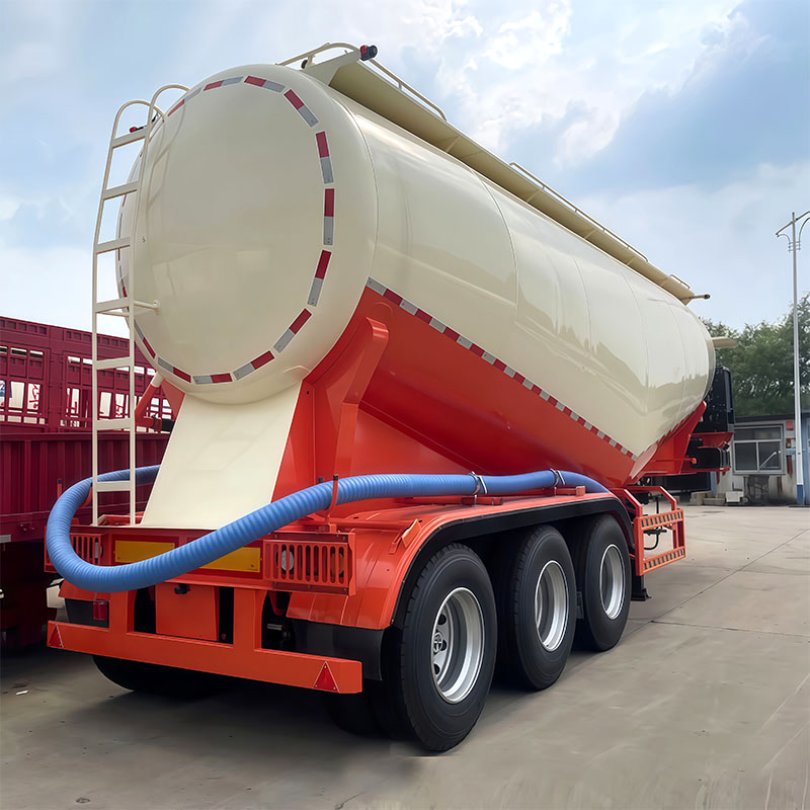

Discharging Hose | 4-6m Wear-Resistant Hose with Quick Connector (Custom Length) |
Manhole Cover | 2-4 Sealed Manhole Covers (Dust-Proof & Leak-Proof) |
Fluidizing Device | Special Fluidizing Cloth & Air Chamber, Smooth Discharging |
Support full customization of volume, axle quantity, tank material, discharging pressure and overall size, perfectly suitable for Africa, Middle East, Southeast Asia, South America, Eastern Europe and other mainstream export markets. We can provide small-volume short-haul type and large-volume heavy-duty type, complying with local road load regulations to meet diverse procurement needs.

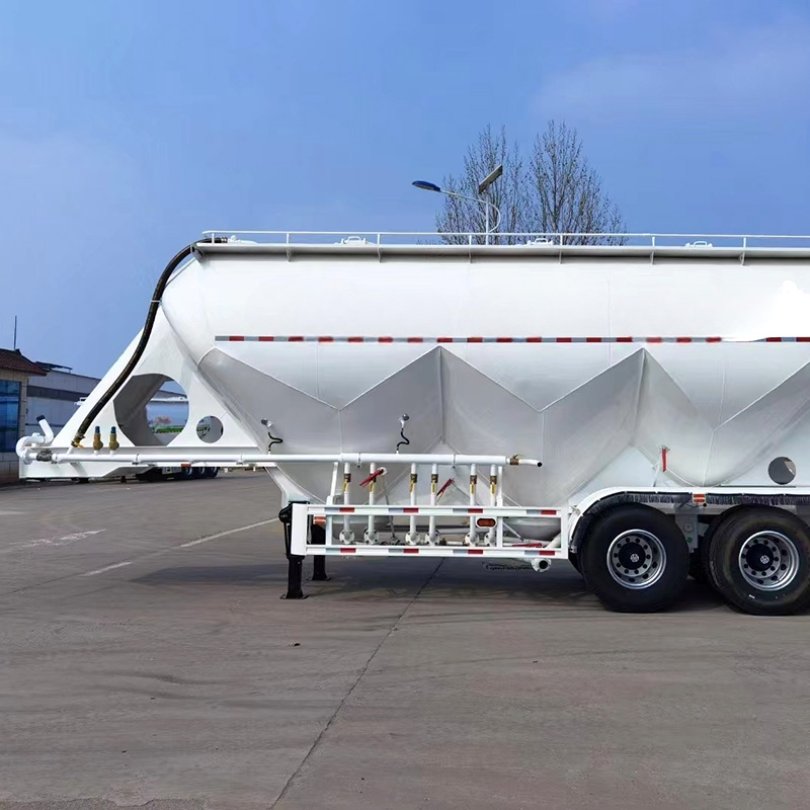

Equipped with special air compressor and optimized fluidizing system, featuring fast discharging speed and ultra-low material residue rate to avoid waste. W-type or inclined bottom tank structure with internal air chamber design prevents material blockage and sticking, shortens single discharging time and improves transport efficiency.
Adopt high-quality carbon steel tank with thickened head and body, fully welded and sealed craft, featuring high pressure resistance, impact resistance and corrosion resistance. High-strength manganese steel frame with international brand axles and heavy-duty suspension ensures stable structure, no deformation or cracking under long-term heavy load.
Fully sealed tank design with sealed locking devices for feeding and discharging ports, no dust leakage or material spilling during transportation, fully in line with international environmental protection standards. Suitable for strict environmental protection scenarios such as urban infrastructure and factory areas.
Obvious price advantage compared with European and American similar products, greatly reducing procurement costs. Universal spare parts are easy to purchase globally, with simple daily maintenance and low repair cost. Core components like air compressor are stable with low failure rate.
Provide complete vehicle export, CKD/SKD semi-knocked down export to adapt to different import tariffs and customs clearance policies. Offer professional technical guidance, operation training and spare parts supply with global after-sales network, solving customers' worries in later use.
