Item | Details & Customizable Options |
Model | Standard Fuel Tank Semi-Trailer (Custom Model Available) |
Axle Configuration | 2 Axles / 3 Axles / 4 Axles (Optional, Customizable) |
Overall Dimension (L*W*H) | 11500-14500×2500×3600-3900mm (Custom Size Available) |
Gross Vehicle Weight (GVW) | 40,000-60,000kg (Adjustable per Local Road Regulations) |
Tare Weight | 7,500-11,000kg (Carbon Steel Standard, Aluminum Alloy Lighter) |
Rated Payload | 30,000-50,000kg (Matched with Tank Volume & Axle Load) |
Traction Pin | 50# / 90# (JOST Brand Optional, International Universal) |

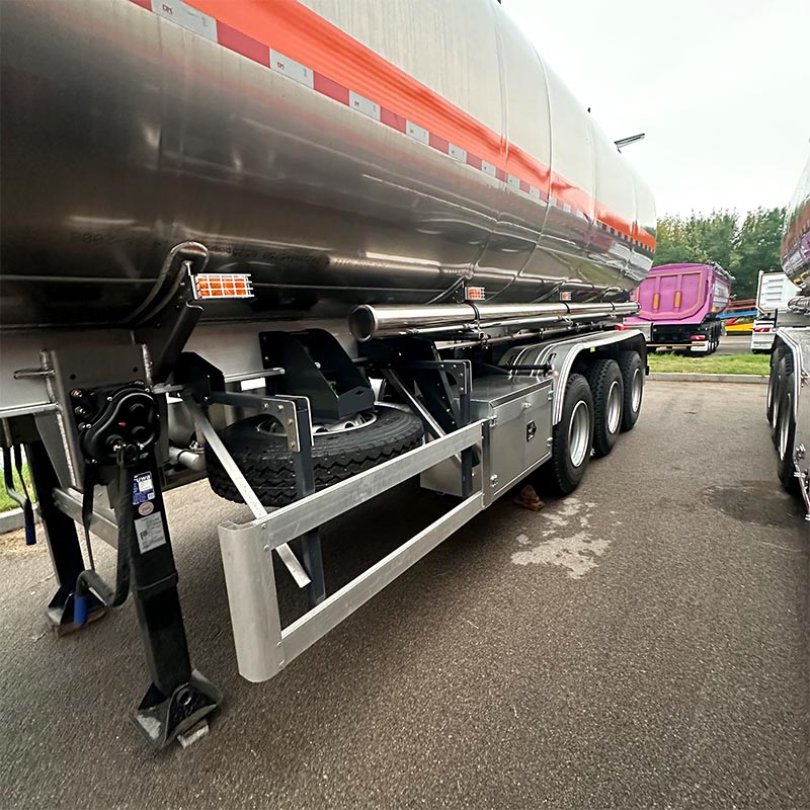

Landing Gear | Double-Speed Manual Landing Gear (Heavy-Duty Type Optional) |
Item | Details & Customizable Options |

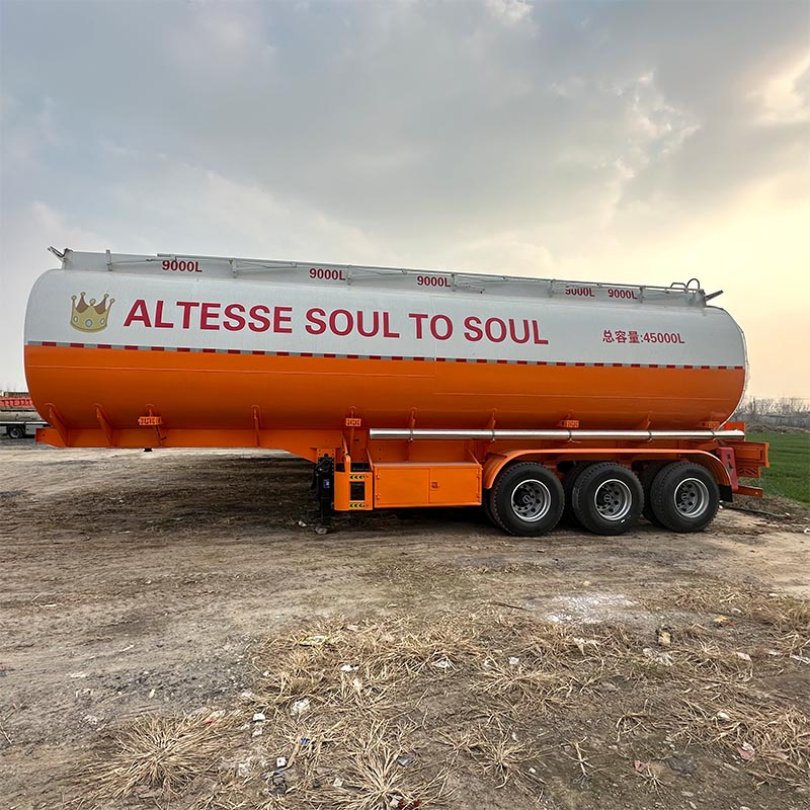

Effective Volume | 30,000L / 35,000L / 40,000L / 45,000L / 50,000L / 54,000L (100% Customizable) |

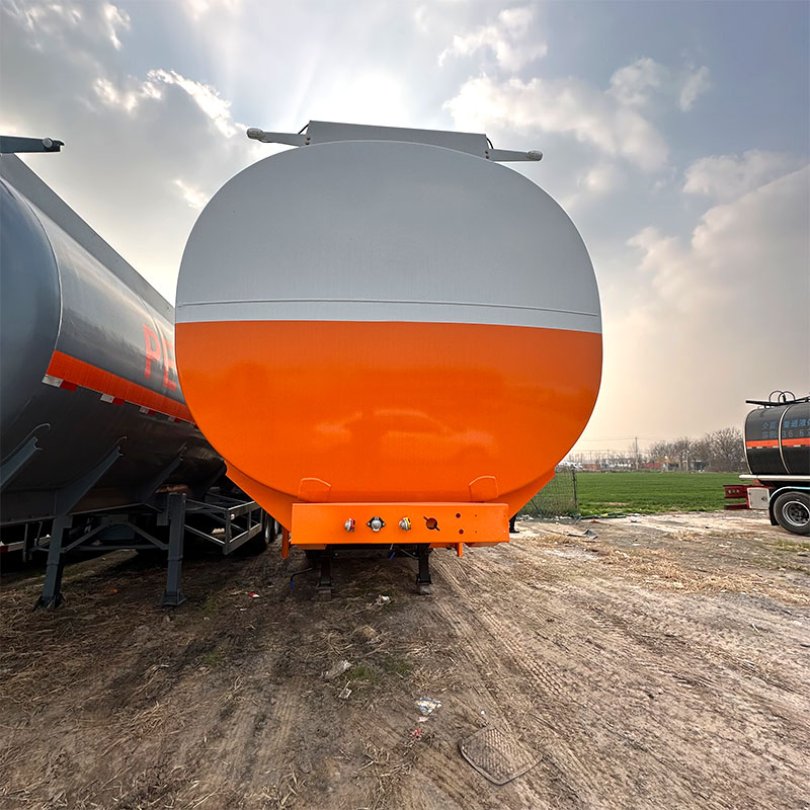

Tank Shape | Elliptical (Standard, Lower Gravity) / Round (Optional) |
Tank Material | Q235/Q345 Carbon Steel (Standard) / 5083 Aluminum Alloy (Optional) |
Tank Body Thickness | Carbon Steel: 5-6mm; Aluminum Alloy: 5-6mm (Custom Thickness Available) |
Tank Head Thickness | Carbon Steel: 6-8mm; Aluminum Alloy: 6mm (Thickened for Pressure Resistance) |
Compartment Quantity | 1-6 Compartments (Customizable, with Anti-Sloshing Baffles) |
Transport Medium | Diesel, Gasoline, Crude Oil, Lubricating Oil, Non-Corrosive Liquid Fuels |
Item | Details & Customizable Options |
Axle Brand | FUWA / BPW 13T Heavy-Duty Axle (International Famous Brand) |
Suspension | Mechanical Leaf Spring (Standard) / Airbag Suspension (Optional) |

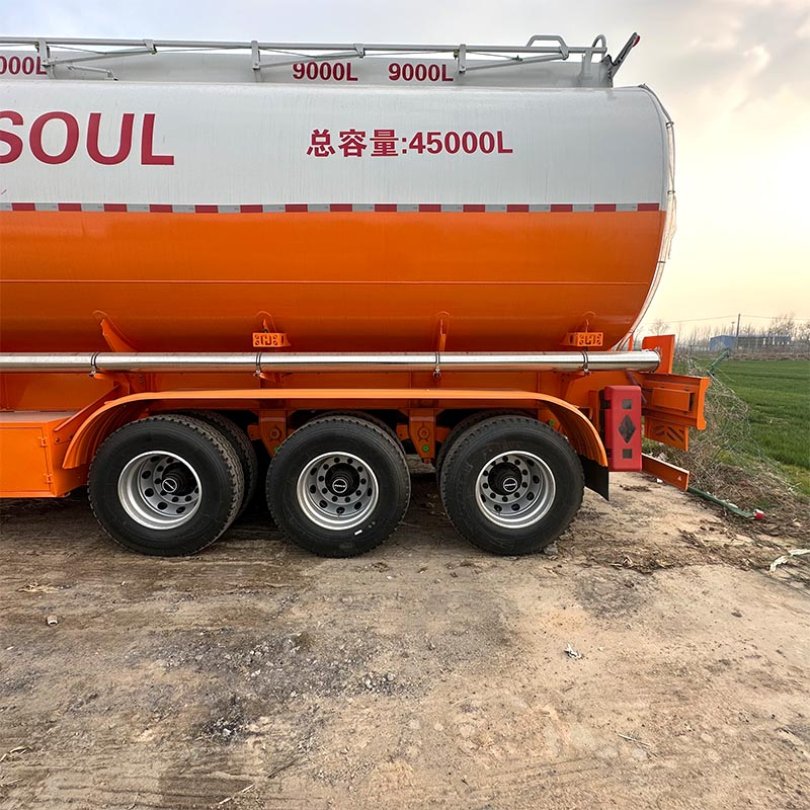

Tire Specification | 12.00R20 / 11R22.5 All-Steel Radial Tire (Spare Tire Optional) |
Brake System | Dual-Line Air Brake + ABS + Emergency Brake (WABCO Valve Optional) |
Electrical System | 24V DC, LED Lights, Waterproof Wiring Harness (Anti-Corrosion) |
Item | Details & Customizable Options |
Unloading Type | Gravity Unloading (Standard) + Fuel Pump Unloading (Optional) |
Valve Type | Butterfly Valve / Ball Valve (Stainless Steel Anti-Corrosion Optional) |
Manhole Cover | Pressure-Resistant Anti-Overflow Manhole Cover (Safety Lock Optional) |
Safety Kits | Fire Extinguisher, Static Grounding Device, Reflective Markings (Standard) |
Unloading Hose | 6m Hose *2 Sets, Quick Connector (Custom Length Available) |
Support full personalized customization including tank volume, material, axle number, compartment quantity, overall size and safety configuration. Perfectly adapt to different road regulations, loading limits and transport scenarios in Africa, Middle East, Southeast Asia, South America and other mainstream overseas markets. Meet diverse customer demands for small-volume short-haul and large-capacity long-distance fuel transportation.
Adopt high-quality carbon steel or aviation-grade 5083 aluminum alloy, with thickened tank body and sealed full-welding technology. Built-in anti-sloshing baffles reduce liquid fluctuation and improve driving stability. The tank features excellent anti-corrosion, anti-pressure and wear-resistant performance, suitable for long-term heavy-load transport, with stable performance and prolonged service life to cut later replacement costs.
Equipped with world-famous FUWA/BPW axles, heavy-duty suspension and compliant brake system, ensuring strong bearing capacity, smooth driving and sensitive braking. The chassis follows international transport standards, with high compatibility to match various global tractor heads. It adapts to complex road conditions and is easy to operate and maintain.
Full series equipped with complete safety devices: anti-overflow manhole cover, static elimination equipment, fire extinguisher, ABS system and high-brightness reflective markings, fully complying with international flammable liquid transport safety rules. Strict sealing test ensures zero leakage risk, guaranteeing safe and efficient fuel transport.
More competitive price than European and American similar products, greatly reducing procurement costs. Universal spare parts are easy to purchase globally, with simple maintenance and low daily upkeep cost. Lightweight aluminum alloy version lowers tare weight, increases effective payload and improves transport efficiency for higher economic benefits.
Provide complete vehicle export, CKD/SKD semi-knocked down export and other flexible modes to fit different import policies. Offer global after-sales support including technical guidance, installation training and spare parts supply, solving customers’ after-use worries and building long-term stable cooperation.
