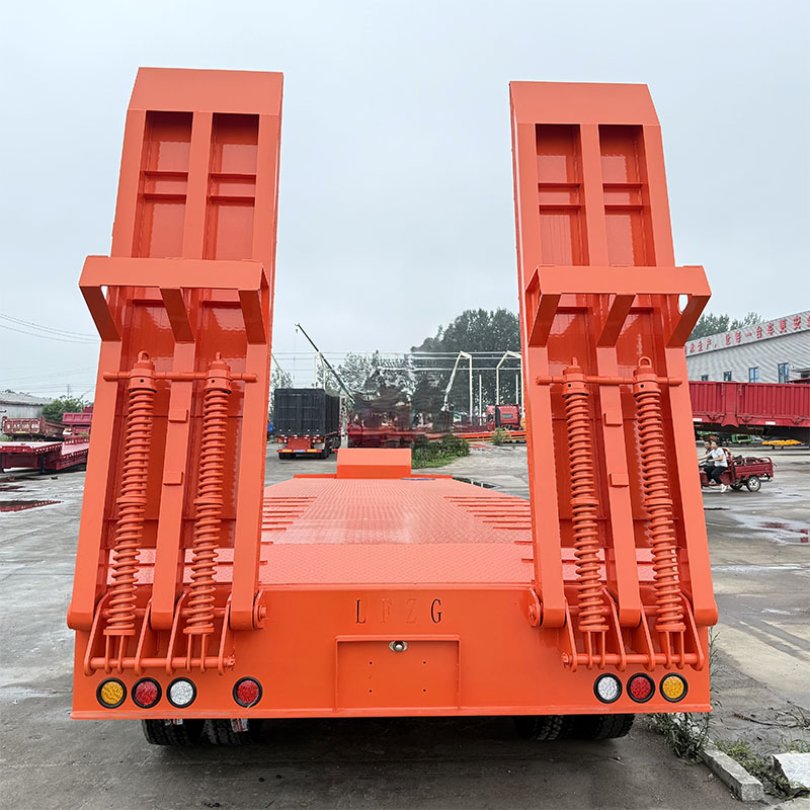

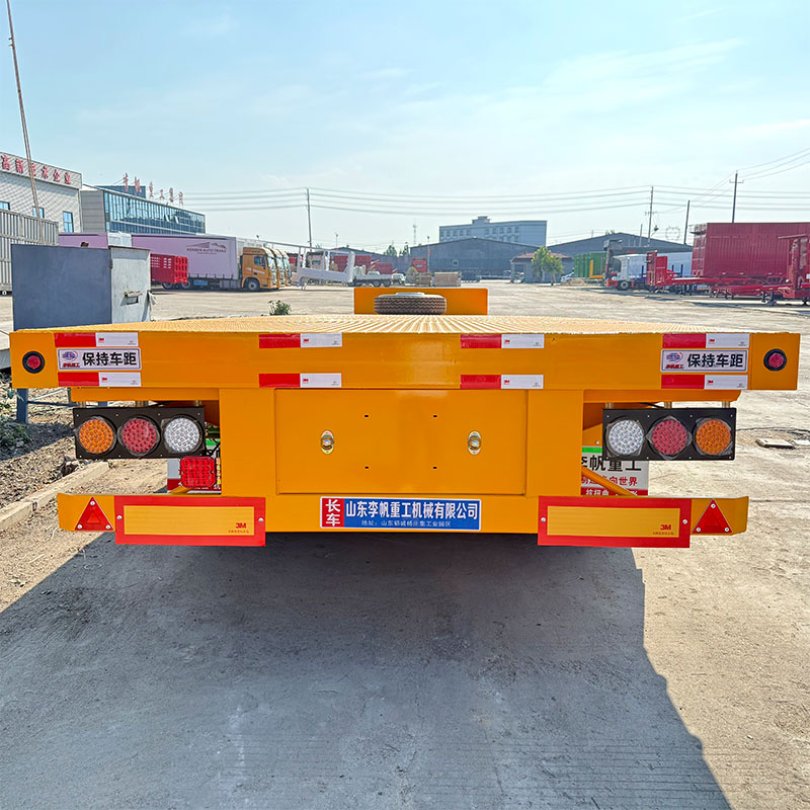

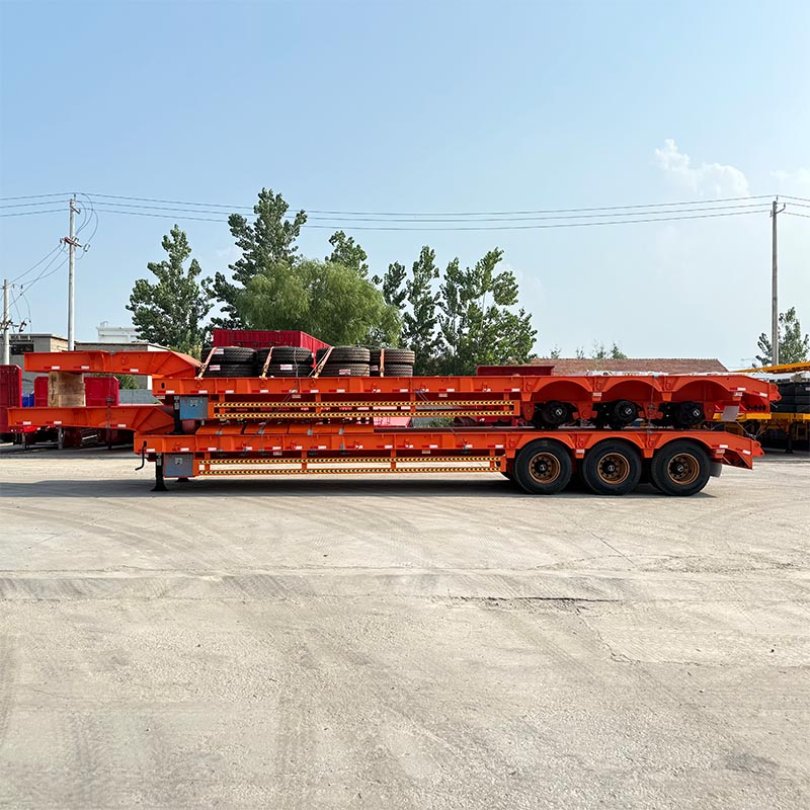

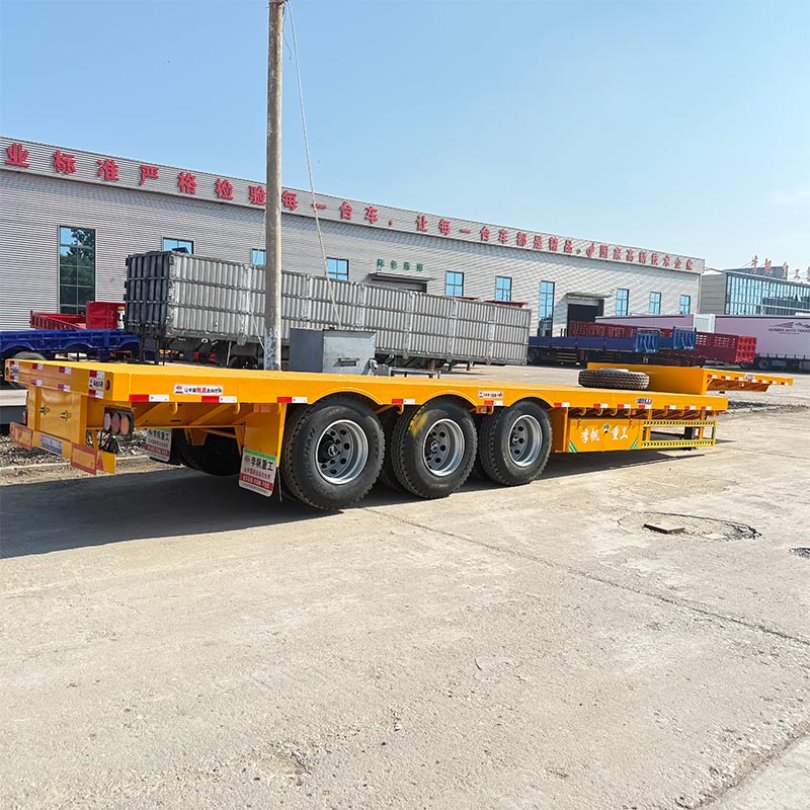

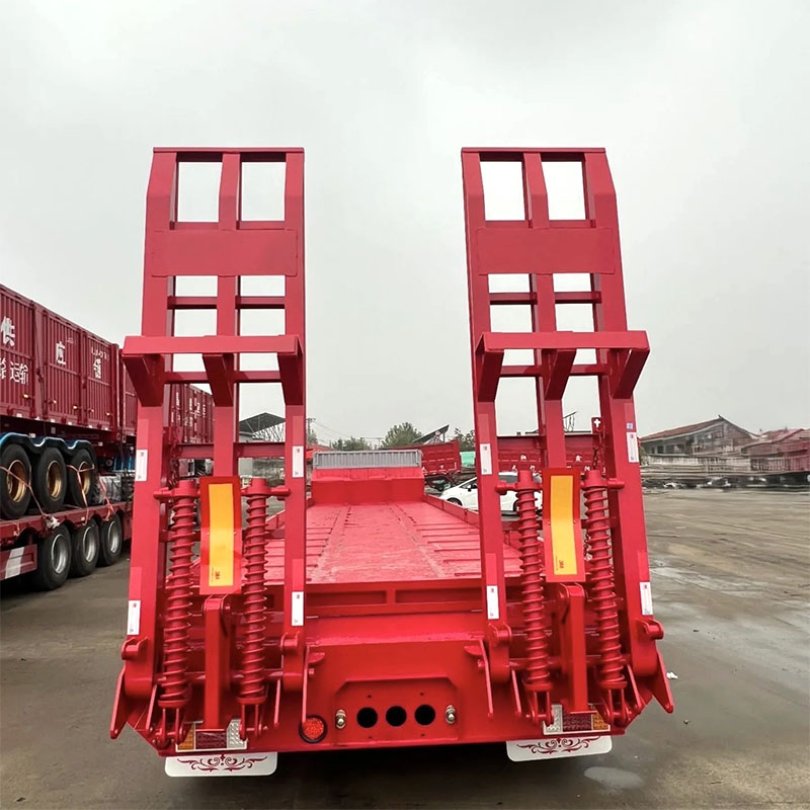

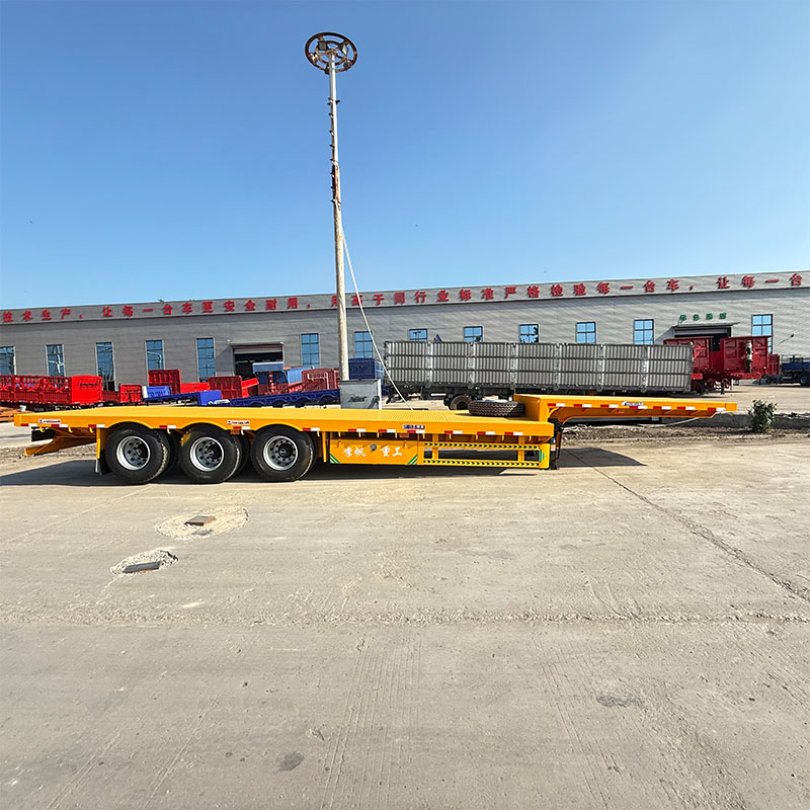

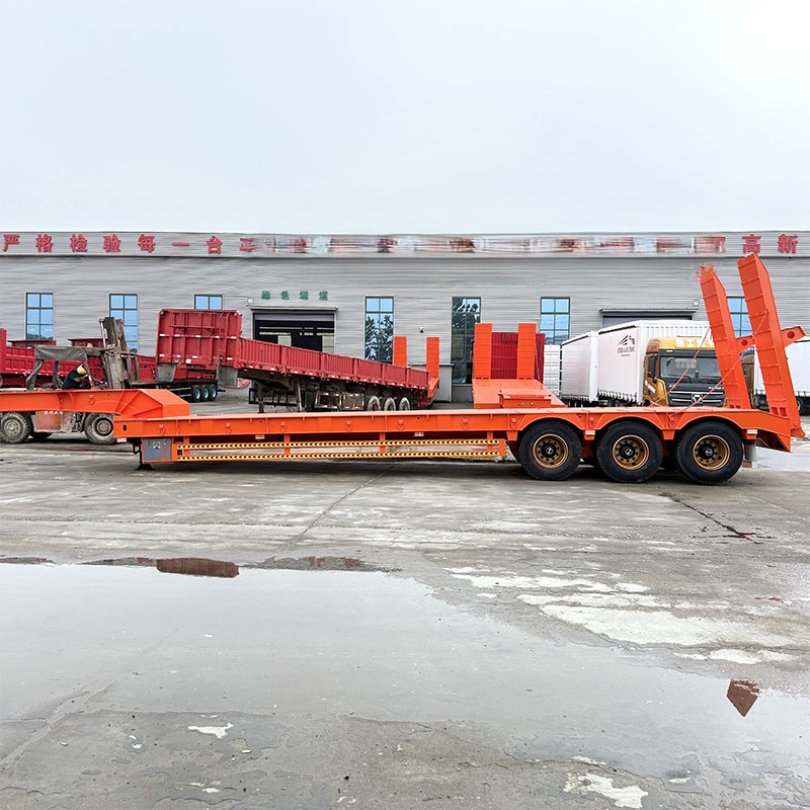

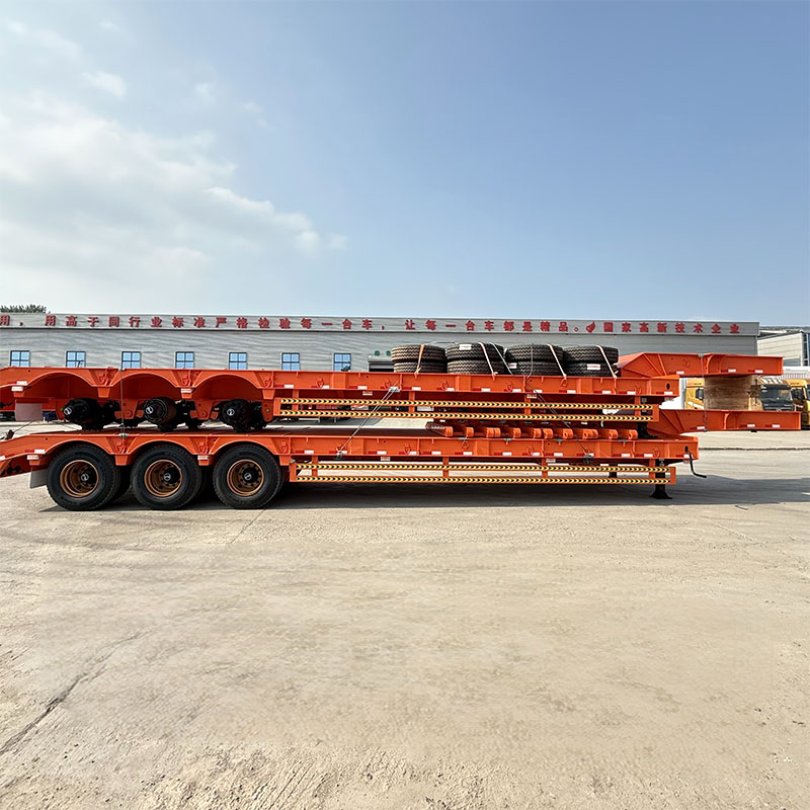

The low bed semi-trailer, also known as low loader / lowboy trailer, is a heavy-duty trailer designed with an extra-low loading platform. It is mainly used for transporting oversized and heavy cargo such as construction machinery, excavators, bulldozers, cranes, large mechanical equipment and other heavy industrial goods.

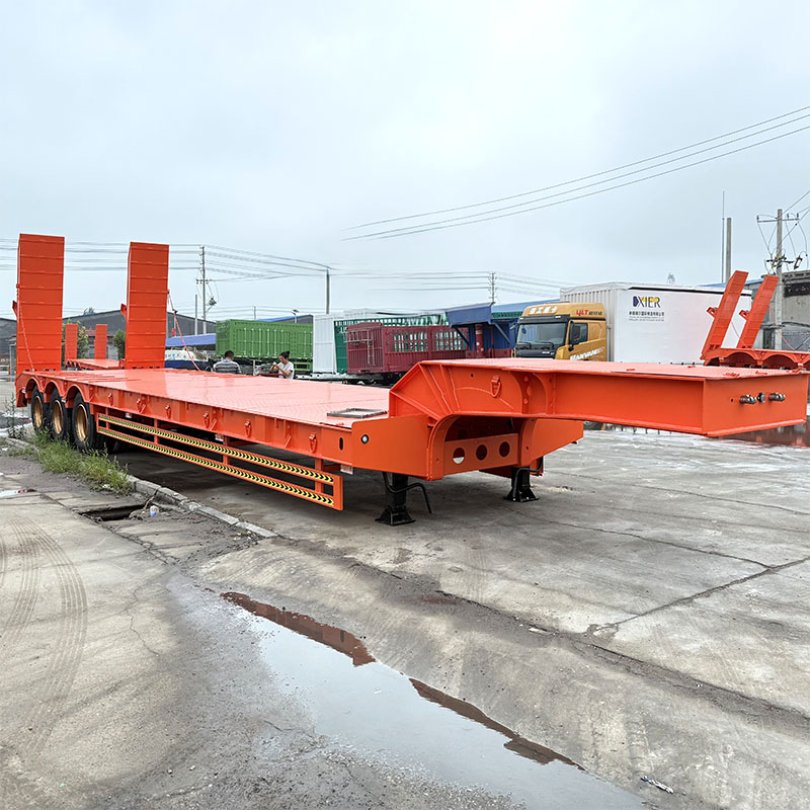

With its low center of gravity, stable structure and strong load-bearing capacity, it ensures safe transportation and easy loading & unloading. The gooseneck design and detachable / hydraulic front axle make it convenient for machinery to drive on and off directly. It is widely applied in engineering machinery transportation, heavy equipment logistics and oversize cargo transport projects.
Person in charge: Jim yao
Technical Specification | |
3axles lower flatbed semi-trailer | |
Overall size | 13750mm X 3000mm X3750mm , according to confirmed CAD design card. |
Payload | 50 Tons |
Axle | Factory-customized axles: 13 tons × 3 |
Tyre | Benniu Tire 315/80R22.5*12pcs, 2 spare tires. |
Rim | 9.0-22.5*14pcs with 16mm thickened. |
Leaf spring | 13mm*120mm*10pcs |
Landing gear | JOST brand,Heavy duty landing gear 28T. |
Kingpin | JOST brand,3.5" bolt-on kingpin |
Upper and lower wing plates | 14mm/16mm |
Main beam | Main beam 500mm height,webplate thickness 10mm. |
Side beam | 16# thick-walled channel steel |
Floor | 2.75mm checkered plate |
Electrical system | 24 volt system 7 pin LED light. |
Painting | Complete chassis sand blasting to clean rust.one coat of anticorrosive prime,2 coats of final paint. |
Accessories | One standard tool box,2 spare tire carrier,one shaft head wrench. |
