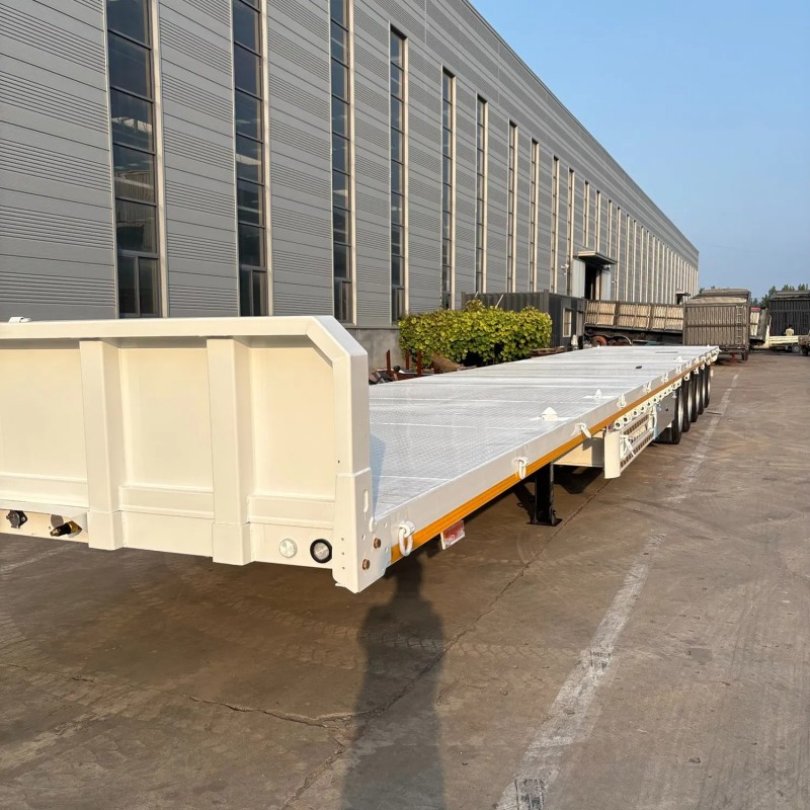

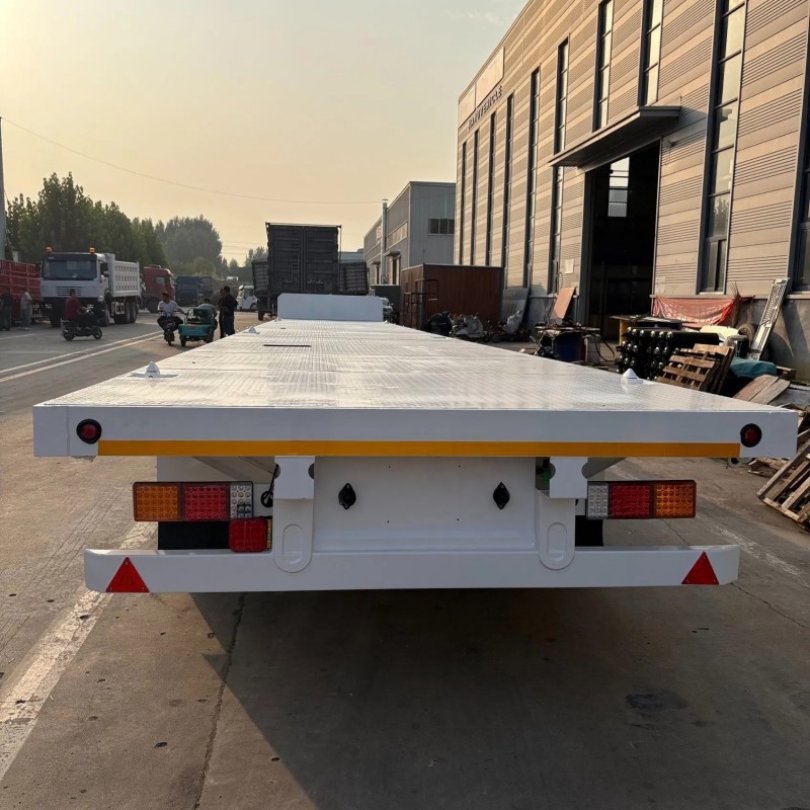

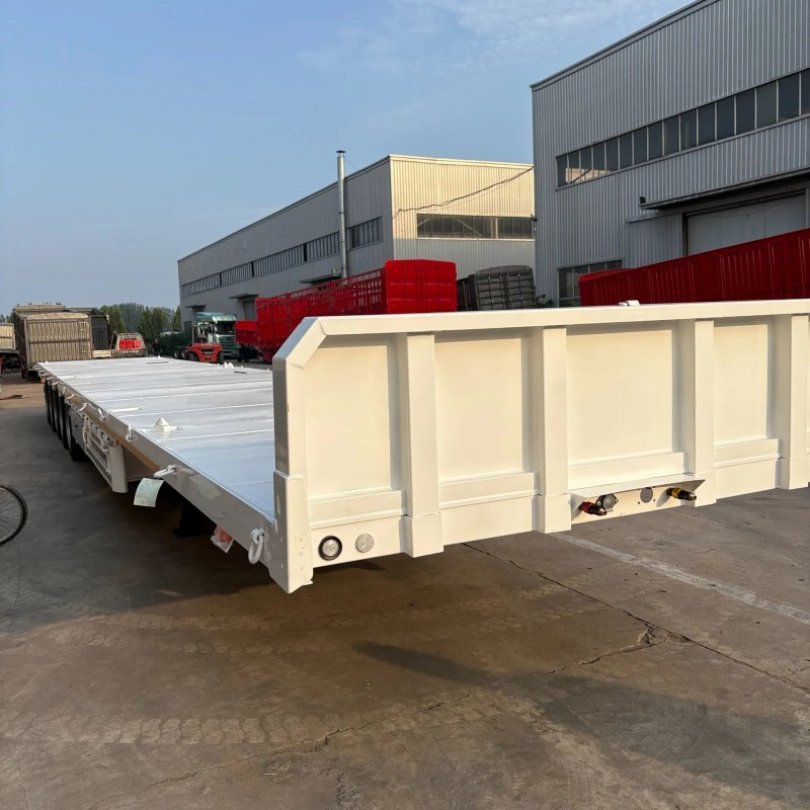

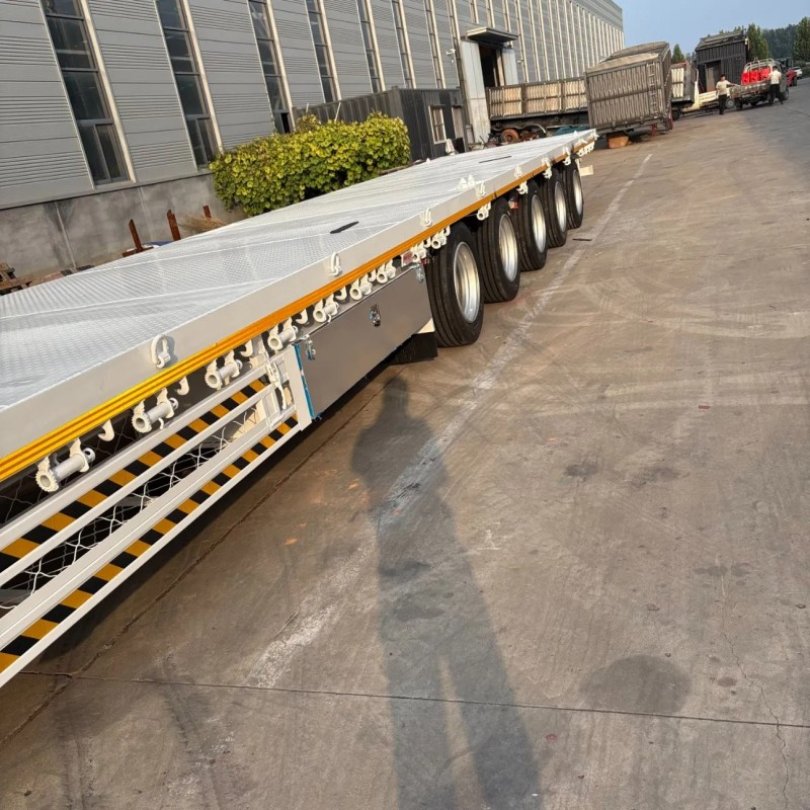

Flatbed with multiple functional semi trailer
A flatbed semi-trailer is a super useful truck trailer with a totally flat, open deck—no sides or roof at all. It's perfect for hauling big, bulky stuff that's too tall, wide, or odd-shaped for regular enclosed trailers, like construction materials (think steel beams, concrete pipes), or large equipment.What makes it great is how easy it is to load and unload. You can use cranes, forklifts, or even just slide things on from the sides or back, which saves a lot of time, especially for heavy cargo. It's super strong too—its deck is built to handle heavy weights, so it's a go-to choice for industries like construction, mining, and logistics that move big, heavy items every day.
Person in charge: Jim yao
Technical Specifications
(Custom configurations available upon request.)
Overall size | 17000*2500mm*1400mm | ||
Payload | 60 Tons | ||
Axle | Factory-customized axles: 13 tons × 5 | ||
Tyre | 315/80R22.5*20pcs,without spare tire. | ||
Rim | 9.0-22.5*20pcs with 16mm thickened. | ||
Leaf spring | 13mm*120mm*10pcs | ||
Suspension | Thickened mechanical suspension with a thickness of 12mm, balance beam of 16mm thickness, and bearing steel inner sleeve. Wear-resistant plate is 18mm thick. Reinforced with vertical ribs at both the front and rear. | ||
Landing gear | JOST brand,Heavy duty landing gear 28T. | ||
Kingpin | JOST brand,60,90 bolt-on kingpin | ||
Upper and lower wing plates | 14mm/16mm | ||
Main beam | Main beam 500mm height,webplate thickness 10mm. | ||
Side beam | 16# channel steel | ||
Floor | 2.75mm checkered plate | ||
Container locks | 12 container locks. | ||
Braking system | WABCO relay valve,Fuwa spring brake chamber T30/30 on two axles and T30 on one axle. | ||
ABS | Optional | ||
Electrical system | 24 volt system 7 pin LED light. | ||
Painting | Complete chassis sand blasting to clean rust.one coat of anticorrosive prime,2 coats of final paint. | ||
Accessories | One standard tool box,one spare tire carrier,one shaft head wrench. | ||
