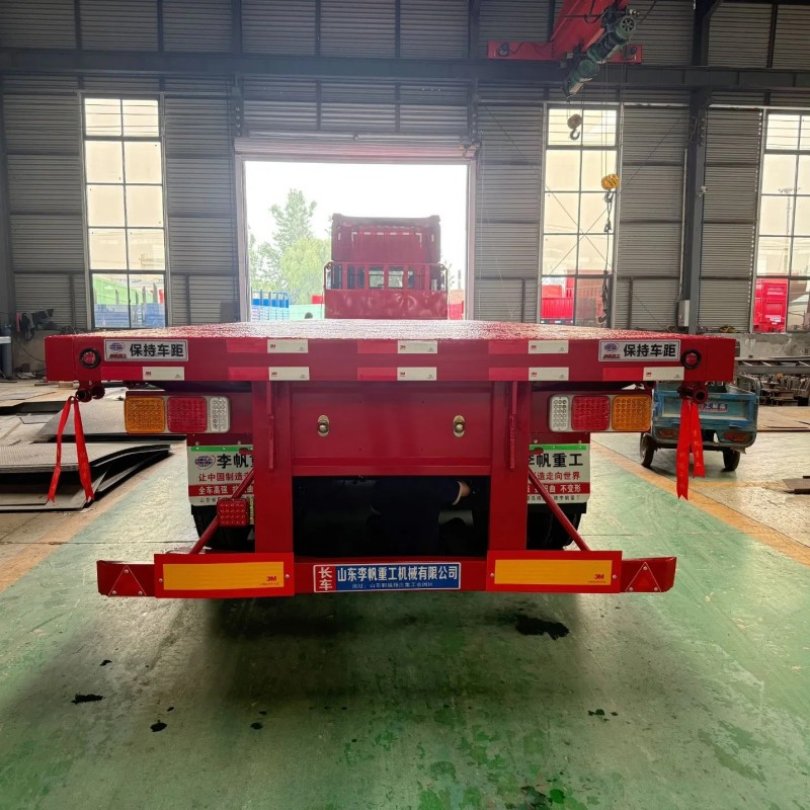

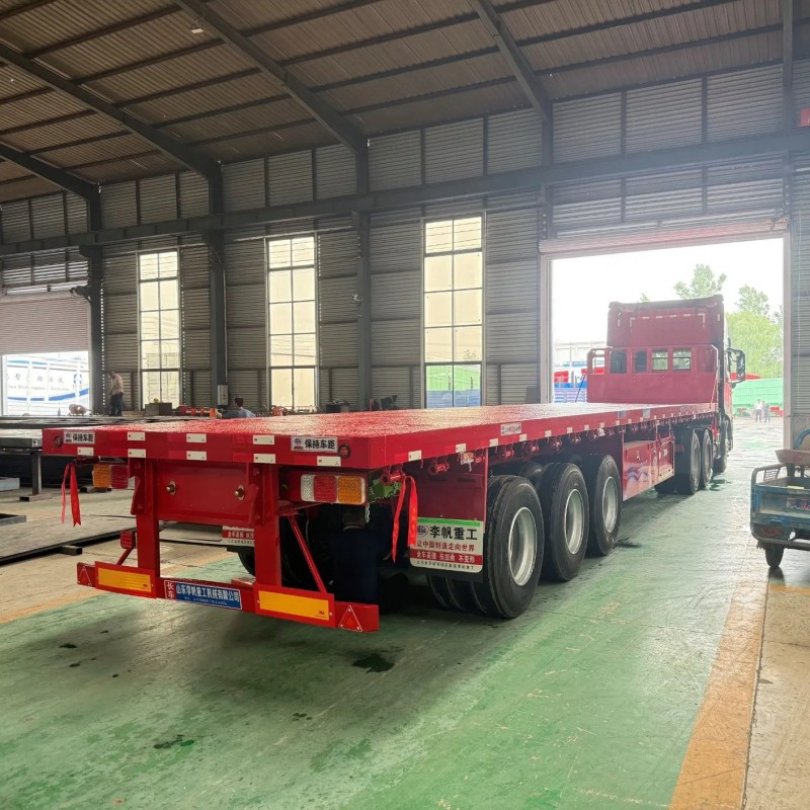

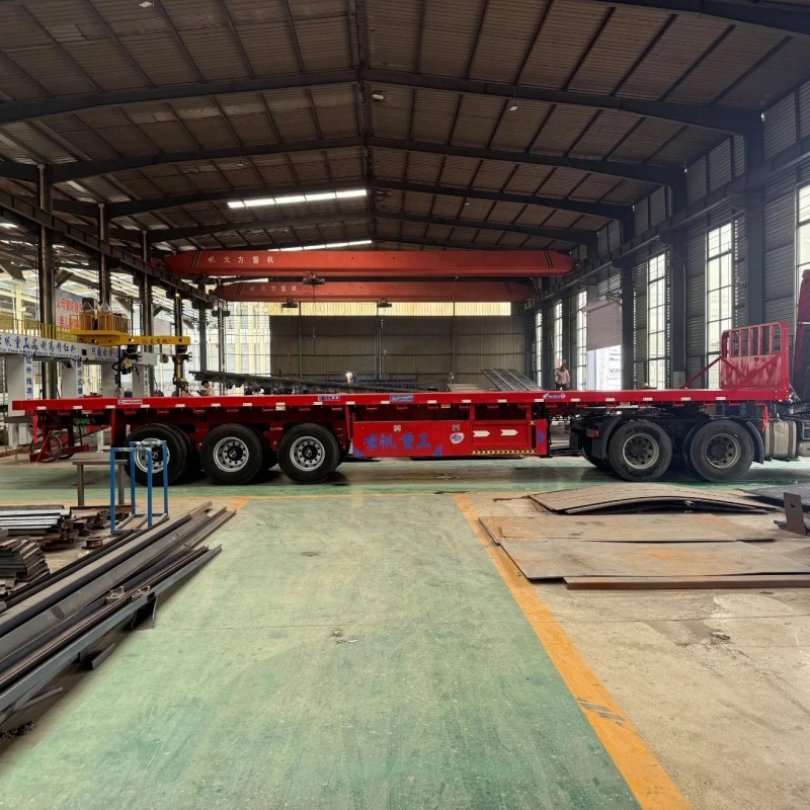

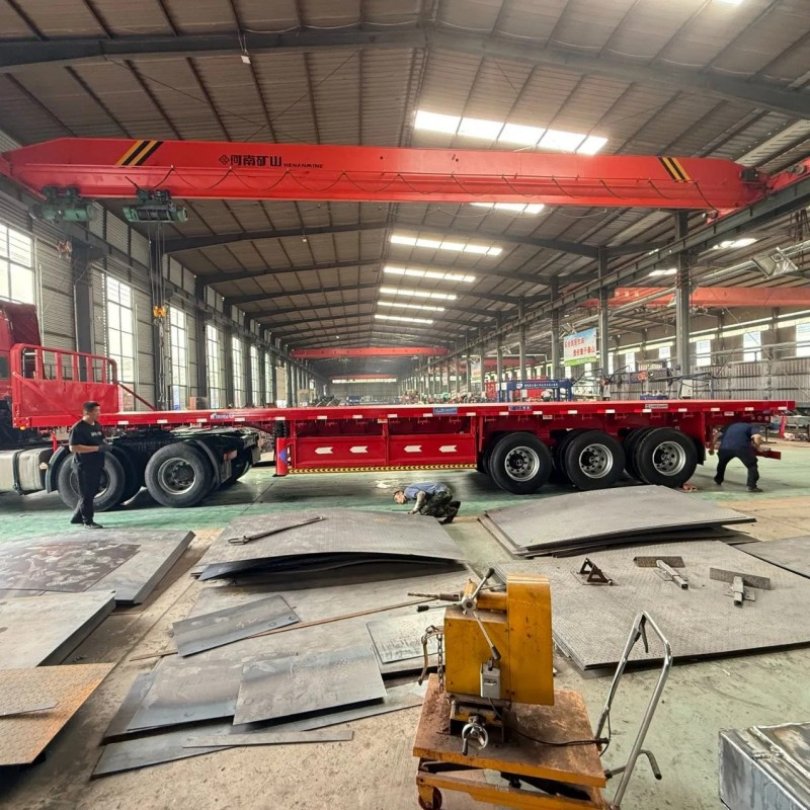

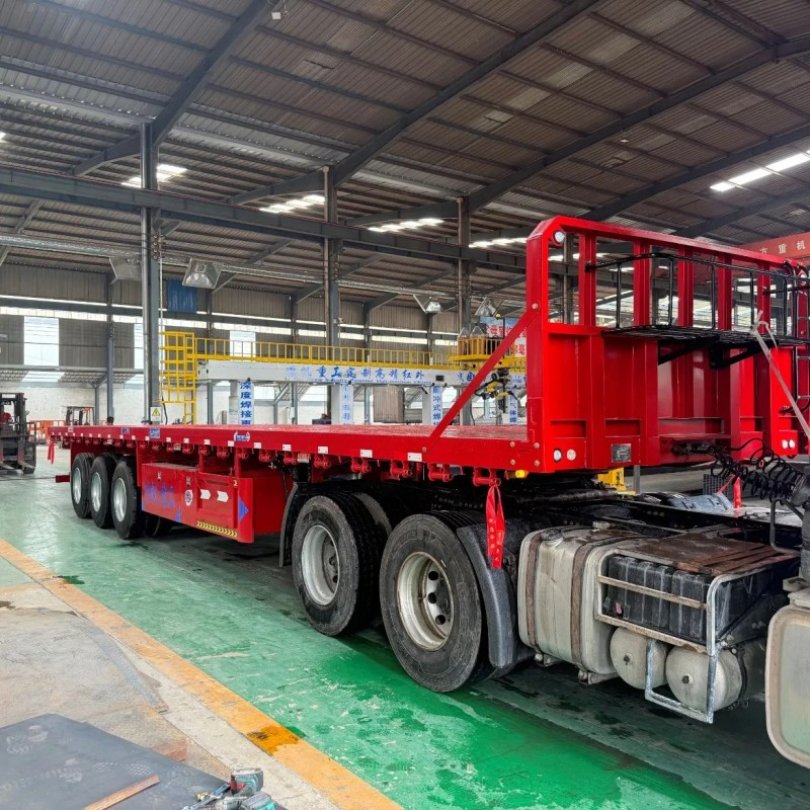

Flatbed conatiner semi trailer
The container flatbed semi-trailer is applicable to both 40 - foot and 20 - foot containers. Moreover, it can be used flexibly to haul bulk cargo without the need for containers. Constructed with high - quality steel structures, this semi-trailer allows for customization, thereby catering to a diverse range of your requirements.
Person in charge: Jim yao
Technical Specifications
(Custom configurations available upon request.)
Overall size | 12500*2500mm,excluding front baffle,details according to confirmed CAD design card. | ||
Payload | 60 Tons | ||
Axle | Factory-customized axles: 13 tons × 3. Feiying Green Dragon brake pads with a warranty of 200,000 kilometers. Luoyang bearings are used, with reinforced axle heads and thickened axle rods. | ||
Tyre | Benniu Tire 315/80R22.5*12pcs,without spare tire. | ||
Rim | 9.0-22.5*12pcs with 16mm thickened. | ||
Leaf spring | 13mm*120mm*10pcs | ||
Suspension | Thickened mechanical suspension with a thickness of 12mm, balance beam of 16mm thickness, and bearing steel inner sleeve. Wear-resistant plate is 18mm thick. Reinforced with vertical ribs at both the front and rear. | ||
Landing gear | JOST brand,Heavy duty landing gear 28T. | ||
Kingpin | JOST brand,3.5" bolt-on kingpin | ||
Upper and lower wing plates | 14mm/16mm | ||
Main beam | Main beam 500mm height,webplate thickness 10mm. | ||
Side beam | 16# channel steel | ||
Floor | 2.75mm checkered plate | ||
Container locks | 8 container locks. | ||
Braking system | WABCO relay valve,Fuwa spring brake chamber T30/30 on two axles and T30 on one axle. | ||
ABS | without | ||
Electrical system | 24 volt system 7 pin LED light. | ||
Painting | Complete chassis sand blasting to clean rust.one coat of anticorrosive prime,2 coats of final paint. | ||
Accessories | One standard tool box,one spare tire carrier,one shaft head wrench. | ||
