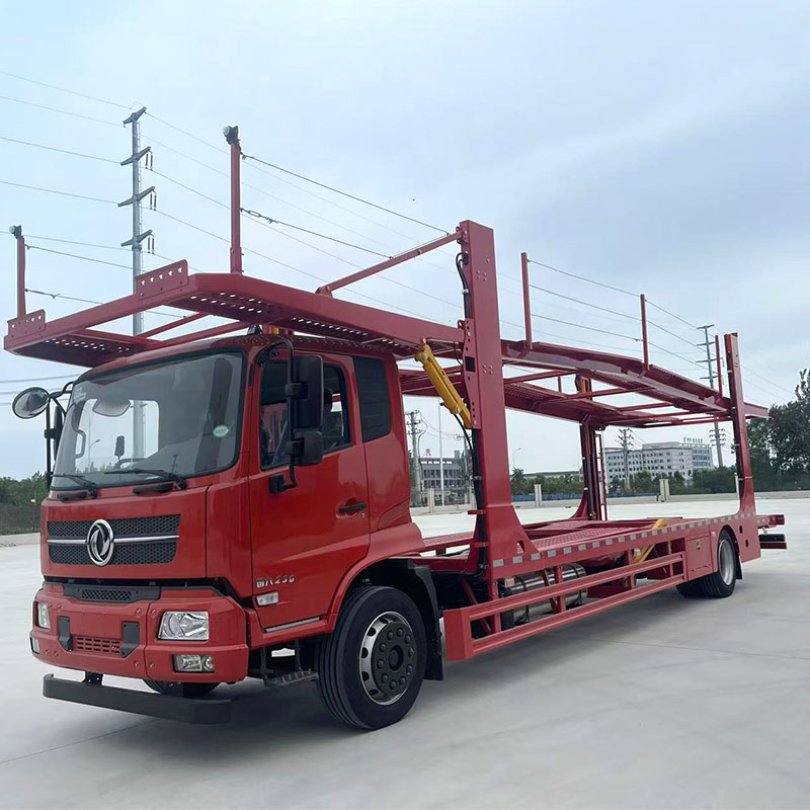

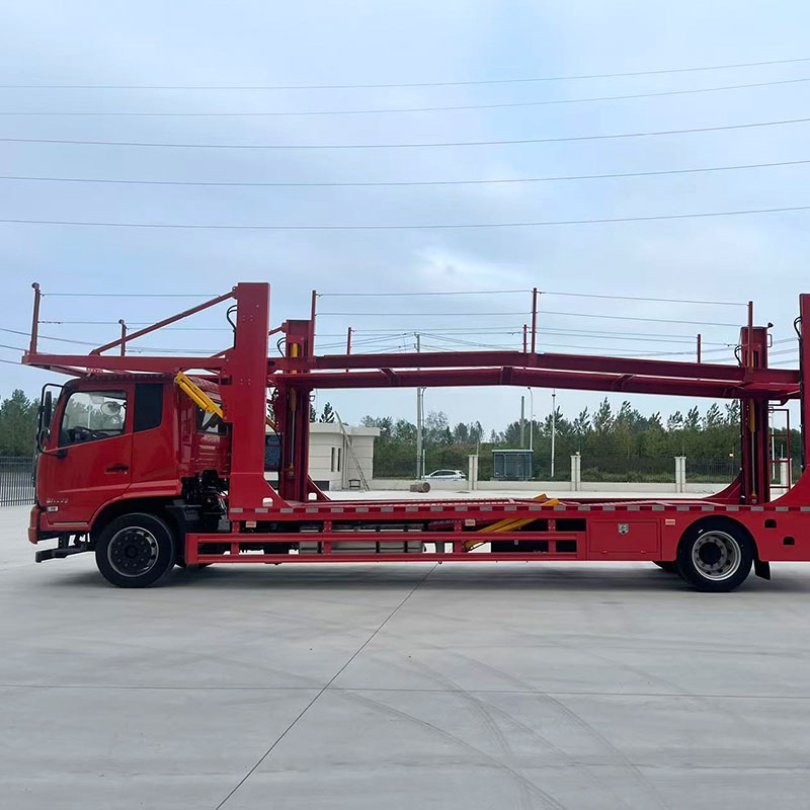

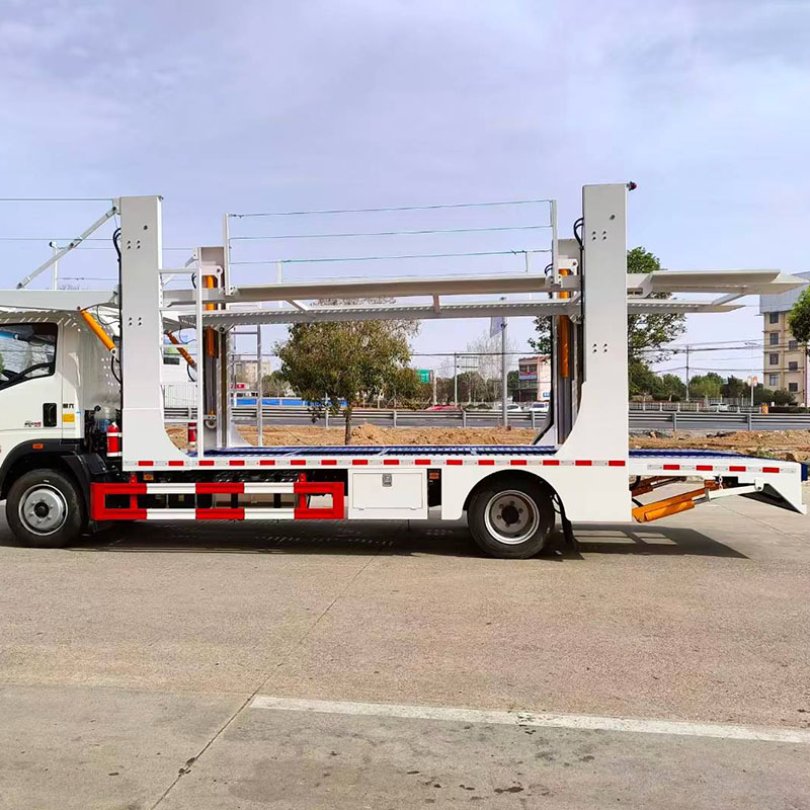

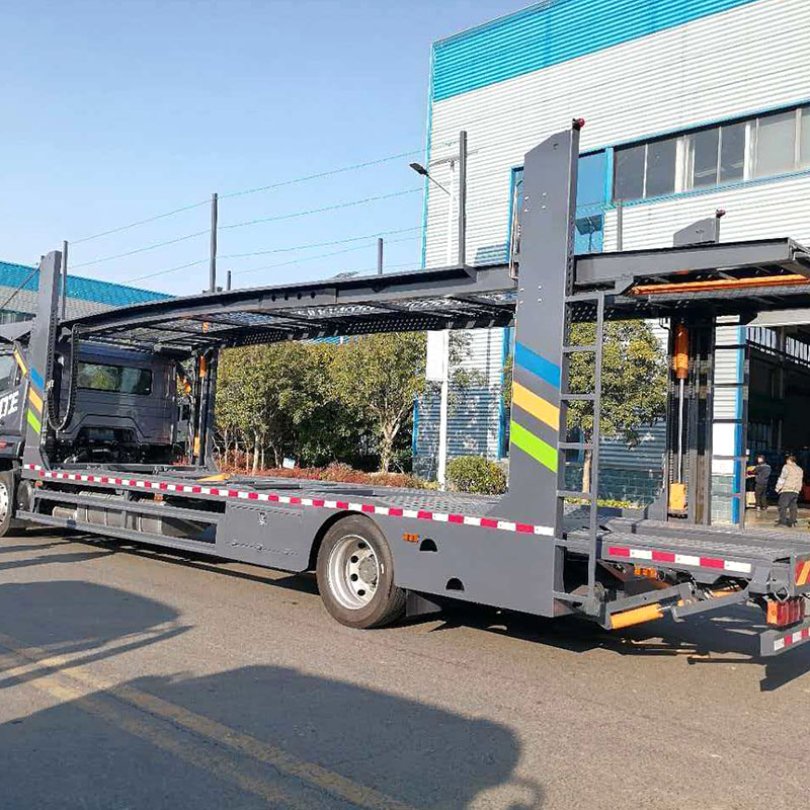

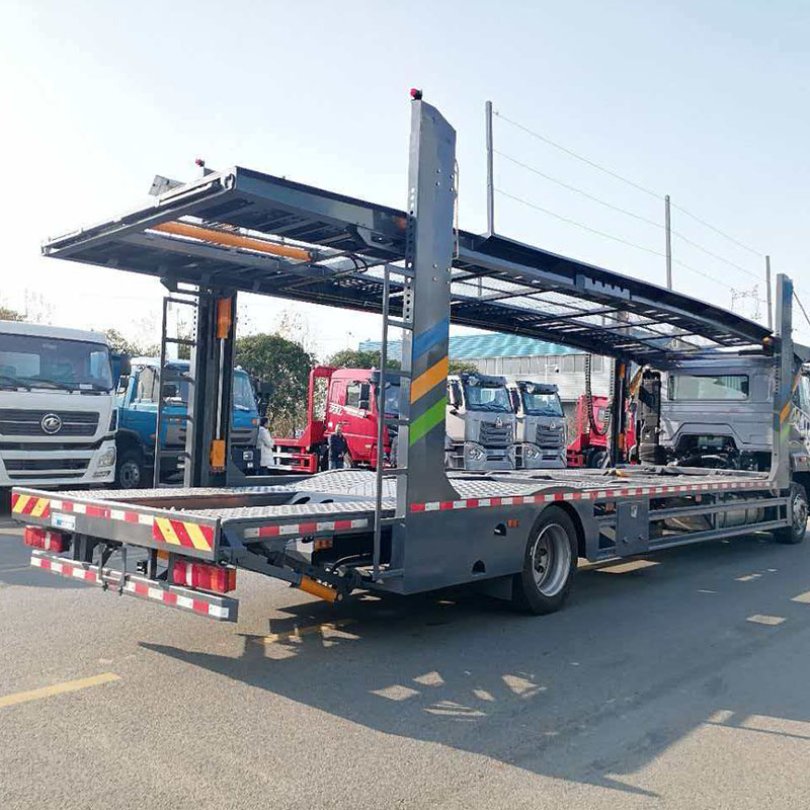

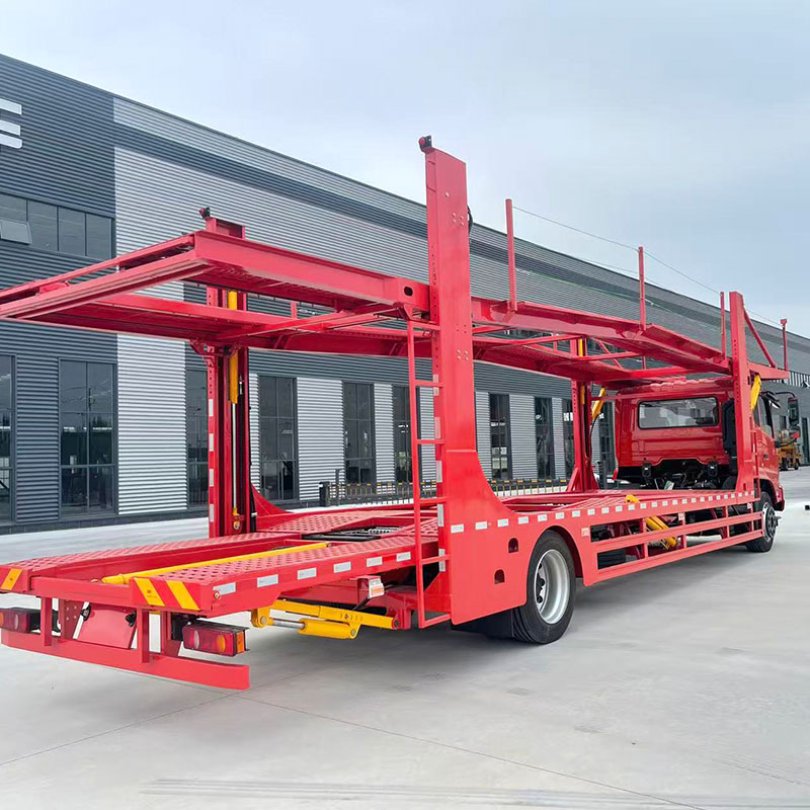

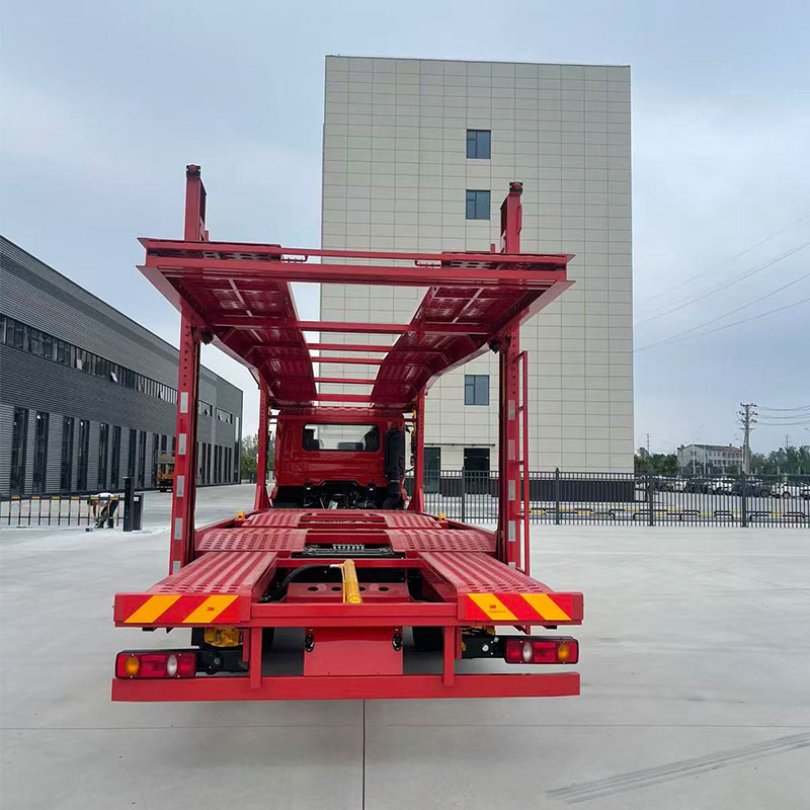

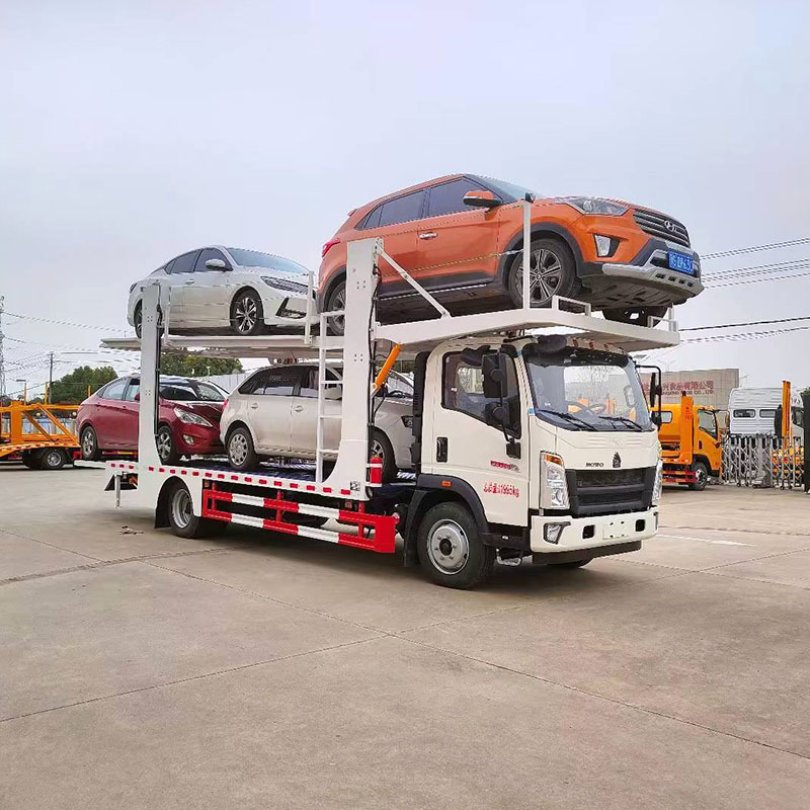

The car carrier vechicle is a specialized heavy-duty vehicle designed for the safe and efficient transportation of passenger cars and light commercial vehicles.
It features a dual-level loading structure with hydraulic lifting ramps and adjustable upper deck, allowing for flexible loading and unloading operations. The robust frame and anti-slip deck ensure the stability and security of vehicles during long-distance transport. With a high loading capacity, it can accommodate multiple cars simultaneously, significantly improving transport efficiency and reducing logistics costs.
Widely used in the automotive industry, vehicle distribution centers and cross-border logistics, it is an essential solution for the bulk transportation of finished vehicles
Person in charge: President Gu
Commodity Name & Specifications and Quantity
Dongfeng vehicle transport vehicle (5 seats)
Chassis configuration: Dongfeng Tianjin 7200mm wheelbase, Euro III, left-hand drive, Cummins 230hp engine, C230-33, 170kw, 6-cylinder 8.3L displacement
Battery: 24V dual Camel 165AH battery, Fast 9-speed gearbox, 9JS119B, front 5.5T rear 457 (13 tons) axle, 280mm (8+6) double-layer electrophoretic frame, power steering, air brake
Tires and quantity: 10.00R20 steel wire tires (6+1), fuel tank: aluminum alloy 220L, aluminum alloy air tank.
Upper body configuration: Front and rear chains; standard upper plate length 12400mm (extendable to 1250mm); lower plate length 9900mm; clearance between upper and lower plates ≥ 2 meters; upper plate can completely rest on the lower plate. Three-stage hydraulic pull-out system. The entire vehicle has 10 hydraulic cylinders (imported oil seals). It uses Suizhou Ruiyang gear pumps, Yangzhou Xiangda operating valves, and synchronizer valves on both front and rear uprights. The perforated plate is made of 3mm thick Q235 steel. All four uprights and the three-stage pull-out system are made of HG70 low-alloy high-strength material.
The vehicle’s color is orange.
Dimension: 12500mmX2550mmX3900mm
