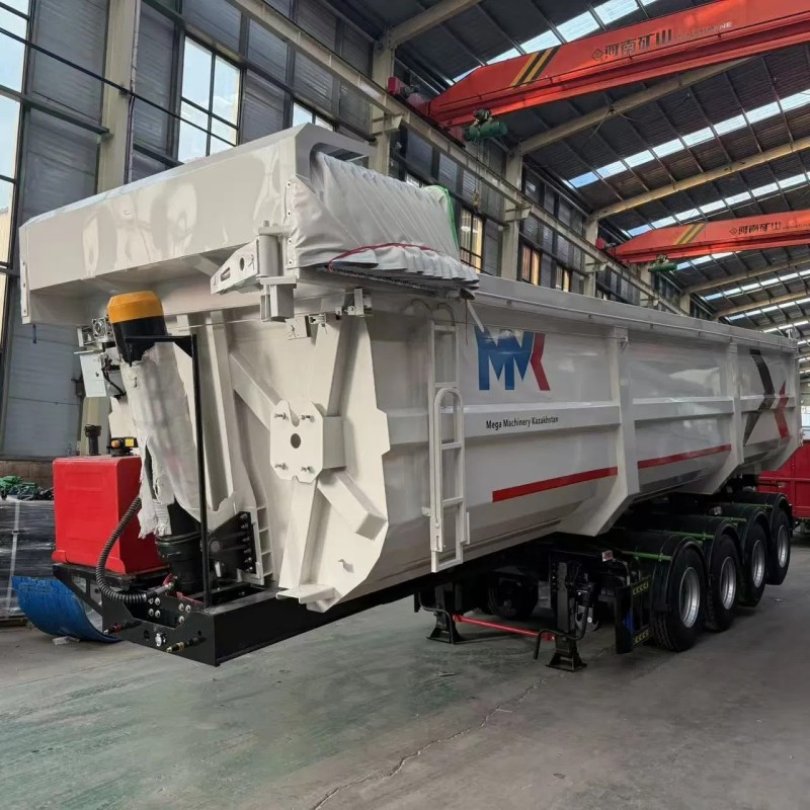

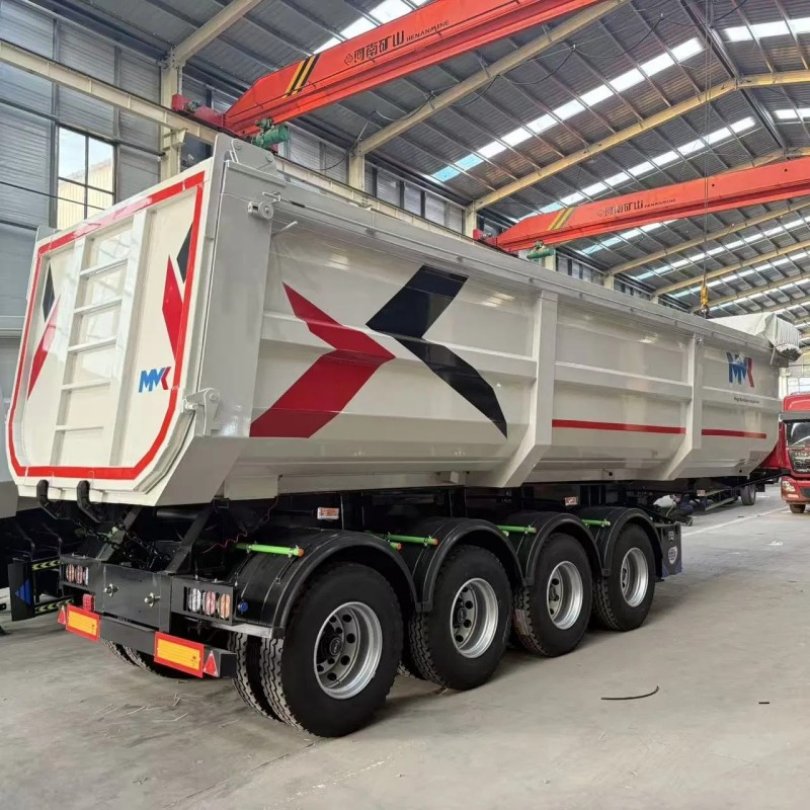

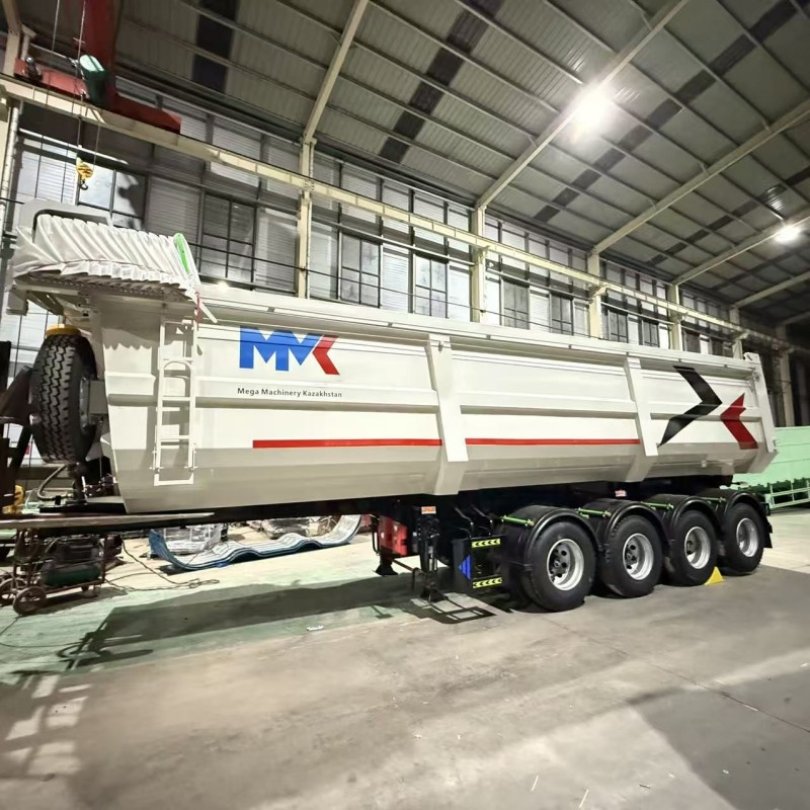

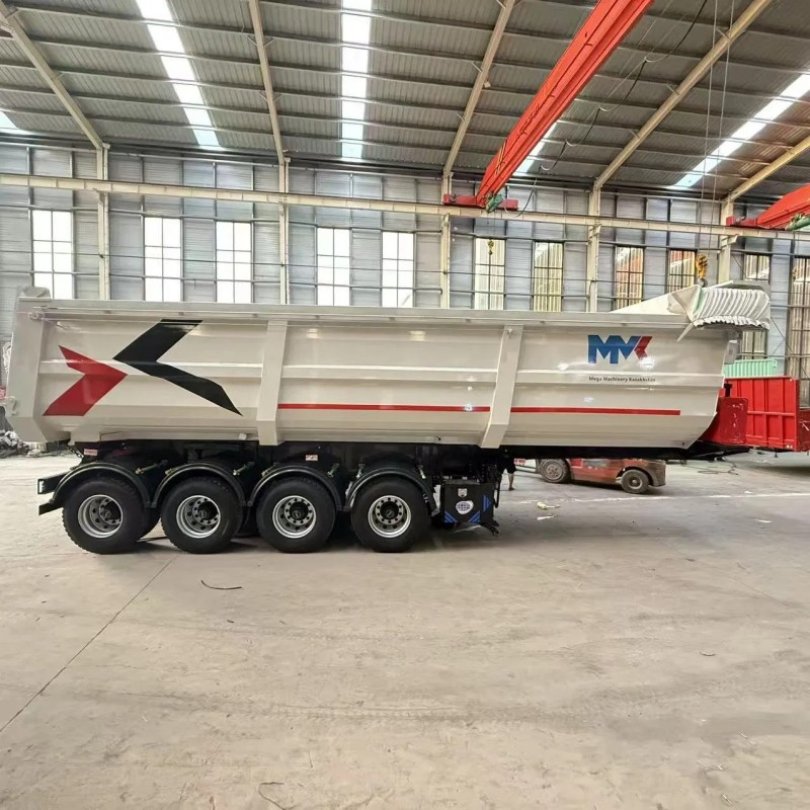

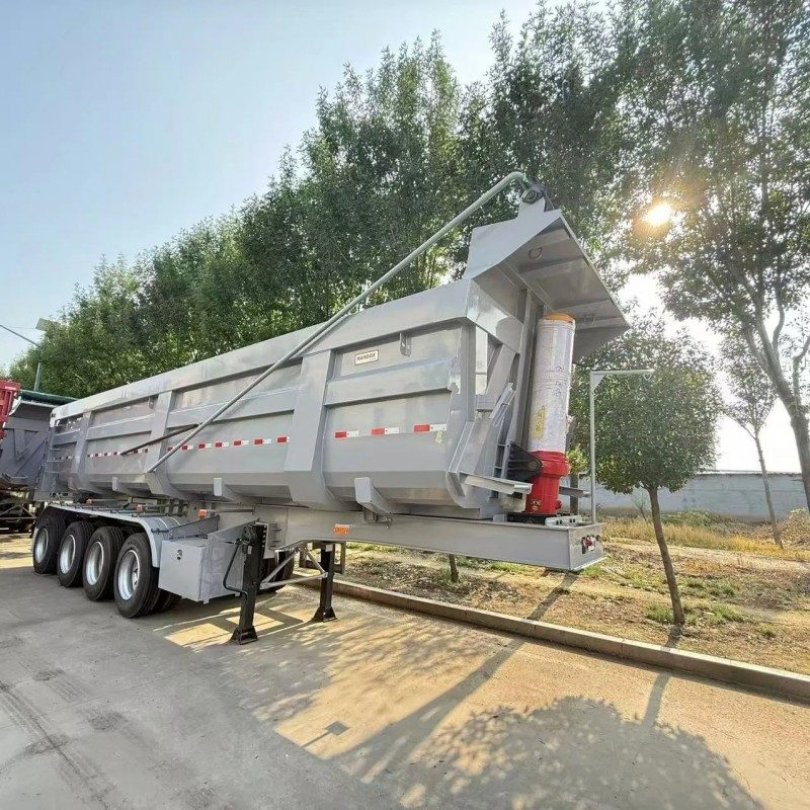

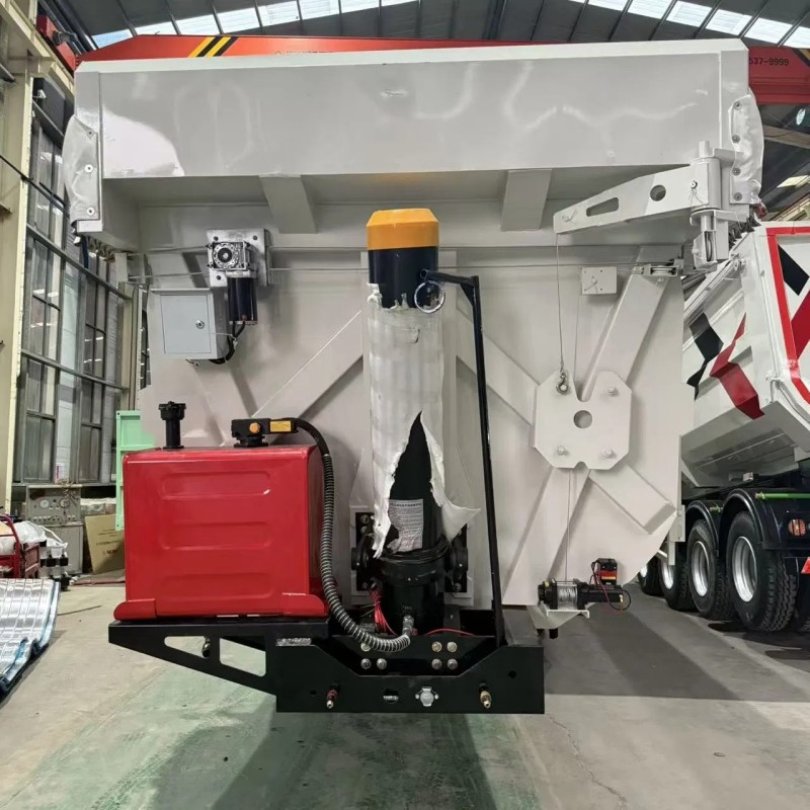

Hydralic Rear Dump Dumper Semi Trailer,
Rear-dump semi-trailers are specialized vehicles widely used in construction, mining, and transportation industries.
Person in charge: President Gu
Technical Specifications
(Custom configurations available upon request.)
Description | Hydraulic Rear Dump Semi trailer |
Brand | Shan Dong Li Fan |
Dimension(mm) | Customized |
Loading Capacity | 30-80T |
King Pin | 2"(50mm)/3.5"(90mm) |
Axle | Standard Axles or FUWA Axles |
Tire | Vacuum tire 12r22.5 or 295-60 |
Main Beam Spec | T700 Steel, Height:500mm, Plate Thickness:10-18mm |
Side wall thickness | 3-6mm |
Bottom plate thicknes | 3-8mm |
Landing Gear | 28T |
Suspension System | AIR Suspension OR Leaf Spring Suspension |
Steel leaf spring | Optional |
Dump Style | Self Dumping |
ABS | Optional |
Electronic System | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Painting | Complete chassis sand blasting to clean rust, 1coat of Environmentally anticorrosive prime, then 2 Topcoats, at last temperature baking varnish. |
MOQ | 1 Unit |
