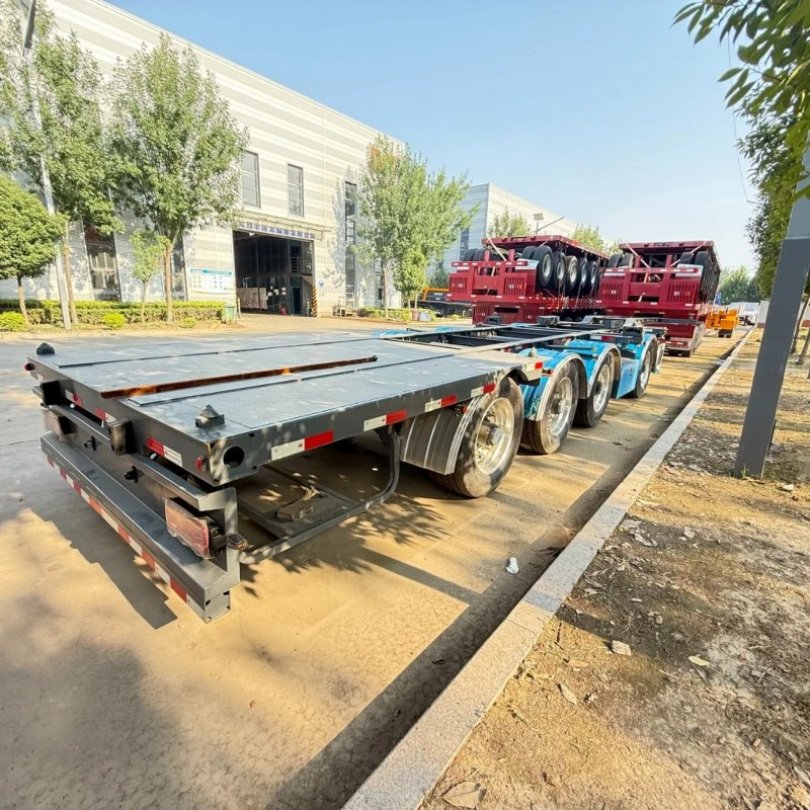

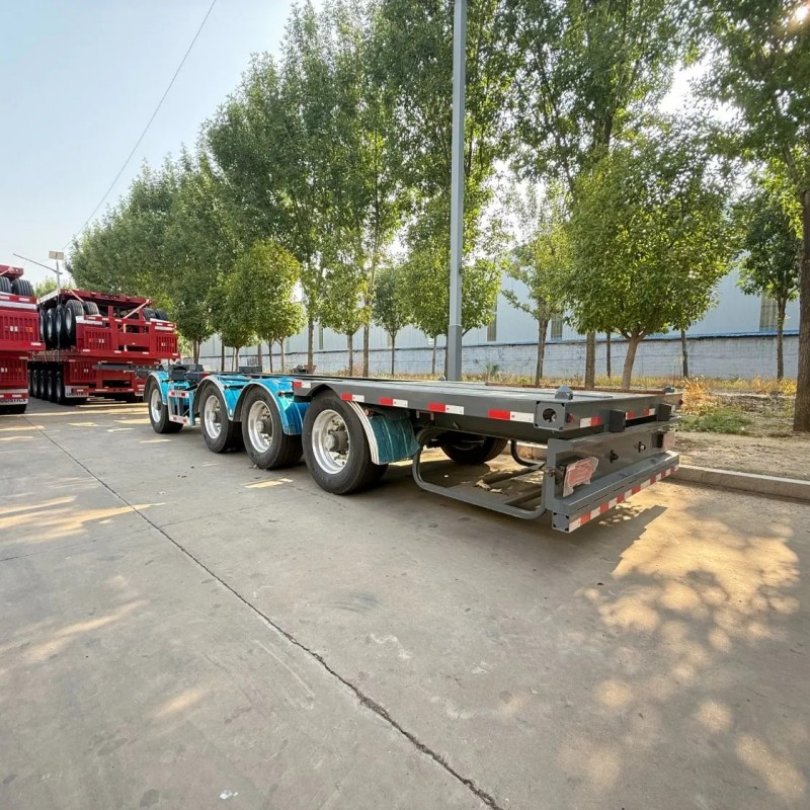

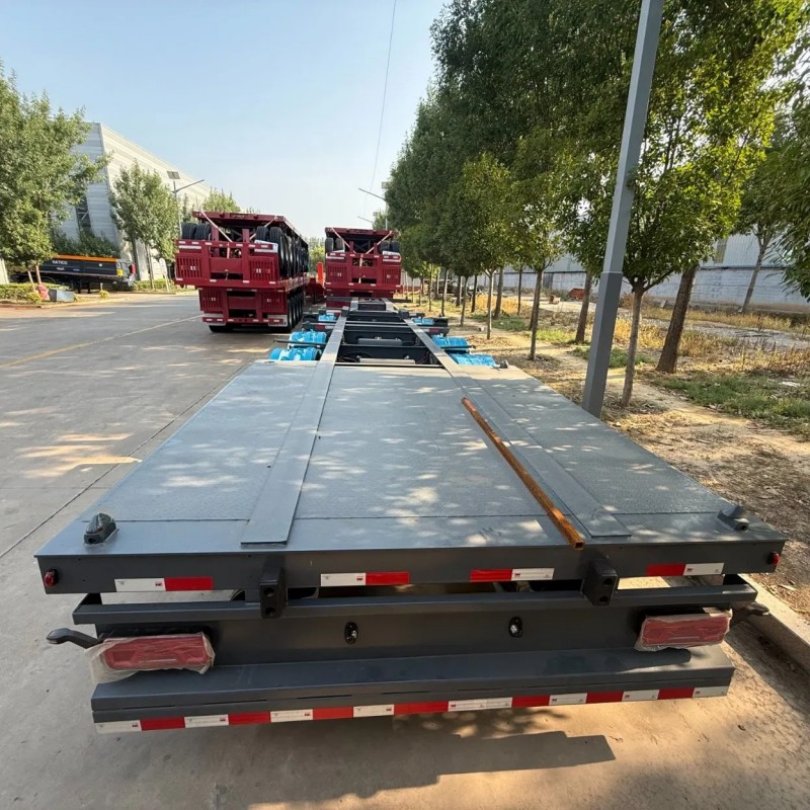

20/30/40 FT Container skeleton semi trailer
Skeleton trailers can be used to transport containers, such as ships, ports, routes, highways, transfer stations, bridges, tunnels and other logistics systems for dangerous goods tanks. The trailer body is made of high-strength steel, making it more sturdy and durable. The paint is smooth, bright and strong. Depending on your usage, you can choose the appropriate size design and load capacity from 30 to 80 tons, or you can use different axle numbers to match local restrictions
Person in charge: Jim yao
Technical Specifications
(Custom configurations available upon request.)
Product name | 20/30/40 FT Container skeleton semi trailer |
Product model | LFC9401TJZ |
Overall dimensions | 13216,13000,12450,12200,11500,11200,11000,10500,10000,9500×2550,2500×1700,1650,1600,1550,1500,1450,1400 |
Carriage dimensions | ×× |
Cross weight | 40000 |
Rated load capacity | 35400,35600,35800 |
Curb weight | 4600,4400,4200 |
The saddle bears the load | 16000 |
Front/Rear Suspension | /850,-/950,-/900,-/1000,-/1050,-/1200,-/1300,-/1100,-/1070,-/870,-/970,-/770,-/800,-/780,-/880,-/980,-/750 |
Approach/departure Angle | /32,-/29,-/30,-/28,-/27,-/23,-/22,-/25,-/26,-/31,-/35,-/34,-/36 |
Axle load | 24000(3 axles) |
anti-lock braking system | Optional |
Number of axles | 3 |
Wheel base | 4080+1310+1310,3980+1310+1310,3810+1310+1310,3710+1310+1310 |
Number of tires | 12 |
Specific of tires | 11.00R20 12PR,12R22.5 12PR |
Unloading method | N/A |
Tread | 1840 |
The number of leaf springs | /1/1/1,-/2/2/2,-/3/3/3,-/4/4/4,-/6/6/6,-/7/7/7,-/8/8/8,-/9/9/9,-/10/10/10,-/12/12/12,-/13/13/13,-/14/14/14,-/16/16/16 |
