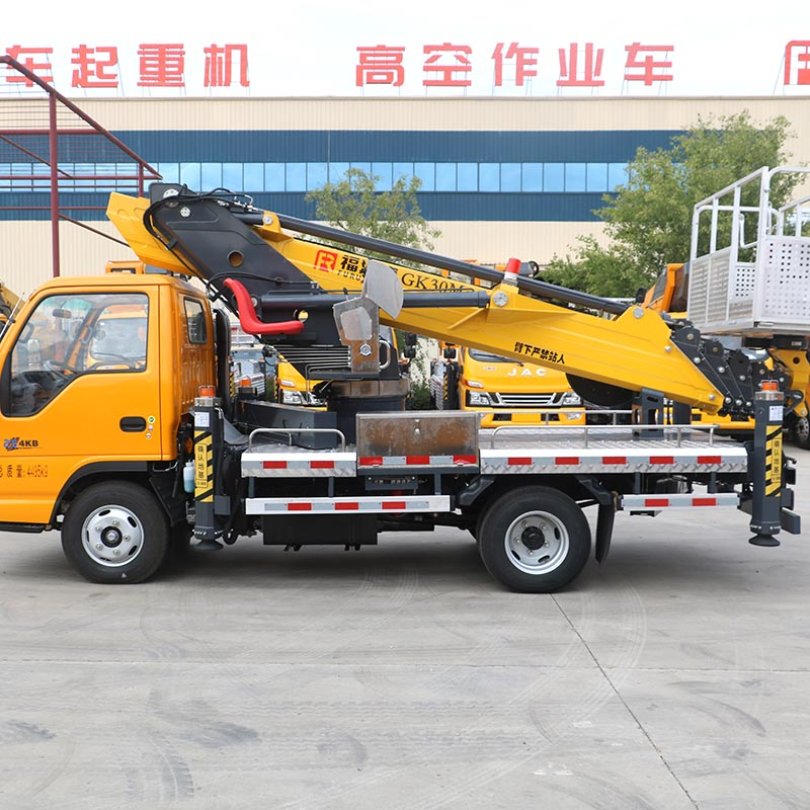

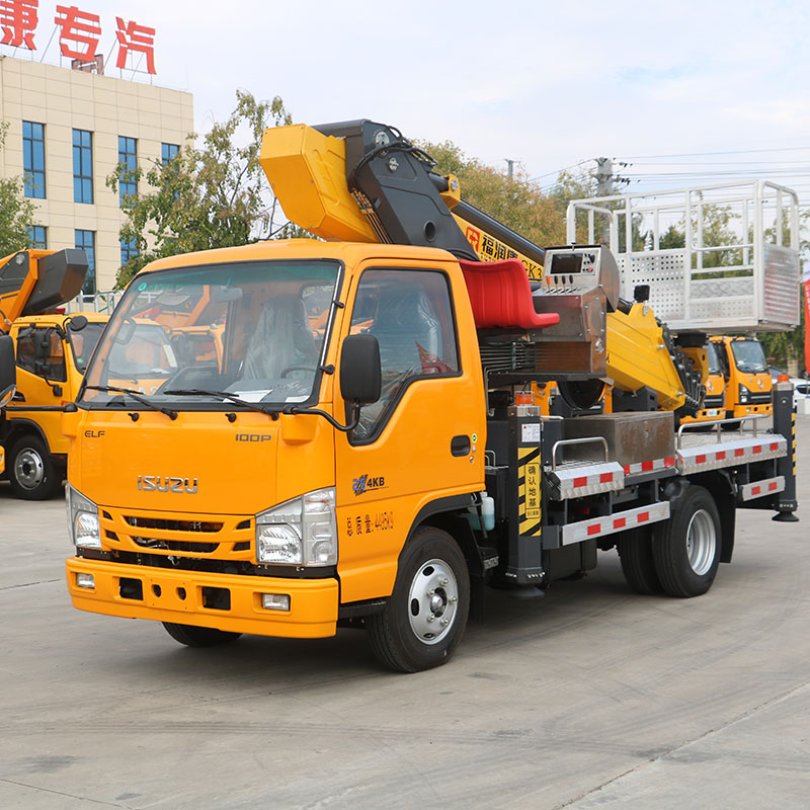

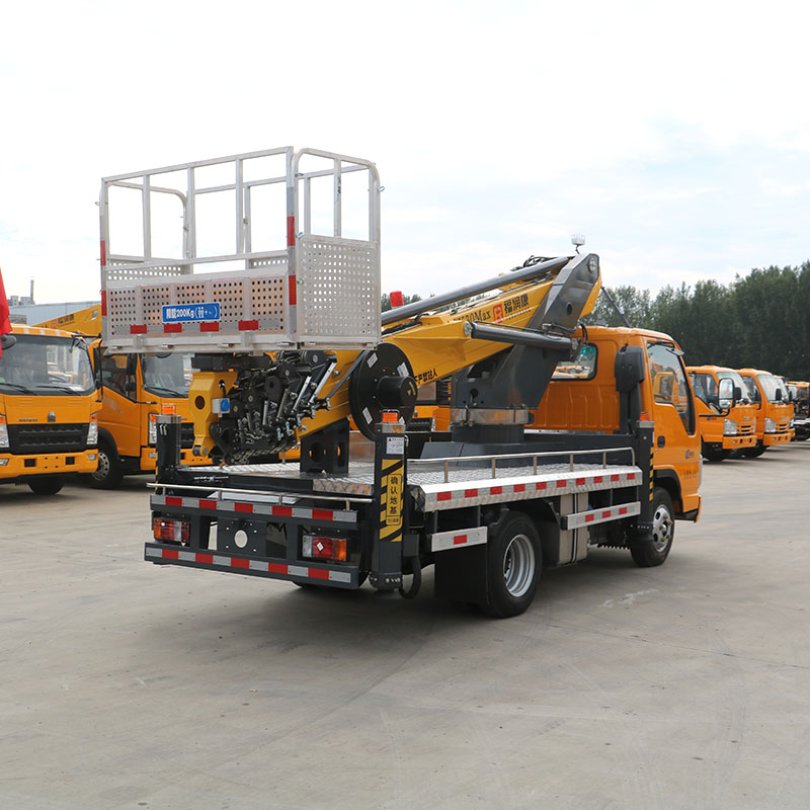

GK30MAX High-altitude Work Vehicle - Isuzu
Model: YAD5043JGKQL6 High-altitude Work Vehicle
Chassis: Isuzu 100P
Total Weight: 4495KG
Tare Weight: 4365KG
Engine: 4KB1-TCG60 Isuzu 130-horsepower engine
Transmission: Isuzu MSB 5-speed
Wheelbase: 2800mm
Overall Dimensions: 5995mm * 2000mm * 2700mm
Tires: 650R15LT
Brakes: Hydraulic brakes
Other Features: Electric windows, air conditioning, central locking
Upper Structure: GK30MAX
Maximum Working Height: 30.3 meters
Maximum Working Radius: 15 meters

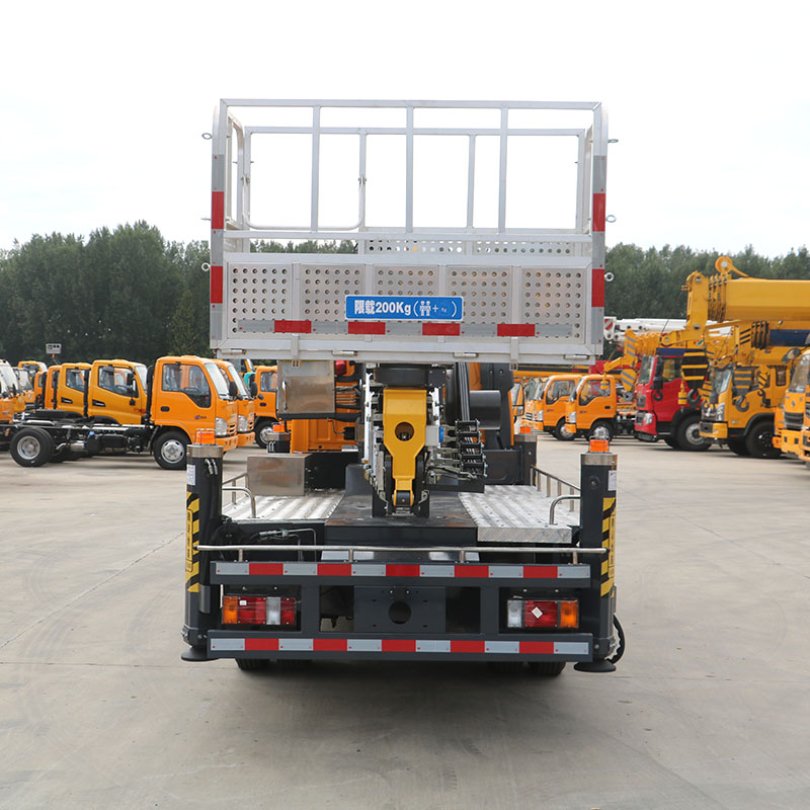

Platform Rated Load: 200KG
Lifting Arm Rotation Angle: 360 degrees
Platform Dimensions: 1600mm * 700mm * 1100mm (with load)
Platform Rotation Range: 360 degrees unlimited rotation
Leg Span: 5400mm * 5650mm
Hydraulic Legs: X-shaped legs, 4 double-section legs, individually adjustable.
Boom: 7-section boom, 6 sections synchronous extension, wire rope at the boom exit with a spare wire rope, even if the main wire rope breaks, people can be smoothly lowered
Operating System: Domestic renowned electronic control system, equipped with wireless remote controller, three-party operation.
Hydraulic System: Electro-hydraulic proportional valve, can be continuously speed-adjusted, equipped with emergency power source
Walkway Board: Steel anti-slip walkway board.
Safety Devices: Interlock between vehicle and cab, emergency power source, bidirectional hydraulic balance valve
