Item | Specification |

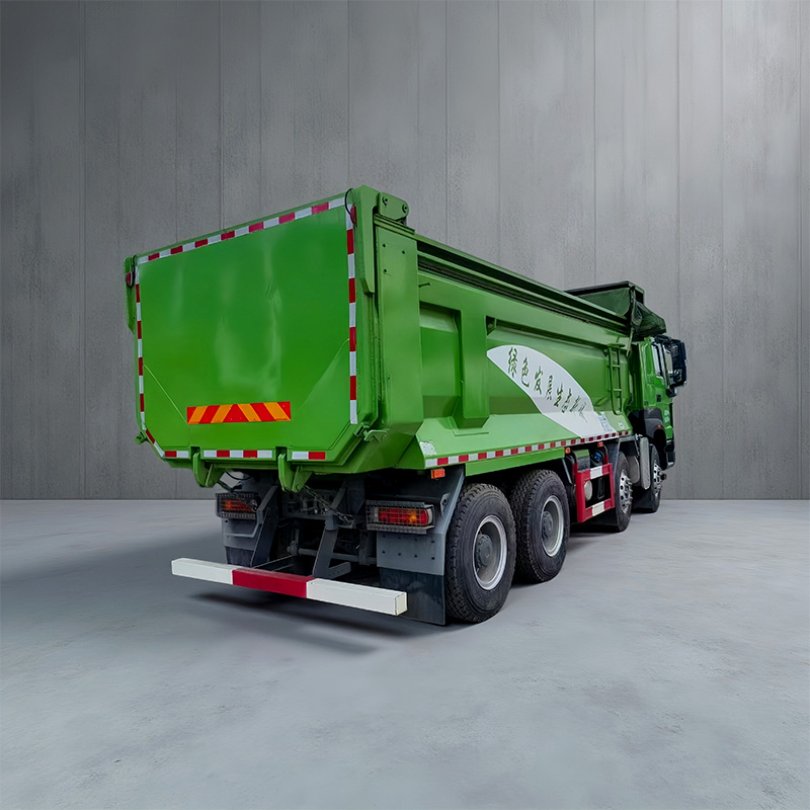

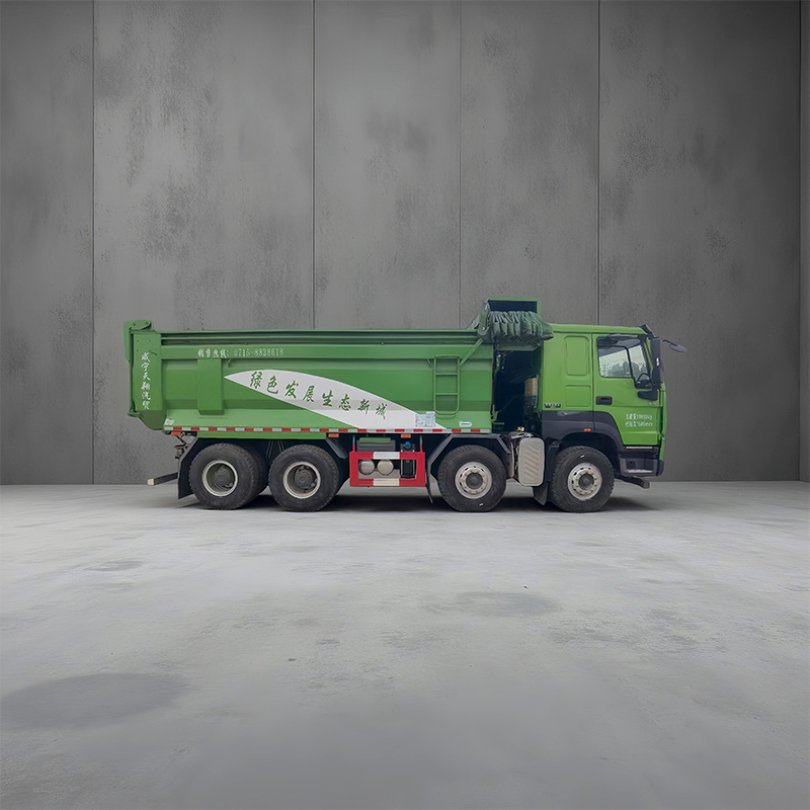

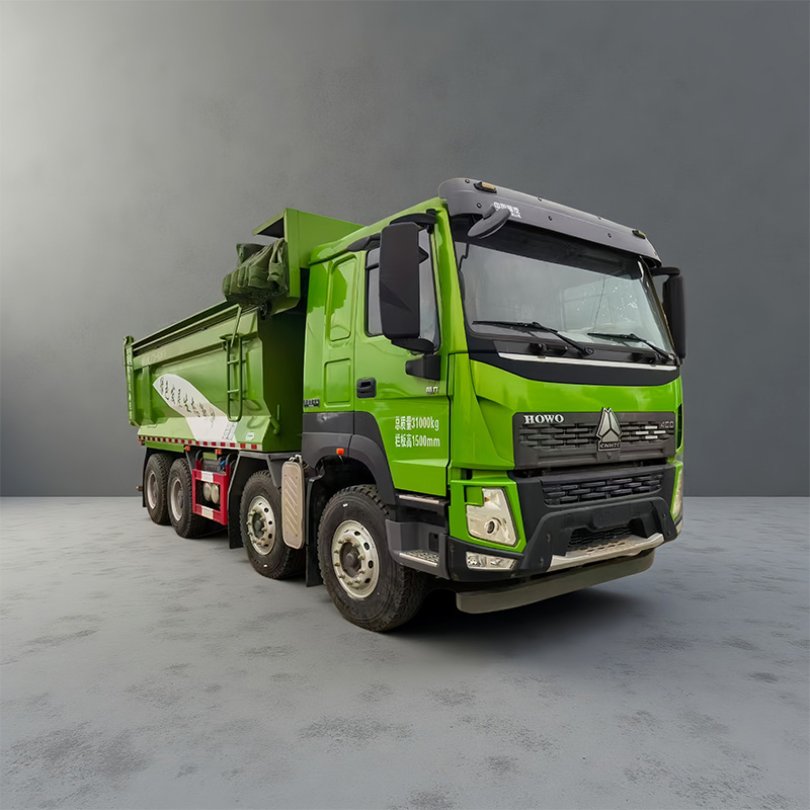

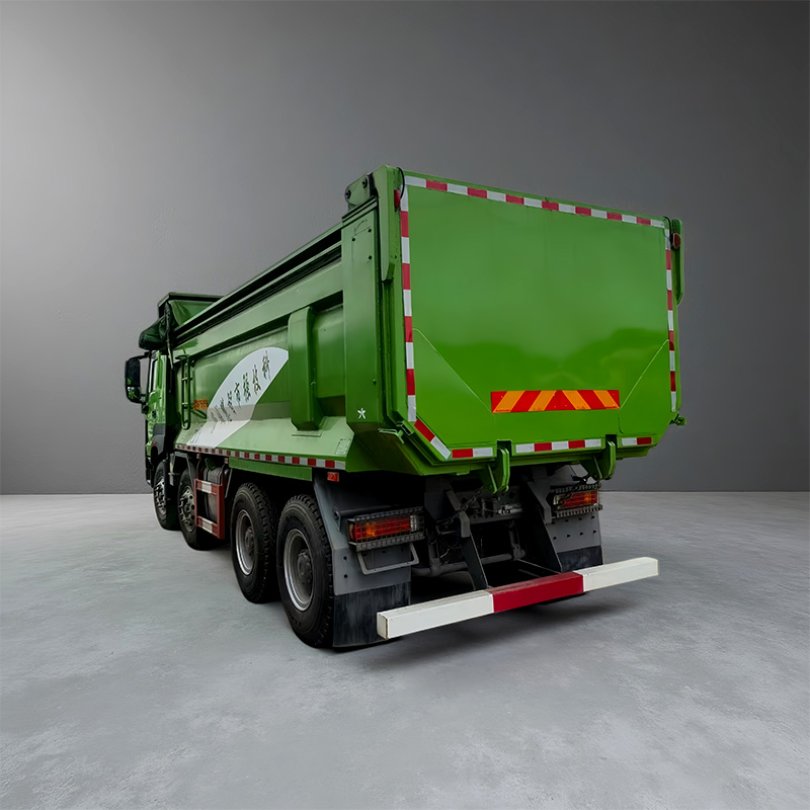

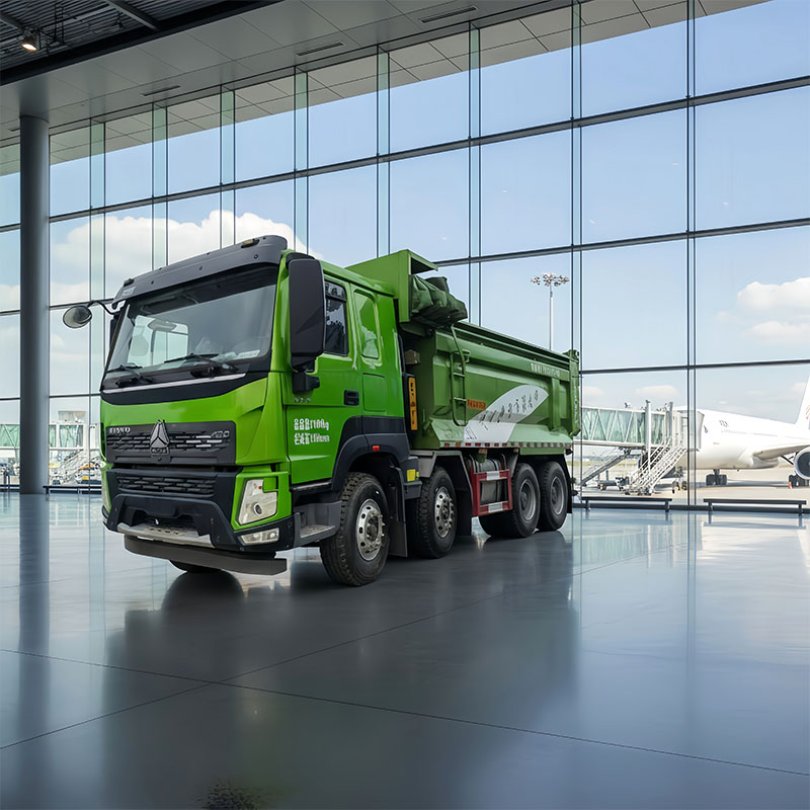

Vehicle Model | HOWO TX 8×4 (12 Wheels) Urban Muck Dump Truck / Tipper Truck |
Announcement Model | ZZ3317V426HE1 (Standard) |
Drive Type | 8×4 (Front 4 steering wheels, Rear 8 driving wheels) |
Emission Standard | Euro 5 / Euro 6 (Customizable for overseas markets) |
Steering | LHD (Left Hand Drive, standard) / RHD (Right Hand Drive, optional) |
Overall Dimension | 9600×2550×3500 mm (L×W×H, customizable) |
Wheelbase | 1800+3800+1350 mm |
Curb Weight | 15,000 kg (Standard) |
Rated Payload | 15,000 kg (China Standard) / 20,000-25,000 kg (Export Custom) |
Gross Vehicle Weight (GVW) | 31,000 kg |
Cargo Body Volume | 20m³ / 22m³ / 25m³ (Customizable) |
Item | Specification |
Engine Model | Weichai WP10H400E62 / SINOTRUK MC11.40-60 / WP12.430E62 (Optional) |
Displacement | 9.5L / 10.5L / 12L (Optional) |
Max Power | 400HP / 430HP (Customizable) |
Max Torque | 1900N·m @ 1200-1600rpm (400HP version) |
Intake Type | In-line 6-cylinder, 4-stroke, Turbocharged, Intercooled, High-pressure Common Rail |
Fuel Type | Diesel (Low-sulfur diesel compatible for urban use) |
Transmission | SINOTRUK HW12-speed Manual (12F+2R, Synchronizer) / Fast Gear 12JSD180T (Optional) |
Clutch | 430mm Diaphragm Spring Clutch |
Fuel Tank | 300L / 400L Aluminum Alloy Fuel Tank (Optional) |
1. 100% Enclosed & Environmental-friendly Design
Equipped with a fully automatic electric tarpaulin system and U-shaped anti-leakage cargo box, completely solving the problem of muck scattering and dust pollution during transportation, fully complying with urban environmental protection regulations.
2. Strong Urban Adaptability
The optimized 8×4 chassis has a smaller turning radius, flexible maneuverability, and is suitable for narrow urban roads and complex construction site conditions. The low-noise design meets urban noise restrictions.
3. High Reliability & Low Operating Cost
Adopts MAN technology chassis and Weichai/SINOTRUK mature power system, with a B10 life of 1.5 million kilometers, low failure rate, and maintenance cost only 30% of European and American brands.
4. Intelligent & Safe Configuration
Equipped with ADAS, 360° panoramic camera, lane departure warning, and other intelligent safety systems, greatly improving driving safety in urban complex traffic environments.
5. Fully Customizable
Customizable emission standards (Euro 5/6), steering (LHD/RHD), cargo box size, and configuration to meet the needs of different countries' urban construction projects.
6. Unbeatable Cost-performance
The price is only 50%-60% of European and American models of the same level, with equivalent performance, shortening the investment return cycle by 30%, and providing a one-stop export service.
7. Global Market Recognition
SINOTRUK HOWO is the No.1 Chinese heavy truck export brand, with products covering more than 110 countries and regions, and a complete overseas after-sales and spare parts supply system.
