Item | Specification |
Brand | SINOTRUK HOWO |

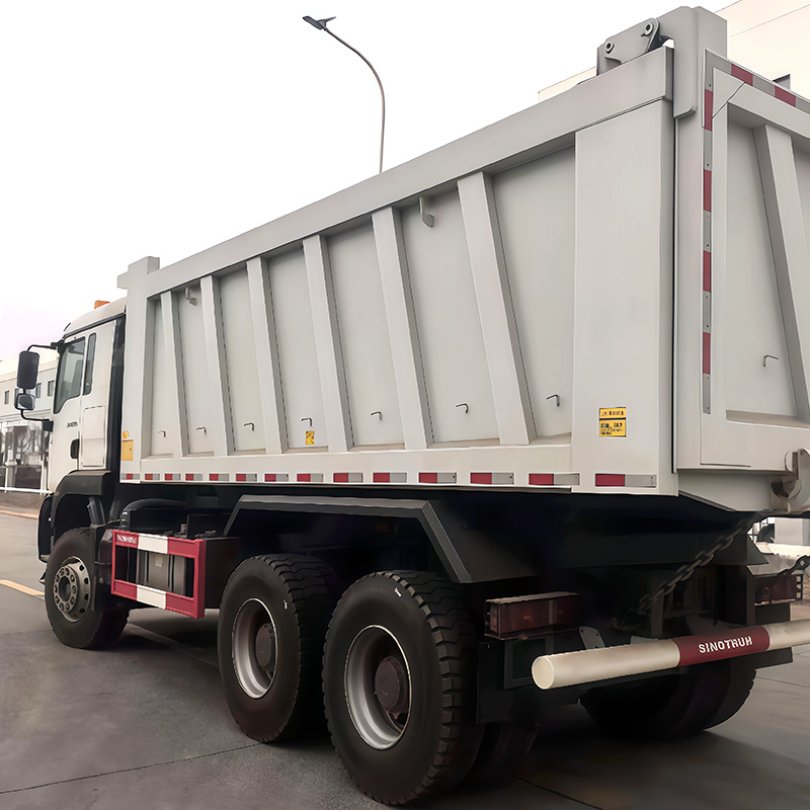

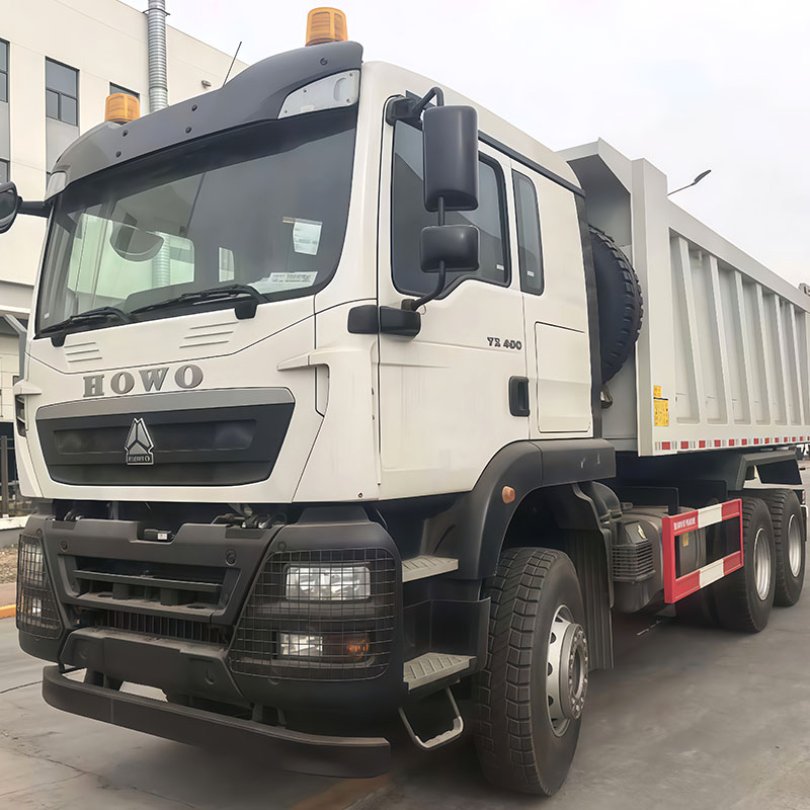

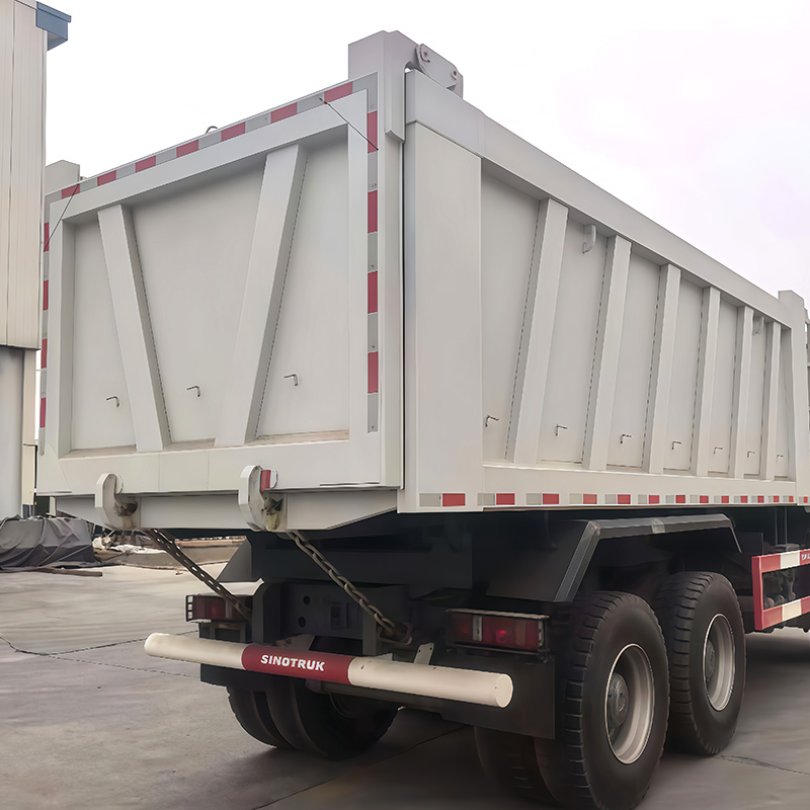

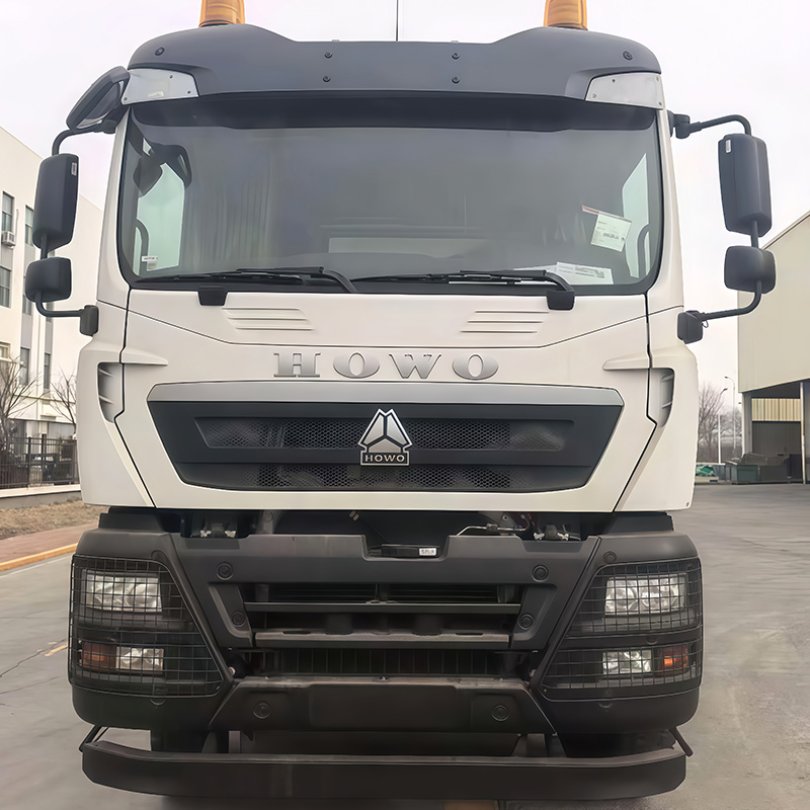

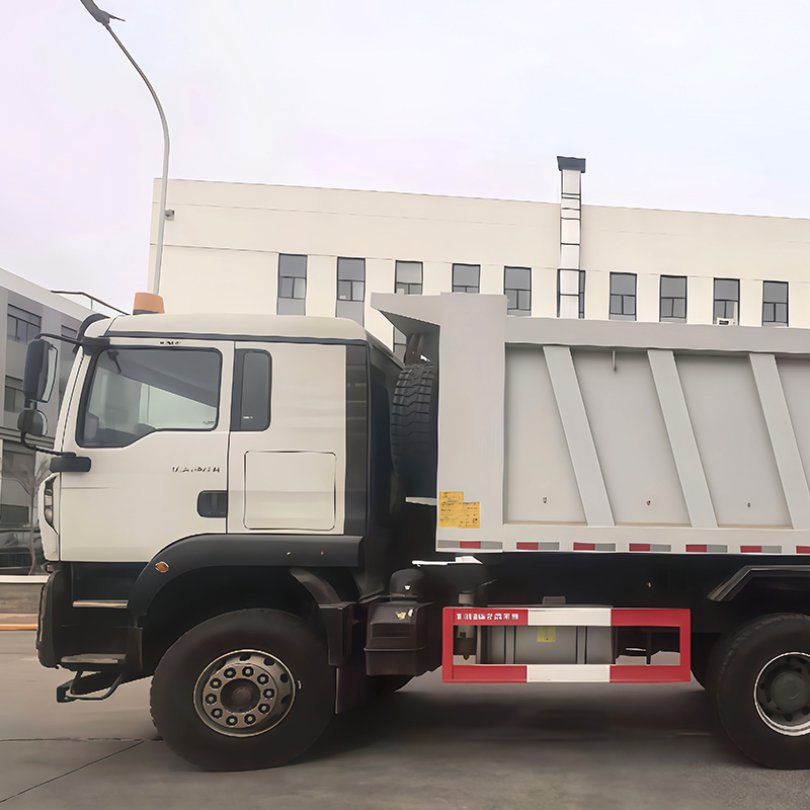

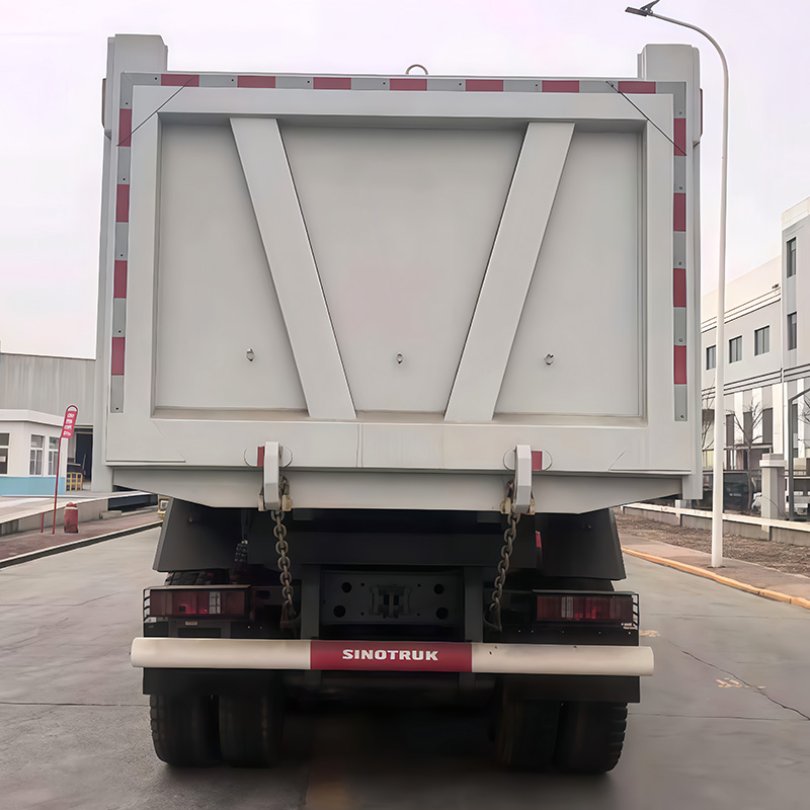

Model | HOWO TX 400 6×4 Dump Truck |
Drive Type | 6×4 (10 Wheels, Rear 2 Axles Driving) |
Emission Standard | Euro 2 / Euro 3 / Euro 5 (Optional for Global Markets) |
Overall Dimension (L×W×H) | 8600×2550×3500 mm (Customizable) |
Cargo Box Dimension (L×W×H) | 5600/6300×2300×1500 mm (U-shaped / Rectangular Optional) |
Rated Load Capacity | 25-30 Tons |
Gross Vehicle Weight | 25 Tons |
Tire Specification | 12.00R20 (10 Pieces, Heavy-duty Off-road Tire) |
Wheelbase | 3800+1350mm / 4325+1350mm (Optional) |
Item | Specification |
Engine Model | Weichai WP10H400 / MAN MC11.40-50 (Optional) |
Displacement | 10.5L |
Max Power | 400 HP (294 kW) @ 1900 rpm |
Max Torque | 1900 N·m @ 1000-1400 rpm |
Fuel Type | Diesel |
Gearbox | 12-speed Manual (HW19712CL, Heavy-duty) |
Clutch | 430mm Diaphragm Spring Clutch |
· 400HP High-torque Engine: Equipped with Weichai WP10H or MAN MC11 engine, delivering 1900N·m low-speed torque, easily conquers steep slopes, muddy roads and mine roads, perfect for heavy-load transportation of sand, stone, ore and construction waste.
· 6×4 Heavy-duty Chassis: 16-ton double-reduction rear axles + multi-leaf spring suspension, rated load up to 30 tons, stable and reliable under full load, no deformation even in long-term heavy-duty operation.
· Multi-emission Option: Euro 2/Euro 3/Euro 5 emission standards available, fully meets the requirements of Africa, Southeast Asia, Middle East and European markets, no need for complex after-treatment systems for low-emission markets, low maintenance cost.
· Rugged & Durable Design: Thickened cargo box with reinforced ribs, high-strength frame, suitable for harsh working conditions such as high temperature, dust and bumpy roads.
· Factory Direct Supply: SINOTRUK direct sales, no middleman markup, competitive price, short delivery cycle, support bulk order customization.
· Low Operating Cost: Mature engine technology, fuel consumption as low as 26L/100km under full load, low failure rate, easy maintenance, global spare parts supply.
· Wide-body Comfort Cab: Large space, air suspension seat, automatic AC, effectively reduce driver fatigue during long-distance transportation.
· Comprehensive Safety System: ABS anti-lock braking system, airbag, reverse radar, thickened bumper, fully protect driver safety.
· Flexible Customization: Cargo box size, color, hydraulic system, tire specification, emission standard can be customized according to customer needs.
· Global After-sales Service: 12-month/50,000km warranty, 24/7 online technical support, overseas service stations in major markets, timely maintenance.
