Item | Specification |

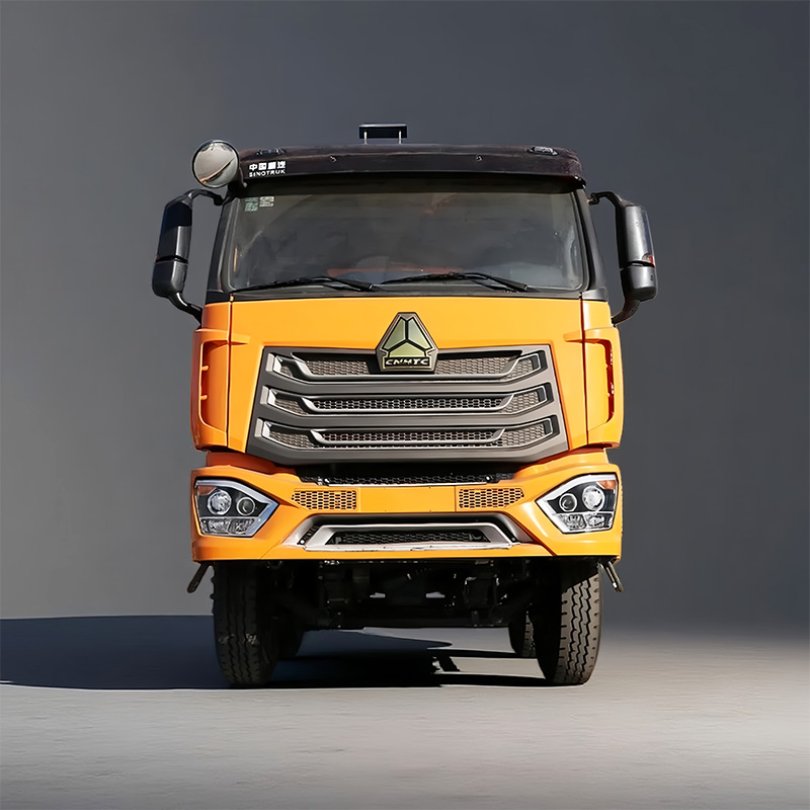

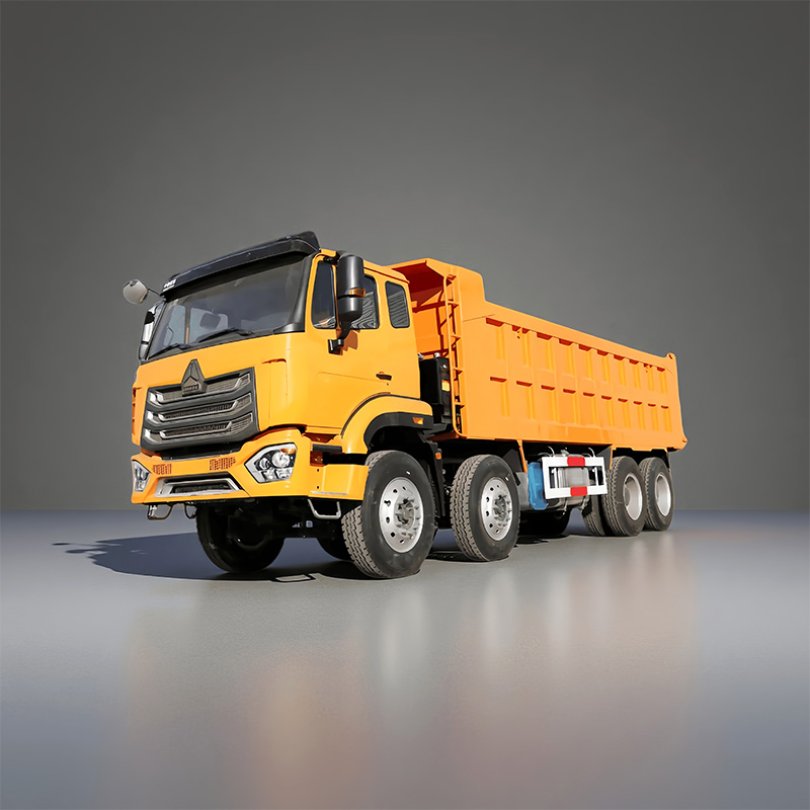

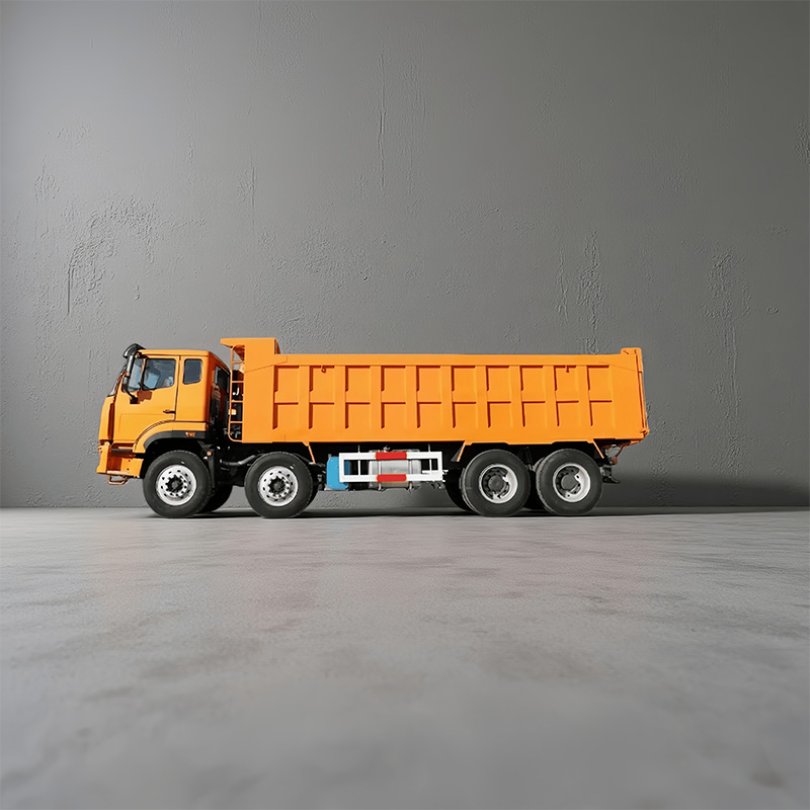

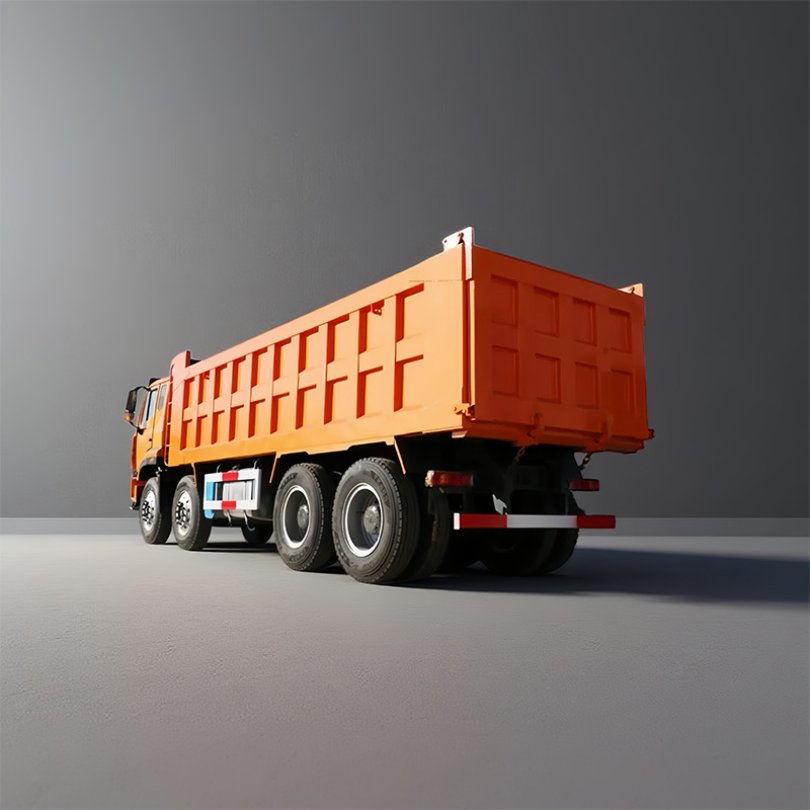

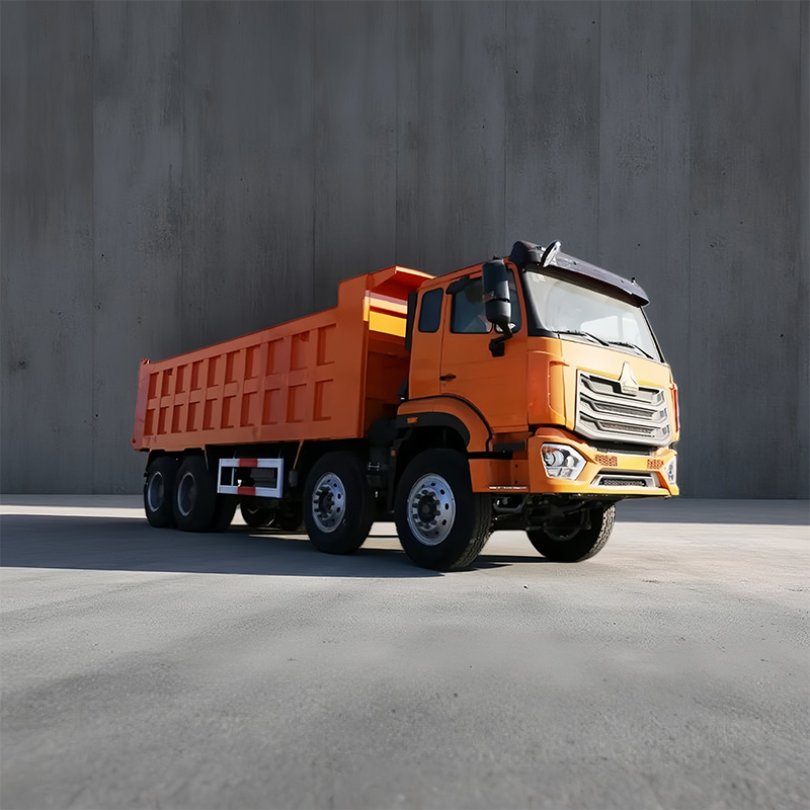

Vehicle Model | HOWO NX 8×4 (12 Wheels) Dump Truck / Tipper Truck |
Announcement Model | ZZ3317V306HE1 (Standard) |
Drive Type | 8×4 (Front 4 steering wheels, Rear 8 driving wheels) |
Emission Standard | Euro 2 / Euro 3 / Euro 5 / Euro 6 (Customizable) |
Steering | LHD (Left Hand Drive, standard) / RHD (Right Hand Drive, optional) |
Overall Dimension | 9800×2550×3550 mm (L×W×H, customizable) |
Wheelbase | 1800+4000+1350 mm |
Curb Weight | 14,800 kg (Standard) / 15,800 kg (Heavy Duty Mining Version) |
Rated Payload | 15,500 kg (China Standard) / 25,000-35,000 kg (Export Custom) |
Gross Vehicle Weight (GVW) | 31,000 kg (Standard) / 40,000 kg (Heavy Duty) |
Cargo Body Volume | 22m³ / 25m³ / 30m³ / 35m³ (Customizable) |
Item | Specification |
Engine Model | Weichai WP12.430E62 / SINOTRUK MC11.40-60 / WP13.460E62 (Optional) |
Displacement | 10.5L / 12L / 13L (Optional) |
Max Power | 400HP / 430HP / 460HP (Customizable) |
Max Torque | 2100N·m @ 1200-1600rpm (430HP version) |
Intake Type | In-line 6-cylinder, 4-stroke, Turbocharged, Intercooled, High-pressure Common Rail |
Fuel Type | Diesel (High sulfur fuel compatible for Africa/Middle East) |
Transmission | SINOTRUK HW19712 12-speed Manual (12F+2R, Synchronizer) / Fast Gear 12JSD200T (Optional) |
Clutch | 430mm Diaphragm Spring Clutch |
Fuel Tank | 300L / 400L / 600L Aluminum Alloy Fuel Tank (Optional) |
Battery | 2×12V 165Ah Maintenance-free Battery |
Item | Specification |
Front Axle | 7.5T×2 MAN Technology Drum Brake Front Axle |
Rear Axle | 16T×2 MAN Technology Wheel Reduction Double Axle (with Differential Lock, Inter-axle Lock) |
Final Drive Ratio | 5.286 (Mining Version) / 4.77 (Highway Version, Optional) |
Frame | 300×80×8mm High Strength Steel I-beam, Double-layer Riveted Structure |
Suspension | Multi-leaf Steel Spring (Front 10 / Rear 14, 16-leaf Heavy Duty Optional) |
Tire Specification | 12.00R20 18PR All-steel Radial Tire (12.00R24 Optional) |
Brake System | Full Air Drum Brake, ABS+ASR, Spring Parking Brake |
Steering System | Hydraulic Power Steering, Adjustable Steering Wheel |
Item | Specification |
Cab Model | HOWO NX High Roof Cab (MAN TGS Cab Body) |
Safety Design | Cab Crash Recoil Technology, High Strength Steel Structure, 4-point Fully Floating Suspension |
Seat | Air Suspension Driver Seat, Mechanical Passenger Seat |
Comfort Configuration | Multi-function Steering Wheel, Automatic Air Conditioner, Cruise Control, Air Horn |
Vision Configuration | Electric Rearview Mirror with Heating, Blind Spot Window, Reverse Radar |
Optional Configuration | 10.25-inch Central Control Screen, 360° Panoramic Camera, ADAS System, 220V On-board Power |
Exterior Color | Orange / White / Red / Yellow (Customizable) |
1. Ultra-high Load Capacity
The 8×4 configuration with a GVW of 31 tons (up to 40 tons for heavy-duty versions), combined with rear double wheel-reduction axles and multi-leaf spring suspension, perfectly adapts to extreme heavy-load working conditions such as mining and long-distance sand and gravel transportation, with a load capacity far exceeding that of similar models.
2. Full-condition Adaptability
Compatible with high-sulfur diesel, suitable for poor fuel environments in Africa, the Middle East, Southeast Asia and other regions
MAN technology chassis + classic Weichai/SINOTRUK power, durable and reliable, easily coping with harsh working conditions such as unpaved roads, steep slopes and high temperatures
Optional Euro 2 mechanical pump engine version, no complex after-treatment, extremely low failure rate, zero maintenance threshold
3. High Reliability & Low Operating Cost
HOWO has a global ownership of over 1 million units, with a complete global parts network, and maintenance costs are only 30% of European and American brands
B10 life of core components reaches 1.5 million kilometers, with an annual attendance rate of over 95%
Excellent fuel economy, 5%-8% lower fuel consumption per 100km than similar models, greatly reducing operating costs
4. Fully Customizable for All Scenarios
Customizable emission standards (Euro 2/3/5/6), steering (LHD/RHD), cargo box size and power configuration according to target market regulations
Support multi-scenario customization such as mining reinforced version, urban construction muck version, highway transportation version to meet different customer needs
Customizable appearance color and configuration to adapt to local market aesthetics and usage habits
5. Unbeatable Cost-performance
The price is only 50%-60% of European and American models of the same level, with completely equivalent performance, shortening the investment return cycle by 30%
One-stop export service: full coverage of customs declaration, commodity inspection, sea transportation, insurance and overseas technical training
1-year/100,000km global warranty, 7×24-hour response from overseas after-sales team, no worries
6. Global Market Recognition
SINOTRUK HOWO is the No.1 Chinese heavy truck export brand, ranking first in China's heavy truck export sales for 18 consecutive years, with products covering more than 110 countries and regions around the world, and is the first choice for overseas engineering transportation.
