Project：Core Parameters

Drive Type：6×4 (rear eight wheels)

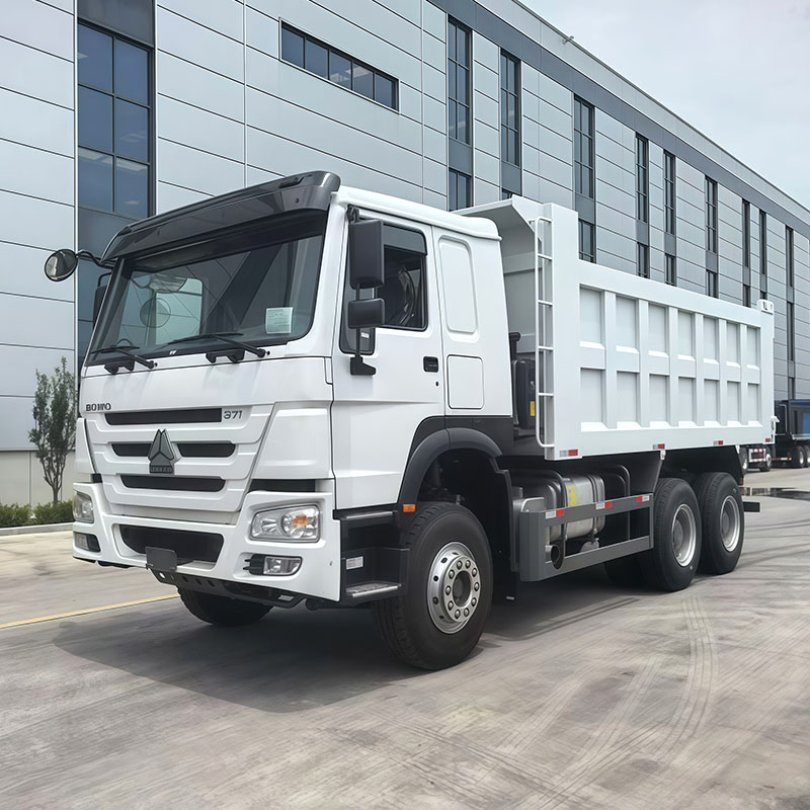

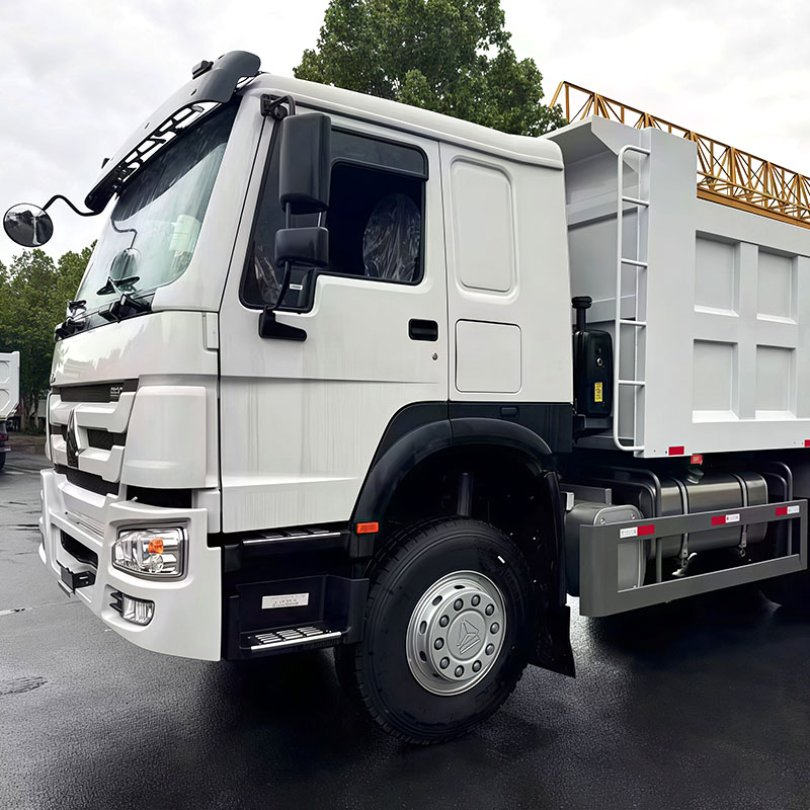

Cab：HOWO 7 series wide-body cab, four-point suspension structure, single berth

Overall Dimensions：Approximately 8500×2490×3450 mm (customizable)

Total Weight：25,000 kg

Rated Load Capacity：15,000 kg (adjustable according to regulations)

Axle Distance：3825 + 1350 mm

Front/Rear Wheelbase：2022 mm / 1830 mm

Approach Angle / Departure Angle：28° / 25°

Minimum Ground Clearance：≥260 mm

Project：Core Parameters

Engine：Weichai WP10.371 (Available in: National III / European II / European V)

Maximum Power：276 kW (371 HP) @ 2200 rpm

Maximum Torque：1500 N·m @ 1200–1600 rpm

Transmission：Fastrat 10JS180 10-speed manual transmission

Clutch：430mm diaphragm spring clutch

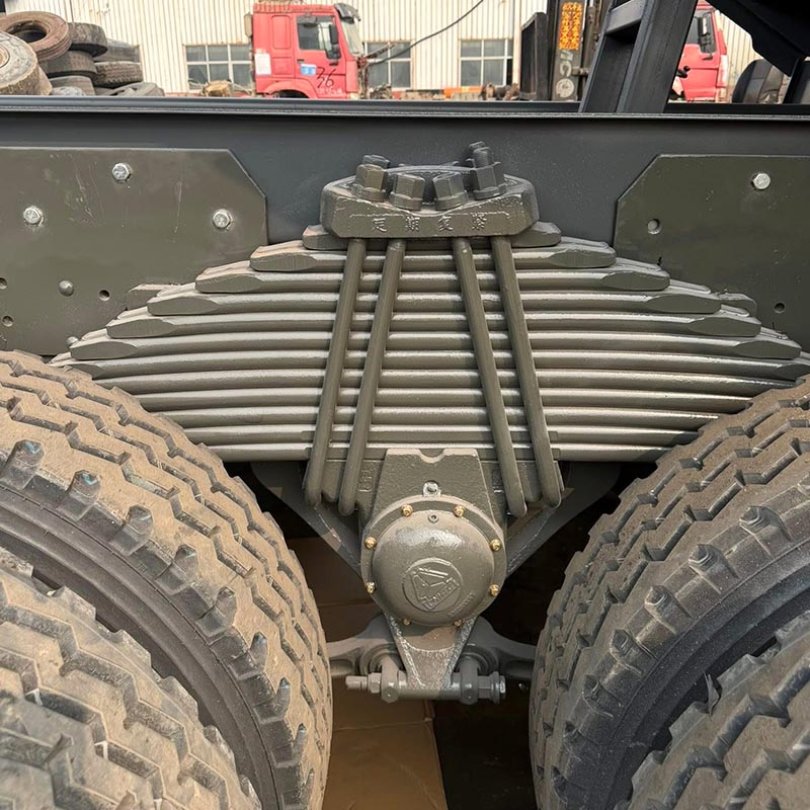

Rear Axle：16-ton wheel-mounted reduction gear (STR axle), Ratio 5.73 (Optional 6.72)

Front Axle：7-ton drum axle

Tire Specifications：12.00R20 steel cord tire, 1 spare tire

Brake System：Dual circuit pneumatic braking, ABS anti-lock system, exhaust braking

Steering System：Hydraulic power-assisted steering

Fuel Tank Capacity：300 L (Optional dual fuel tanks)

Project：Core Parameters

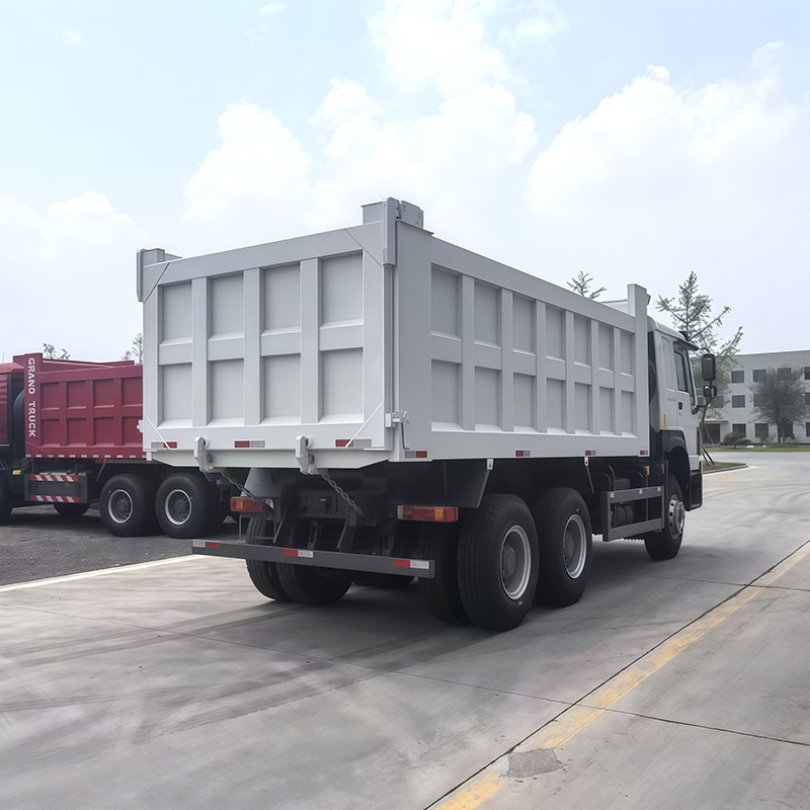

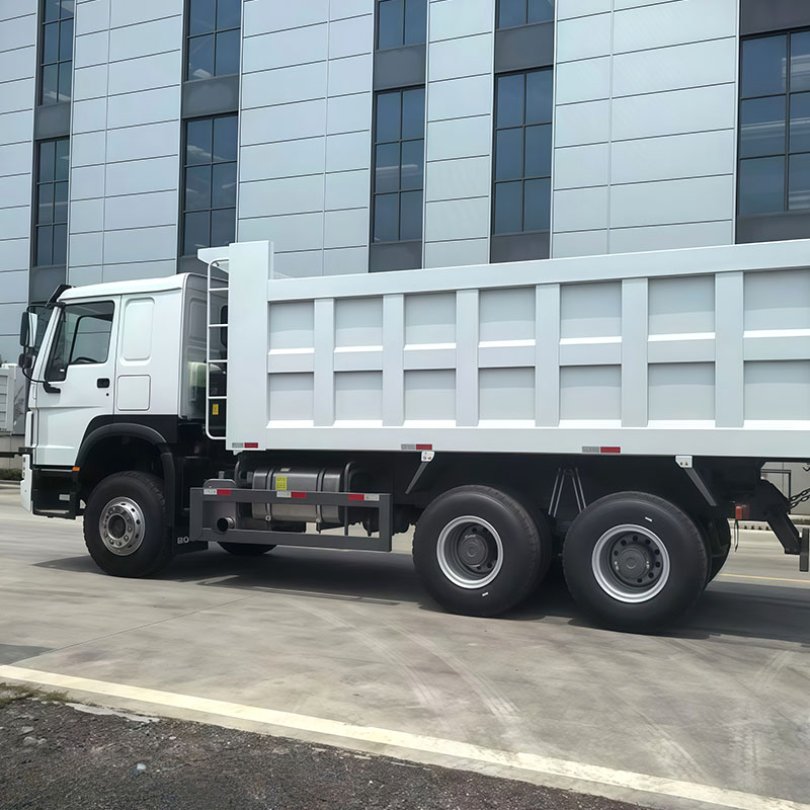

Truck body type：Reversible box-type dump truck

Typical dimensions：5600×2300×1500 mm (Length can be customized from 5.2 to 7.6 meters)

Volume：Approximately 19.3 m³

Material：High-strength wear-resistant steel (Q345/NM450)

Plate thickness：Bottom plate 12 mm, side plates 10 mm (Can be strengthened to bottom 16 / side 12)

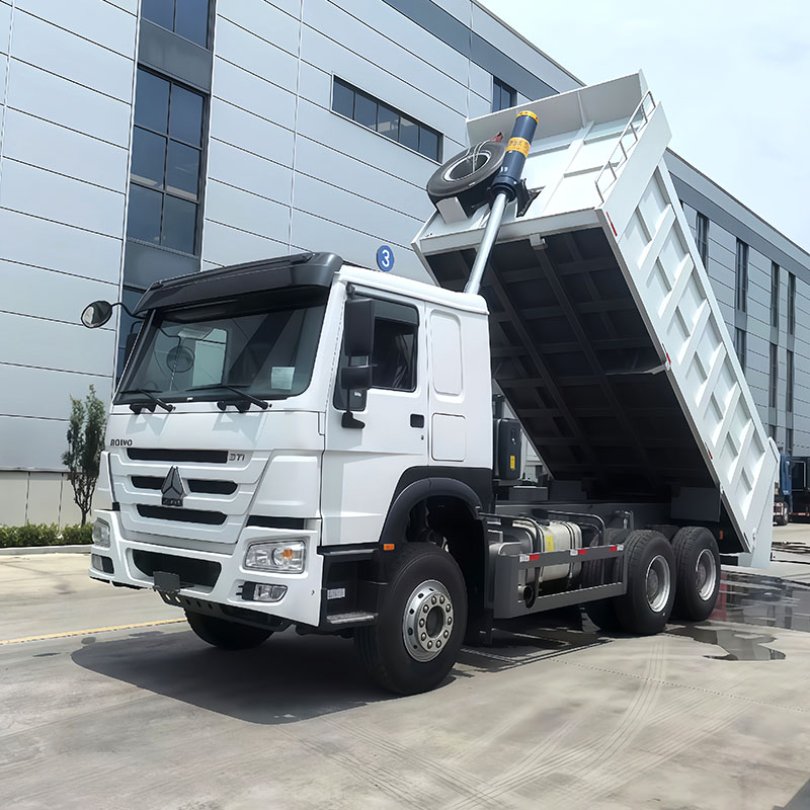

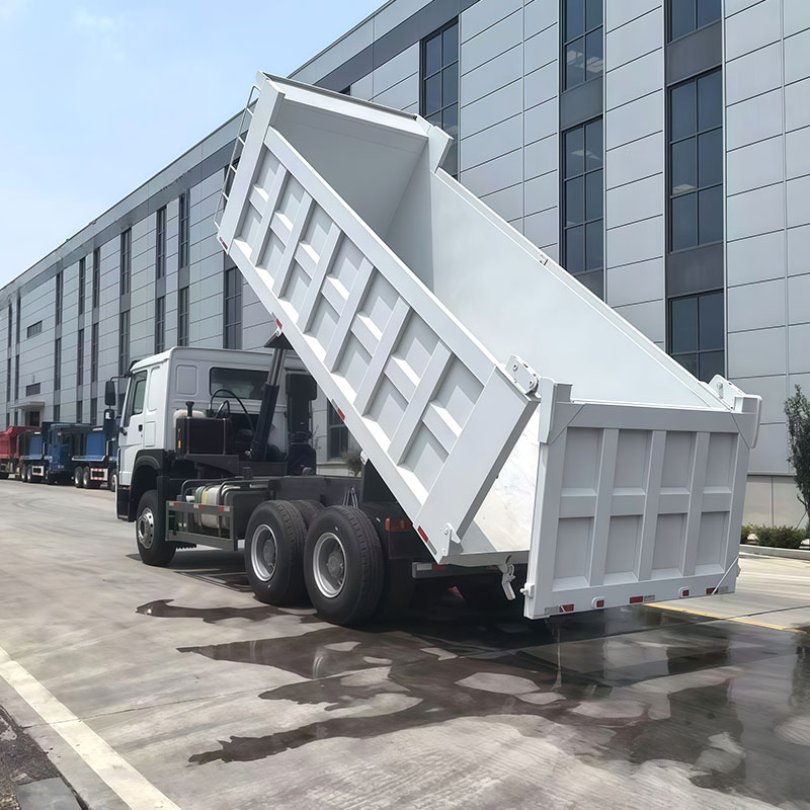

Lifting system：Pre-mounted top cylinder (Hyundai / Domestic), lifting angle ≥ 48°

Additional configurations：Back door hook, side protection / rear protection device, electric tarpaulin (optional)

Comfort and safety features

Cab: Mechanical shock-absorbing seats, power windows, central locking, air conditioning, radio, sun visors

Safety: High-strength cab anti-roll structure, ABS anti-lock system, automatic brake clearance adjustment arm, seat belts

Optional features: Airbag shock-absorbing seats, rearview camera, right blind spot camera, GPS positioning, retarder

Export compatibility features

Emission versions： Different emission versions such as Euro II / Euro III / Euro V can be provided according to the target market

Steering type： Left-hand drive / Right-hand drive can be customized

Paint color： White， red， yellow， green and other colors are available
